Expansion tanks are essential for closed-loop heating systems, like residential and commercial boilers. They help manage the pressure changes that occur when water heats and expands, preventing leaks, system damage, and even burst pipes. By maintaining safe and efficient operation, expansion tanks protect your heating system and extend its lifespan.
In this guide, we’ll explain what expansion tanks do, why they’re important, and how to determine the right size for your system. We’ll also review five top-rated Zilmet tanks, highlighting key features and benefits to help you choose the best option for your specific heating setup.
What is an Expansion Tank?
An expansion tank, also called an expansion vessel, is a small tank that helps absorb the excess pressure created when water heats up and expands in a closed-loop heating system.
It typically consists of a bladder or diaphragm that separates the water from a pocket of air. As the water heats and expands, it pushes against the bladder, compressing the air and preventing the pressure in the system from rising to dangerous levels.
Why Are Expansion Tanks Beneficial and Needed?
Expansion tanks are crucial for several reasons. They help regulate the pressure in your boiler system, extend the life of your boiler, increase the safety of your system, and enhance the safety of your boiler.
Pressure Regulation
They prevent excessive pressure buildup, which can damage pipes, valves, and other components of the heating system, ensuring the system operates safely and efficiently. By regulating pressure, they also help to reduce the risk of leaks or costly repairs caused by undue stress on the system.
System Longevity
By managing pressure fluctuations caused by the expansion and contraction of water as it heats and cools, expansion tanks play a crucial role in maintaining the stability of the system. This not only prevents potential damage to the pipes and components but also helps extend the overall lifespan of the heating system, ensuring it operates efficiently for years to come.
Safety
They significantly reduce the risk of pressure-related accidents, such as burst pipes or boiler explosions, by maintaining consistent pressure levels and preventing dangerous buildups that could lead to catastrophic failures in the system.
Efficiency
Proper pressure management is essential for ensuring that the heating system operates efficiently. By maintaining the correct pressure levels, the system can work at its optimal performance, preventing unnecessary strain on components. This not only reduces energy consumption but also lowers overall operating costs, extending the lifespan of the equipment and minimizing the need for repairs.
When is an Expansion Tank Necessary?
An expansion tank is needed in any closed-loop heating system where water is heated and expands. This includes systems with boilers, water heaters, and radiant heating setups. If you notice frequent pressure relief valve discharges, fluctuating system pressure, or water hammer noises, it may indicate the need for an expansion tank.
How to Calculate the Size of an Expansion Tank
To determine the appropriate size of an expansion tank, you need to consider the following factors:
- System Volume: The total volume of water in the heating system, which includes the boiler, connecting pipes, and radiators, plays a crucial role in ensuring efficient operation. This volume determines how effectively heat is distributed throughout the system and impacts overall performance.
- Temperature Differential: The difference between the system's cold start temperature, which is the temperature at which the system begins operating from an idle or powered-off state, and its maximum operating temperature, which is the highest temperature the system can handle while functioning safely and efficiently.
- Initial Pressure: The pressure in the system when it is cold refers to the initial pressure levels measured before the system begins to heat up or operate. Cold pressure is an important factor, as it helps ensure the system is functioning within safe and optimal conditions before any thermal expansion occurs.
- Final Pressure: The maximum allowable pressure in the system refers to the highest-pressure level that the system can safely handle without risking damage or failure to its components or compromising its functionality.
Using these factors, you can use an expansion tank sizing calculator or refer to manufacturer sizing charts to select the appropriate tank size.
Recommended Expansion Tanks
Zilmet is a well-known and trusted brand in the industry, recognized for its high-quality and reliable expansion tanks that cater to a wide range of applications. With decades of experience, they have built a strong reputation for delivering durable and efficient products designed to meet the needs of both residential and industrial systems.
ZHT80 21.1 Gal Cal Pro Hydronic Expansion Tank
- Large Capacity: The ZHT80 expansion tank has a 21.1-gallon capacity making it ideal for large residential or commercial systems.
- Connection: The ZHT80 is equipped with a 3/4" NPT connection, making it compatible with a wide range of industrial and plumbing applications. This standardized connection ensures a secure and reliable fit for optimal performance.
- Durable Construction: This expansion tank is constructed from high-quality carbon steel, designed to withstand demanding conditions. It features a durable epoxy-polyester coating that provides excellent resistance to corrosion, wear, and environmental damage, ensuring reliable, long-lasting performance for a wide range of applications.
- Clean Design: The seamless diaphragm design ensures a smooth surface that prevents sediment buildup, reducing the risk of bacterial growth and maintaining a higher level of cleanliness and hygiene over time.
ZHT50F 13.2 Gal Hydronic Tank
- Capacity: The ZHT50 is a 13.2-gallon expansion tank that is ideal for medium-sized systems.
- Connection: The expansion tank is equipped with a 3/4" NPT connection, allowing for secure and reliable integration into various plumbing and heating systems.
- Construction: The tank's synthetic SBR rubber diaphragm and MIG-welded construction ensure exceptional durability by eliminating rough spots and sharp edges that could lead to wear and tear over time. This design not only increases the tank's lifespan but also provides reliable performance under demanding conditions.
- Design: The Zilmet ZHT50F is designed with sturdy feet, ensuring stable floor mounting for secure and reliable installation. This feature makes it ideal for both residential and commercial applications, providing peace of mind that the unit will remain in place even during extended use.
ZEP18 6.3 Gal Easy Pro Thermal Expansion Tank
- Capacity: The ZEP18 6.3-gallon tank is ideal for smaller systems, providing just the right capacity for compact setups while maintaining efficiency and reliability.
- Connection: It features a 3/4" NPT connection, ensuring a secure and reliable fit for various plumbing and industrial applications.
- Construction: It is constructed from high-quality carbon steel, coated with an almond-colored epoxy-polyester finish that offers both durability and an attractive appearance. The tank features a polypropylene liner, specifically designed to prevent internal corrosion and maintain the integrity of the tank over time.
- Design: The seamless diaphragm design enhances reliability and ensures a longer lifespan, making it a dependable choice for various applications.
ZEP12 4.8 gal In-line Thermal Expansion Tank
- Capacity: The ZEP12 4.8-gallon expansion tank is specifically designed for inline installation, making it an ideal choice for systems requiring a compact and efficient solution.
- Connection: The Zilmet ZEP12 expansion tank is designed for durability and efficiency, featuring a 3/4" stainless steel NPT connection for reliable and long-lasting performance. Ideal for a variety of systems, it ensures secure and leak-proof installation, meeting the demands of both residential and commercial applications.
- Construction: It features a durable polypropylene liner designed to prevent internal corrosion, ensuring long-lasting performance and reliability. Additionally, it boasts a maximum pressure rating of 150 psi, making it suitable for a wide range of high-pressure applications.
- Design: The tank's compact design allows it to fit easily into a wide range of spaces, making it highly versatile. Its seamless diaphragm ensures durability and reliable performance, making it an excellent choice for various applications, from residential systems to industrial use.

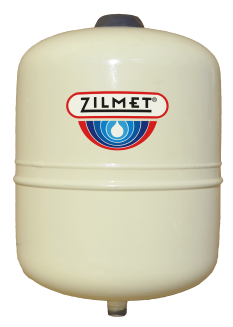

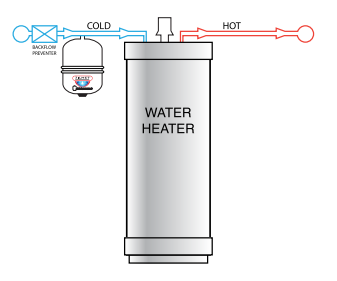

ZEP5 2.1 gal In-line Thermal Expansion Tank
- Capacity: The ZEP5 is a 2.1-gallon expansion tank is ideal for small systems.
- Connection: The Zilmet ZEP5 features a durable 3/4" stainless steel NPT connection, designed for reliable performance and compatibility with a wide range of industrial and residential applications.
- Construction: The expansion tank is designed with a durable polypropylene liner, which serves to prevent internal corrosion and extend the lifespan of the tank. This liner ensures reliable performance by protecting the inner surface from rust and other forms of damage caused by exposure to water over time.
- Design: The tank's seamless diaphragm design ensures exceptional durability and reliability, minimizing the risk of leaks and wear over time. This innovative construction enhances performance and extends the tank's lifespan, making it a dependable choice for various applications.
Conclusion
Expansion tanks play a critical role in keeping closed-loop heating systems safe, efficient, and long-lasting. Understanding how they work and choosing the right size ensures your system operates smoothly and avoids costly damage or repairs.
Zilmet's range of expansion tanks provides reliable, high-quality options for a variety of system sizes, making them a trusted choice for both homeowners and contractors. Selecting the right tank helps protect your investment and keeps your heating system running at peak performance.
