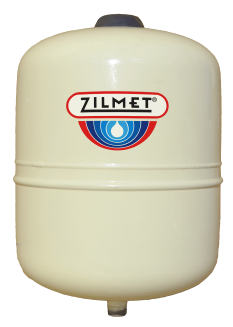

Zilmet Easy-Pro In-Line Thermal Expansion Tanks

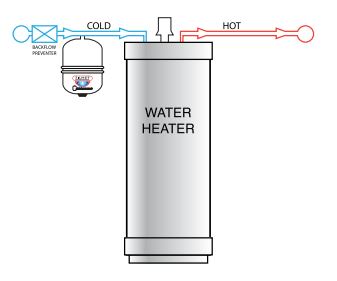

Zilmet Thermal Expansion Tanks for Hot Water Heaters

• Prevent dangerous pressure build up
• Protect household appliances and fixtures
• Save energy and water

Technical Features

• All tanks are NSF61 Certified
• Each tank is factory leak tested to ensure tank integrity
• MIG welding eliminated interior rough spots and sharp edges
• Exclusive polypropylene liner eliminates internal corrosion
• External baked epoxy-polyester coating provides a durable appliance like finish
• Protected pre charge valve eliminates potential leak path
• 150 psi max pressure rating

Advantages

Zilmet has over 50 years of experience in manufacturing high quality diaphragm expansion tanks

• Over 2 million square feet of production space
• Produces over 5 million tanks and 1 million heat exchangers annually
• Fully vertically integrated, designing and manufacturing all diaphragms internally

Zilmet has created a compact design with a seamless diaphragm that never stretches or creases

• There are no bubbles or corners to trap sediment, inhibiting bacterial growth
• International approvals for use with potable water to include NSF 61

Weight	6.0 lb
Connection Size	3/4 in.
Height	11.00 in.
Horse Power	1/3
Length	7.90 in.
Width	7.90 in.
Inventory Number	ZILZEP5
MPN	ZEP5
