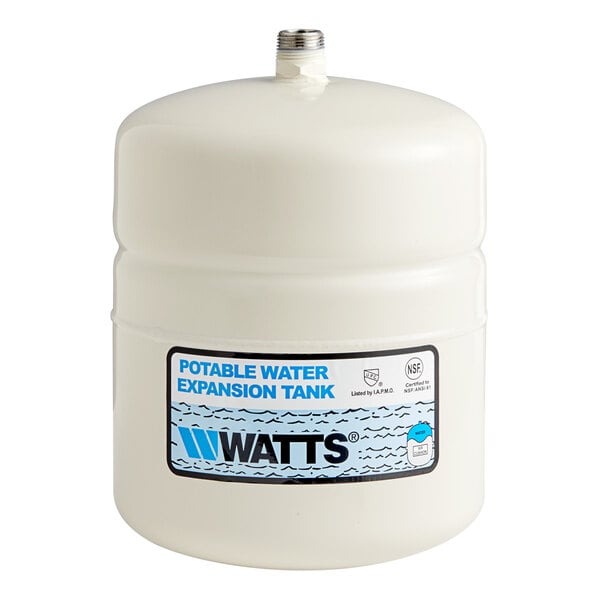

Watts 0067370 PLT-5 Potable Water Expansion Tank, 2.1 Gallon Tank
Watts 0067370 PLT-5 Potable Water Expansion Tank, 2.1 Gallon Tank
Regular price
$97.03
Sale price
$97.03
Regular price
$0.00
MSRP:
$257.00
Hurry up, only 1 item left in stock.
The Watts PLT Potable Water Expansion Tank is a reliable solution for managing increased water volume caused by thermal expansion in residential water heater and storage tank applications. It features a pre-pressurized steel tank and expansion membrane for balanced pressure and minimal air loss. This tank is compatible with various hot water heaters, IAPMO listed, ANSI/NSF 61 certified, and has a maximum pressure rating of 150psi. Other features include adjustable pre-charge, in-line and free-standing models, and compatibility with most standard hot water heaters and storage tanks.
Couldn't load pickup availability
This potable water expansion tank is used on gas, oil, or electric, direct-fired, residential water heater and hot water storage tank applications to absorb the increased volume of water created by thermal expansion. It also maintains balanced pressure throughout the water supply system by keeping system pressure below the T&P relief valve setting. This field-adjustable steel tank is air pre-charged at 20 psi, volume 2.1 gallons, designed with an FDA-approved polypropylene liner and Butyl rubber diaphragm, copper-lined steel, and 3/4 inch male inlet connection. An expansion membrane prevents air-to-water contact in the tank ensuring a long system life. IAPMO listed and ANSI/NSF 61 certified. The maximum pressure is 150 psi (10 bar).
- Prevents over-pressure caused by thermal expansion
- Air pre-charge at 20 psi
- 3/4 IN male connection
- Butyl rubber diaphragm
| Weight | 5.4 lb |
|---|---|
| Connection Size | 3/4 in. |
| Height | 11.00 in. |
| Horse Power | 1/3 |
| Length | 8.00 in. |
| Room | Utility |
| Width | 8.00 in. |
| Inventory Number | WAT0067370 |
| MPN | 0067370 |
