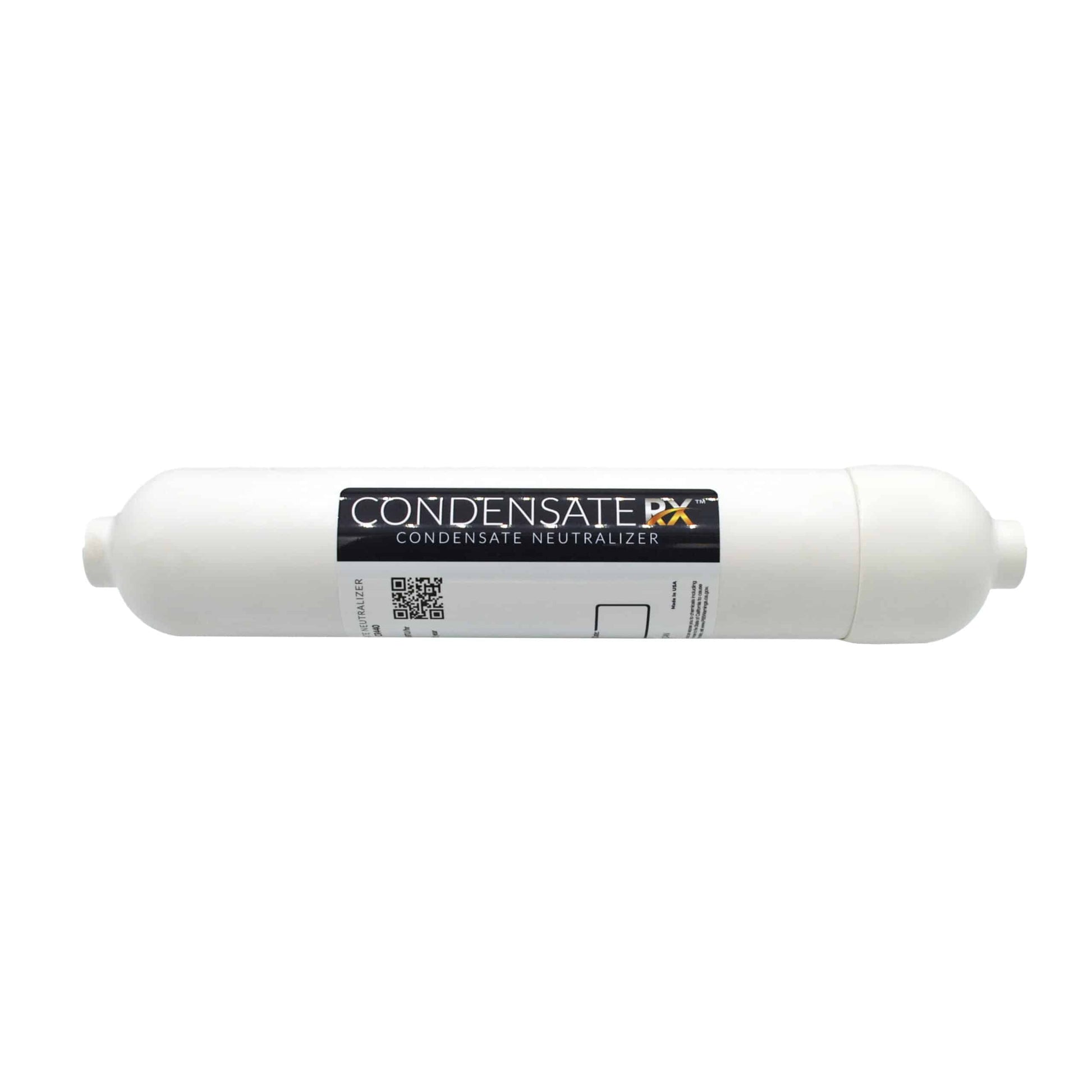

CondensateRx Acidic Condensate Neutralizer Cartridge for High-Efficiency Boilers & Water Heaters

Protect your home’s drain lines, septic tank, and surrounding landscaping from corrosive runoff with the American Valve CondensateRx Condensate Neutralizer Unit (MPN: CR440-SC). Formulated for high-efficiency condensing boilers, tankless water heaters, and furnaces rated up to 440,000 BTU, this inline cartridge uses a premium media blend of calcium carbonate and magnesium carbonate to safely neutralize acidic condensate prior to discharge.

Key Features

High-Capacity Acid Neutralization

Engineered to treat acidic runoff from condensing heating equipment up to 440,000 BTU with a maximum flow rate of 3.8 gallons per hour

Premium Calcium & Magnesium Media Blend

Contains a long-lasting internal media blend that neutralizes corrosive low-pH wastewater before it reaches municipal sewers, septic systems, or cast iron drain lines.

Plumbing Code Compliance

Helps satisfy local, state, and federal plumbing codes requiring acid neutralization, reducing the risk of costly municipal wastewater violations or pipe deterioration.

Flexible Low-Profile Installation

Directly connects inline to non-pressurized drain piping and can be installed vertically or horizontally with a minimum downward pitch of 1/4" per foot.

Made in the USA

Proudly engineered and manufactured in the United States to meet strict quality standards and industry regulations

Product Details

Explore more from this brand: American Valve Products

• Package Contents: Neutralizer Cartridge Only
• Max Appliance BTU Rating: Up to 440,000 BTU
• Max Flow Rate: 3.8 Gallons Per Hour (GPH)
• Max Operating Temperature: 100°F
• Connections: 1/2-inch FNPT
• Media Type: Calcium carbonate and magnesium carbonate blend
• Country of Origin: USA
• Replacement Interval: 1 year or 750 operating hours

Additional Information

• Brand: American Valve
• MPN: CR440-SC
• SKU: AMVCONDCART
• UPC: 611918124636

American Valve CondensateRx FAQ

Why is a condensate neutralizer required for high-efficiency HVAC equipment?

High-efficiency condensing boilers and tankless water heaters produce acidic runoff (often with a pH similar to vinegar or lemon juice). Without neutralization, this water eats through cast iron drains, damages concrete floors, ruins landscaping, and harms septic bacterial balances.

How often does the CondensateRx unit need to be replaced?

American Valve recommends replacing the unit after 1 year or approximately 750 hours of boiler operation, whichever comes first.

How should the CondensateRx unit be mounted?

Mount the cartridge either vertically or horizontally below the equipment trap, ensuring a minimum downward slope of 1/4" per foot for proper gravity drainage. Always ensure a primed gas trap is installed on the drain line prior to the neutralizer to prevent flue gases from venting.

Is this unit pressurized?

No. CondensateRx neutralizers are designed exclusively for non-pressurized gravity drain applications.

Weight	3.0 lb
Height	13.00 in.
Length	0.75 in.
Room	Kitchen
Type	Whole House Conditioning
Width	0.75 in.
Inventory Number	AMVCONDCART
MPN	CR440-SC
