Condensate Neutralizer Kit for High-Efficiency Boilers and Tankless Water Heaters

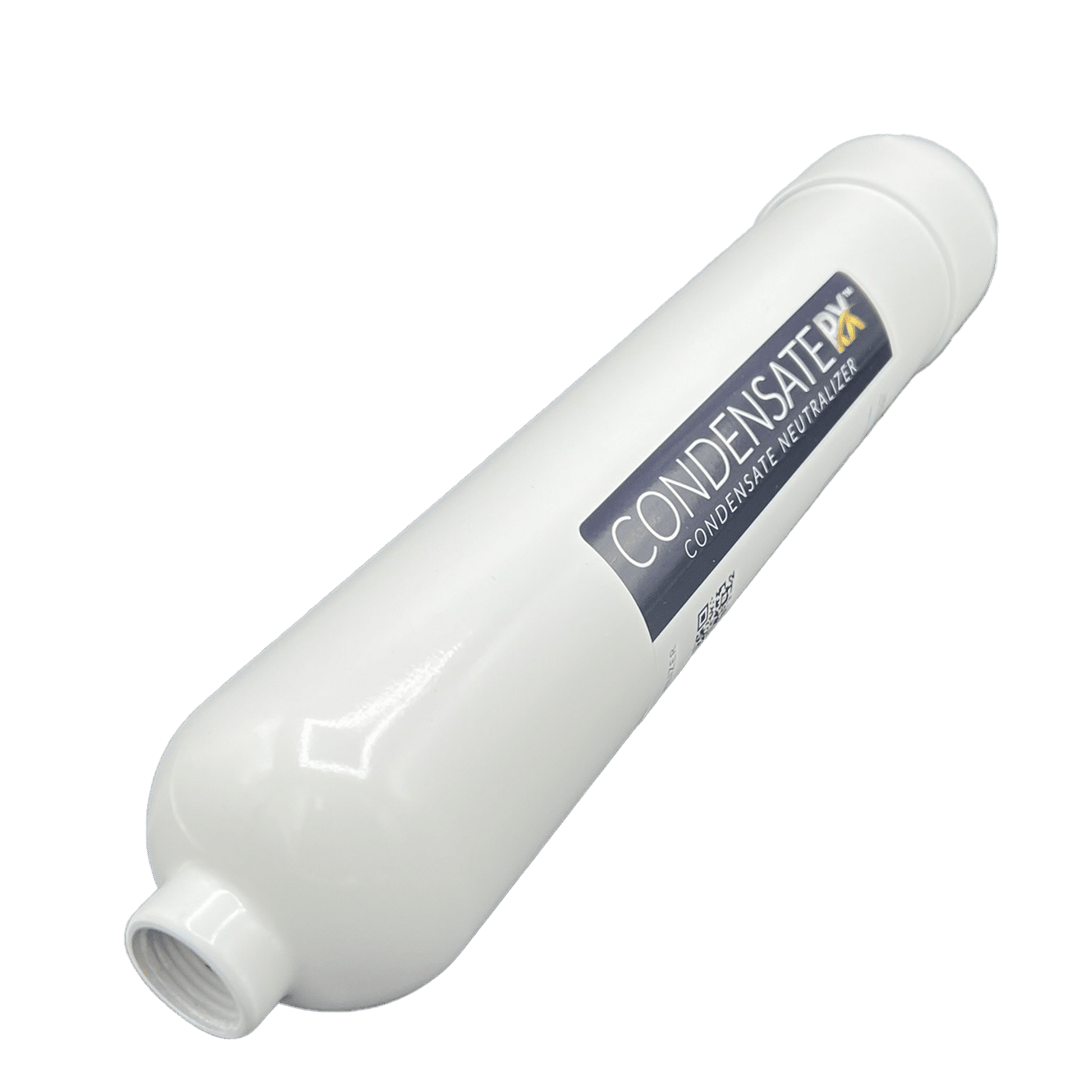

The American Valve CondensateRx (MPN: CONDENSATE RX KIT) uses a proprietary neutralizing media blend to treat acidic runoff from condensing boilers and tankless water heaters, preventing pipe corrosion and environmental damage.

Key Features

High-Capacity Neutralization Media

Formulated to neutralize acidic condensate produced by high-efficiency equipment rated up to 440,000 BTU/hr, protecting municipal sewers, septic systems, and drain lines.

Flexible Low-Profile Mounting

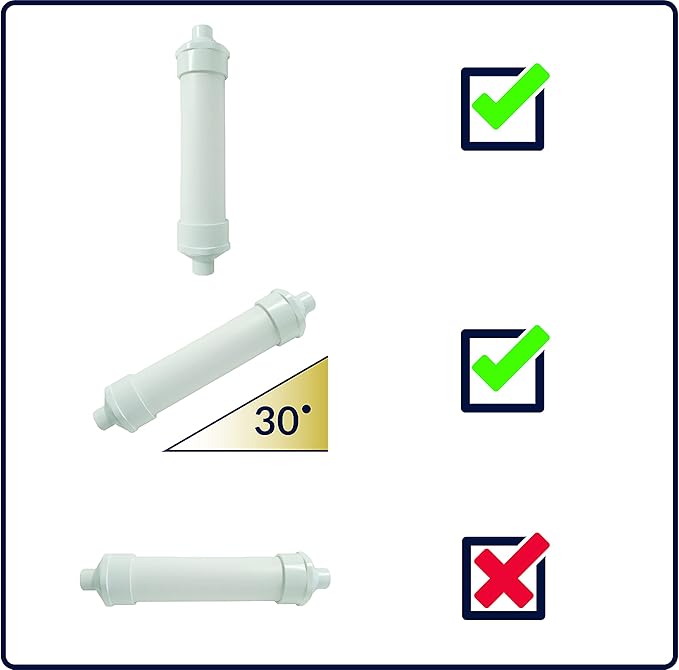

Engineered for direct inline connection to drain lines with flexible mounting options, allowing straight horizontal installation or angled vertical mounting up to 30 degrees.

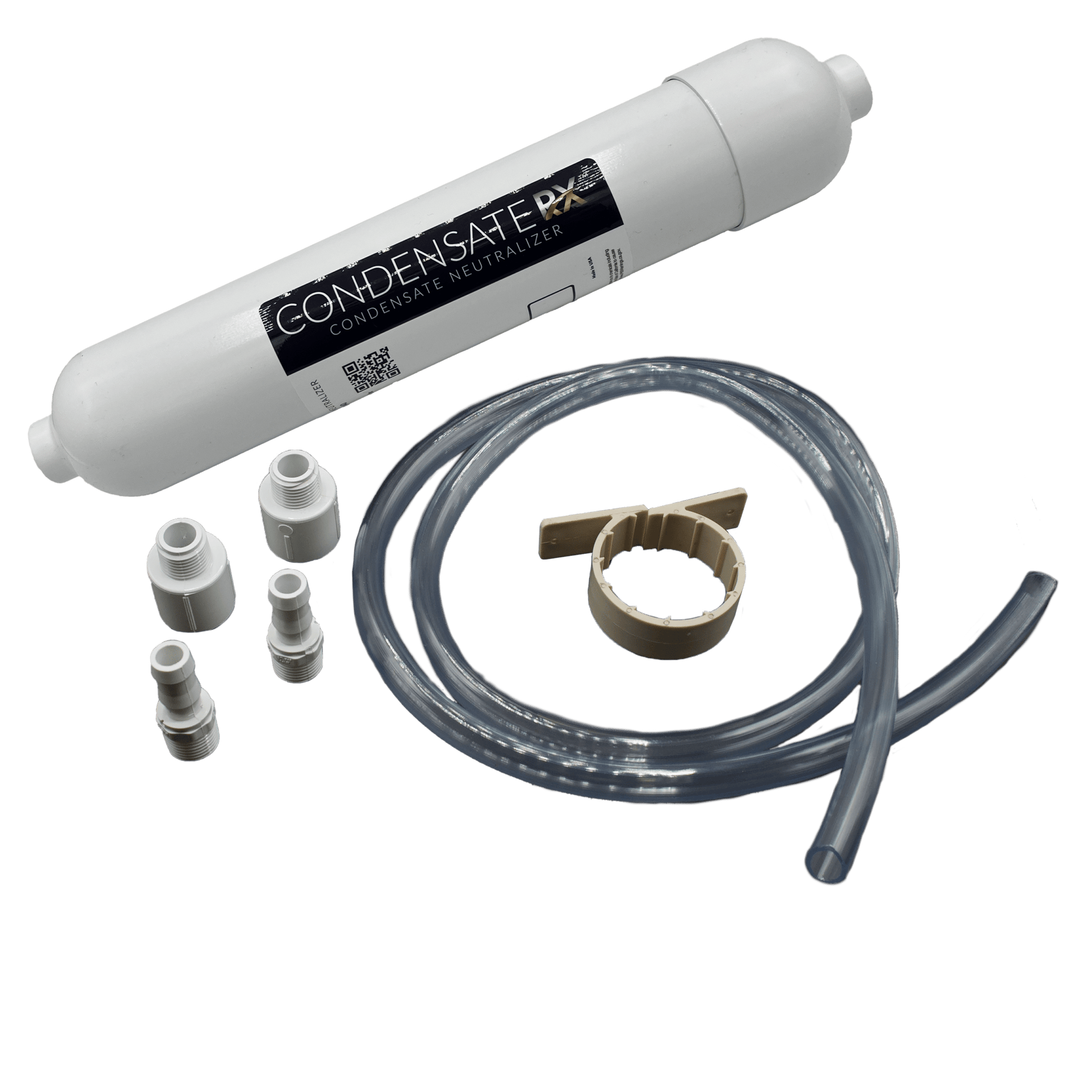

Multi-Connection Adapter Kit Included

Features 1/2-inch Female NPT threaded ports and includes adapter fittings for 1/2-inch hose barb and 3/4-inch PVC socket connections.

Code Compliance & Environmental Protection

Meets national and local plumbing code requirements for acid disposal compliance, eliminating raw acidic wastewater discharge from condensing appliances.

Product Details

• Maximum Appliance Input Capacity: 440,000 BTU/hr
• Maximum Condensate Flow Rate: 3.8 Gallons Per Hour (GPH)
• Connections: 1/2" Female NPT (Includes adapters for 1/2" Hose Barb and 3/4" PVC Socket)
• Maximum Operating Temperature: 100°F
• Mounting Angle Range: Horizontal to 30° Vertical
• Origin: Made in USA
• Applicable Standards: Local Plumbing Code Acid Neutralization Requirements

Shop all American Valve products

Additional Information

• Brand: American Valve
• MPN: CONDENSATE RX KIT

American Valve CondensateRx FAQ

Why is a condensate neutralizer required for condensing boilers and tankless water heaters?

Condensate produced by high-efficiency gas appliances is naturally acidic (pH 3–5). Left untreated, it corrodes copper pipes, cast iron drains, concrete floor drains, and damages septic tanks.

What is the maximum BTU capacity for the CondensateRx kit?

This kit is rated to treat condensate from condensing boilers, water heaters, and furnaces with gas inputs up to 440,000 BTU/hr.

What plumbing connections are included in the box?

The unit features 1/2-inch Female NPT threads and comes packed with adapters for 1/2-inch flexible hose barb and 3/4-inch PVC schedule 40 socket connections.

Can this neutralizer be installed vertically?

It is designed primarily for inline horizontal mounting, but the low-profile casing allows installation at an incline up to 30 degrees from horizontal if space requires.

Does the media need to be replaced over time?

Yes. The media blend neutralizes acid by dissolving over time. Media levels should be inspected annually and recharged when depleted to maintain proper pH levels.

Weight	3.0 lb
Height	13.00 in.
Length	0.75 in.
Material	PVC
Room	Kitchen
Type	Whole House Conditioning
Valve Type	Inline Valves
Width	0.75 in.
Inventory Number	AMVCONDRXKIT
MPN	CONDENSATE RX KIT
