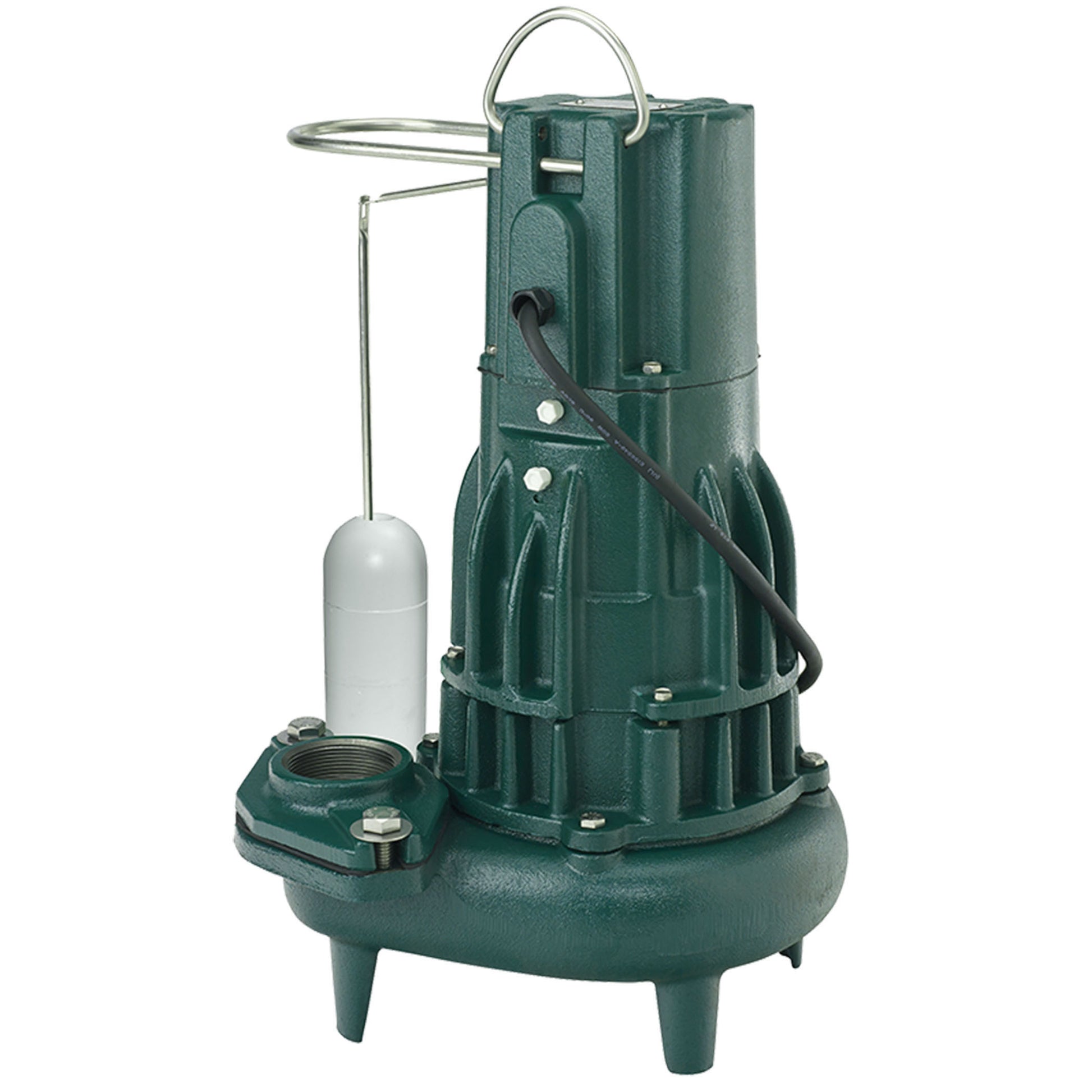

The 1/2 HP Model M292 automatic Sewage Pump is designed to remove raw sewage, effluent or ground water in sewage or stormwater removal applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
Cast iron vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
Stainless steel screws, handle, and hardware to prevent rust and corrosion
100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it

Weight	89.0 lb
Color	Green
Connection Size	2 in.
Connection Type	Threaded
Flow Rate	214 GPM
Height	21.25 in.
Inlet Size	2 in.
Length	14.75 in.
Material	Cast Iron
Room	Utility
Voltage	115V
Width	11.75 in.
Inventory Number	ZOE292-0001
MPN	292-0001
Amps	20.5
