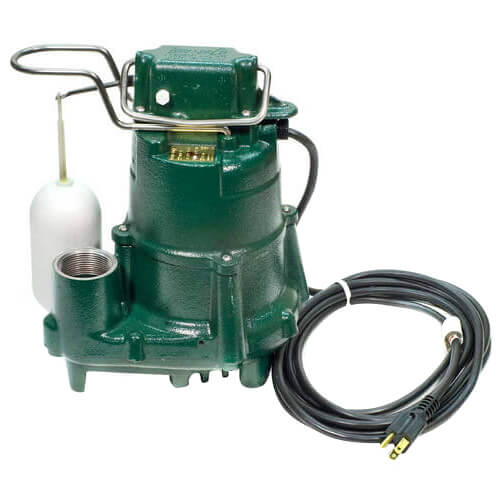

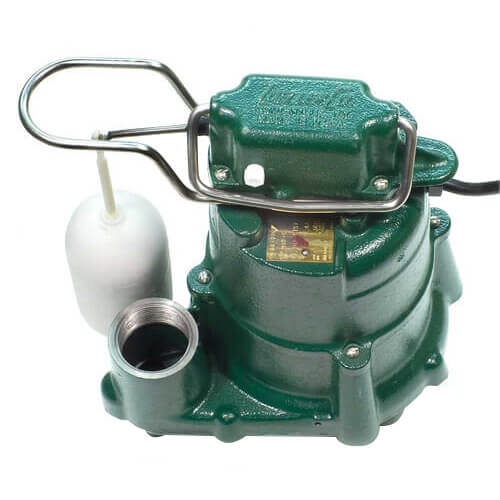

Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
Corrosion resistant powder coated epoxy finish
Durable cast iron construction
Cast iron switch case, motor, pump housing and base
Stainless steel screws, guard, handle, arm and seal assembly
Float operated submersible (NEMA 6) 2 pole mechanical switch
Permanent split capacitor motor, oil filled and hermetically sealed, automatic reset thermal overload protection
Entire unit pressure tested after assembly
Carbon and ceramic shaft seal
Watertight neoprene square ring between motor and pump housing
Maximum temperature for effluent or dewatering 130degreesF (54degreesC)

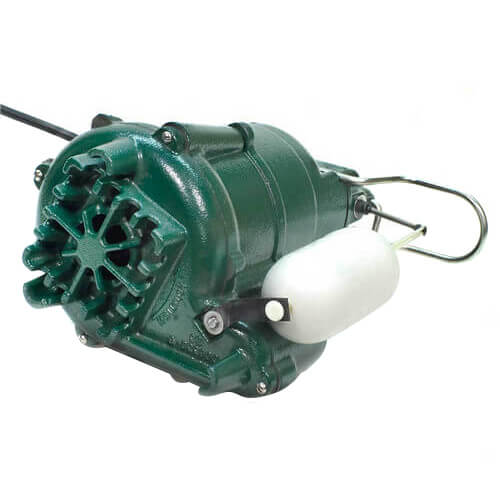

Impeller Type: Non-clogging, engineered plastic vortex impeller
1-1/2" NPT discharge

Weight	53.0 lb
Certifications	NEMA 6
Collection	Flow-Mate
Color	Green
Connection Size	1-1/2 in.
Connection Type	Threaded
Height	13.75 in.
Inlet Size	1-1/2 in.
Length	18.38 in.
Material	Cast Iron
Room	Utility
Switch Type	Float
Type	Primary Sump Pumps
Voltage	115V
Width	16.00 in.
Inventory Number	ZOE98-0010
MPN	98-0010
Amps	9.4
