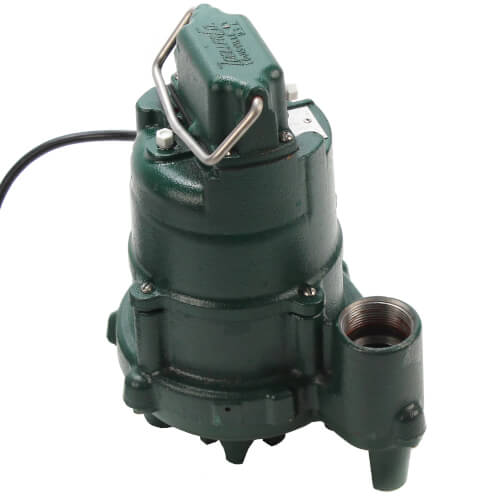

Zoeller BN153 Effluent Submersible Pump for Septic Tank, Low Pressure Pipe (LPP) and Enhanced Flow STEP Systems. This submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. It includes a powder coated epoxy finish to prevent corrosion and is designed to provide great heat dissipation from the motor, ensuring a long service life.
Durable cast iron construction
Corrosion resistant powder coated epoxy finish
Stainless steel lifting handle
Non-clogging engineered thermoplastic vortex impeller design
Carbon/Ceramic seals
Upper sleeve bearing and lower ball bearing running in bath of oil
BN and BE standard models include a 20 ft. variable level float switch

Weight	35.0 lb
Collection	Dose Mate
Color	Green
Connection Size	1-1/2 in.
Connection Type	Threaded
Flow Rate	77 GPM
Height	12.13 in.
Inlet Size	1-1/2 in.
Length	8.50 in.
Material	Cast Iron
Room	Utility
Switch Type	Float
Type	Primary Sump Pumps
Voltage	115V
Width	7.75 in.
Inventory Number	ZOEBN153
MPN	BN153-0005
Amps	10.5
