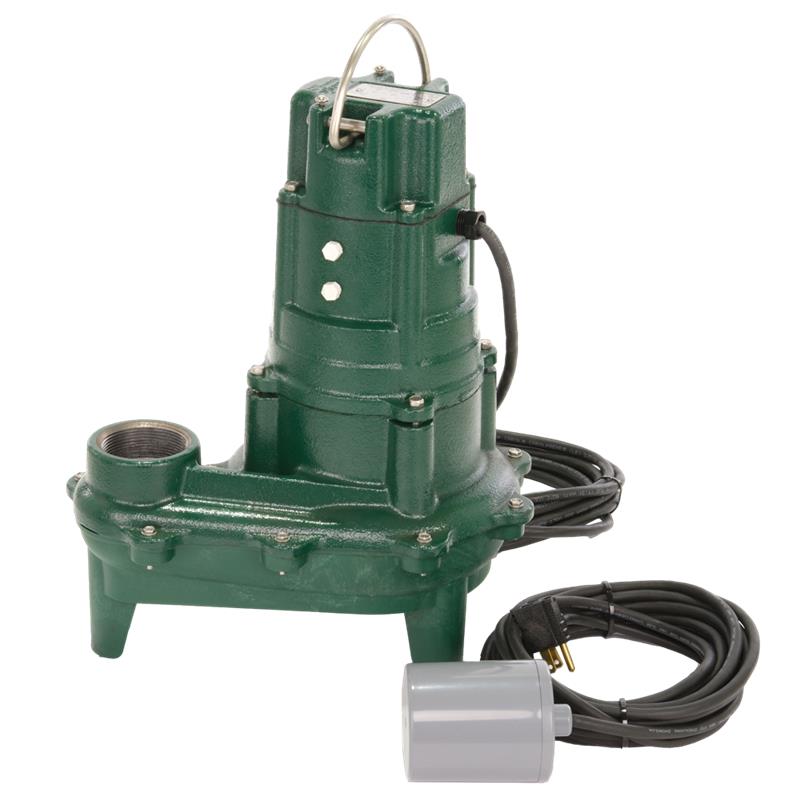

The 1 HP Model BN270 nonautomatic Sewage Pump with a variable level float switch is designed to remove sewage from sewage ejector applications. This corrosion resistant pump will provide the dependability expected from a Zoeller pump. Backed by a 1-year warranty, every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.
Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
Nonautomatic pump with piggyback variable level float switch which allows you to adjust the on / off level for optimal runtime
Corrosion resistant engineered plastic vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
The single piggyback float switch turns a nonautomatic pump into an automatic pump and also allows you to isolate the pump from the switch making it easier to troubleshoot issues in the field
Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
Stainless steel screws, handle, and piggyback switch pipe clamp to prevent rust and corrosion
100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it

Weight	47.5 lb
Color	Green
Connection Size	2 in.
Connection Type	Threaded
Flow Rate	132 GPM
Height	16.25 in.
Inlet Size	2 in.
Length	13.50 in.
Material	Cast Iron
Room	Utility
Switch Type	Float
Width	11.00 in.
Inventory Number	ZOE270-0005
MPN	270-0005
Amps	15

• Spec Sheet
• Technical Data Sheet
• Installation Guide
• Replacement Parts Guide
