Zoeller 540 FLEX: Water-powered, emergency backup Sump Pump system

Zoeller's FLEX is a high capacity, high efficiency, water-powered backup system. The FLEX takes over seamlessly when your primary sump system fails.

540 Flex Backup Sump Pump

When the power goes out or a Sump Pump fails, homeowners may be at risk of experiencing flooding. Instead of waiting for the electricity to return, your clients can use our backup pump for hassle-free operation when they need it most.

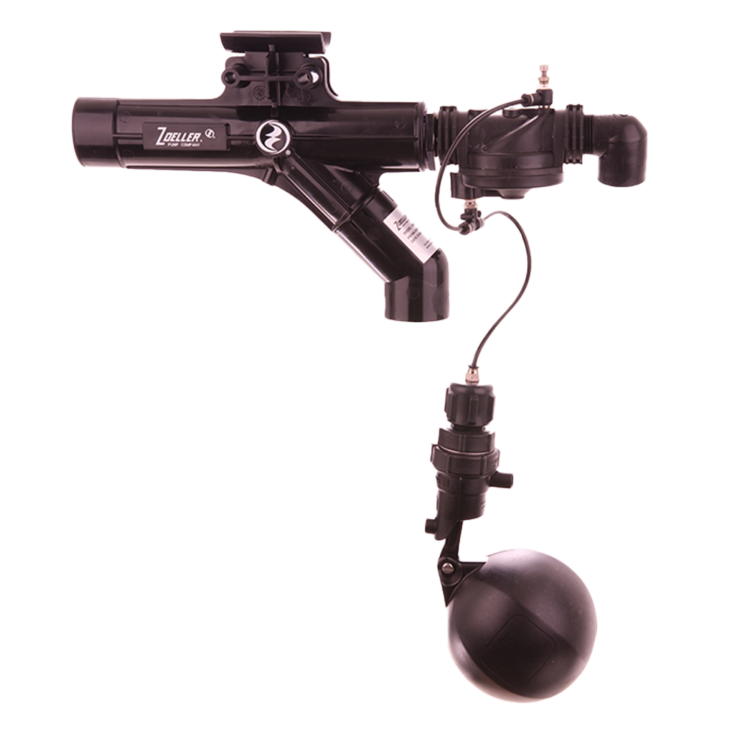

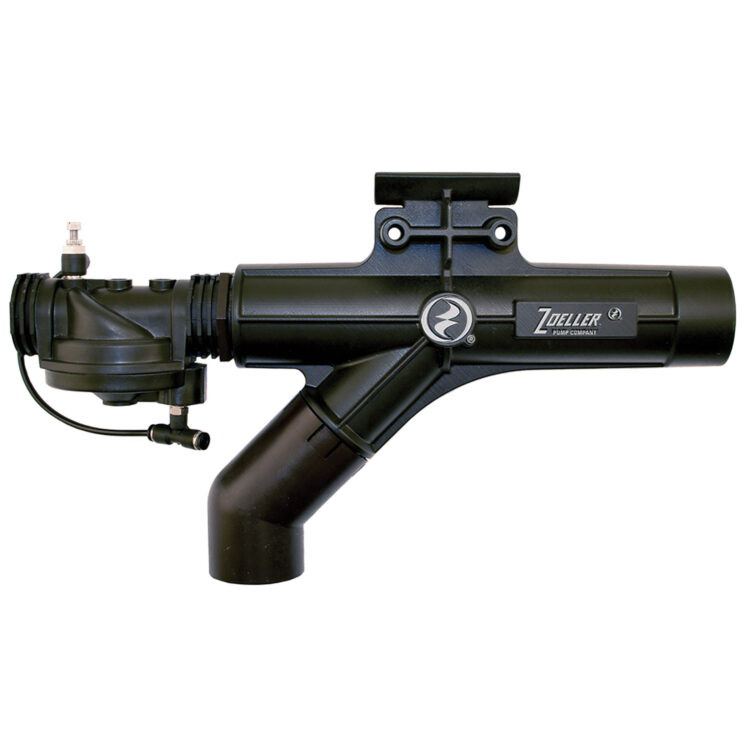

Zoeller Pump Company's 540 Flex backup pump is a high-performance water-powered system that effortlessly takes over when your primary pump fails or is unusable. With convenient horizontal or vertical installation in the rafters and a push-to-connect fitting, this product maintains a safe water line and offers the reassurance of a protected home.

The Support You Need During an Emergency

Homeowners understand that things can go wrong, and emergencies pop up. A power outage can cause Sump Pump s to be rendered unusable, exposing your clients to the risk of flooding. With the 540 Flex? as their backup Sump Pump , they?ll have the peace of mind that their home is protected. This emergency water-powered backup Sump Pump is easily used with any brand of Sump Pump and offers 24/7 protection, ensuring your clients are covered even at the most inconvenient times.

These nonelectric Sump Pump backups use a 1 1/4-inch suction pipe to create enough pressure to force water through a 1 1/2-inch Discharge Pipe , moving water outside the home. They are battery-less backup systems that use the pressure from the municipal water supply. Doing this allows the pump to expel two gallons for every gallon used.

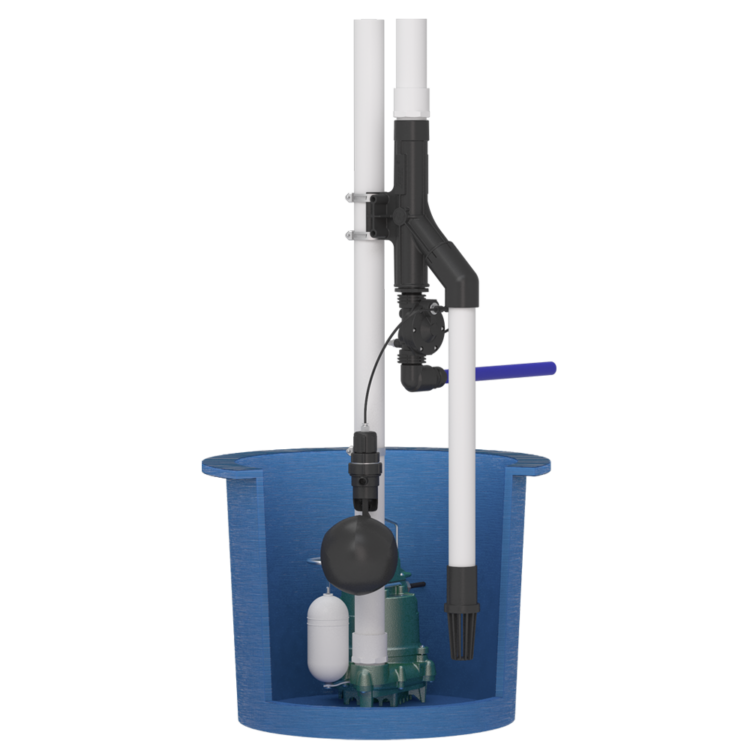

• Horizontal OR Vertical installation capability allows FLEX to fit most sump applications
• No electricity or batteries required
• Municipal/city water pressure-powered system
• Unit requires 3/4" inlet line to operate properly
• 1-1/4" suction pipe required for maximum performance (field installed)
• Removes up to 2 gallons for every gallon used
• Flexible installation allows you to install the pump in the rafters keeping the water line safe and secure
• No moving float rod which allows you to effectively seal the sump pit cover
• Works during power failures
• On guard 24 hours day
• Helps eliminate flooding in basements
• Can be used with any existing brand of Sump Pump
• Small footprint - works in 18" x 22" (46 x 56 cm) pit
• 1-1/2" Discharge Piping connection
• Efficient water usage
• High capacity, high head
• Includes push-to-connect supply fitting (field installed)
• Engineered for trouble-free operation
• Non-corrosive materials
• Performs at operating pressures from 40 to 80 psi
• Primary Sump Pump not included

Want to learn more about this Water Powered Back-Up Pump Read about it in our article on Factors to Consider When Purchasing a Sump Pump at our Resource Center.

Weight	5.52 lb
Height	5.60 in.
Length	15.50 in.
Material	Plastic
Room	Utility
Type	Backup Sump Pumps
Width	13.75 in.
Inventory Number	ZOE540-0005
MPN	540-0005

36 Months
