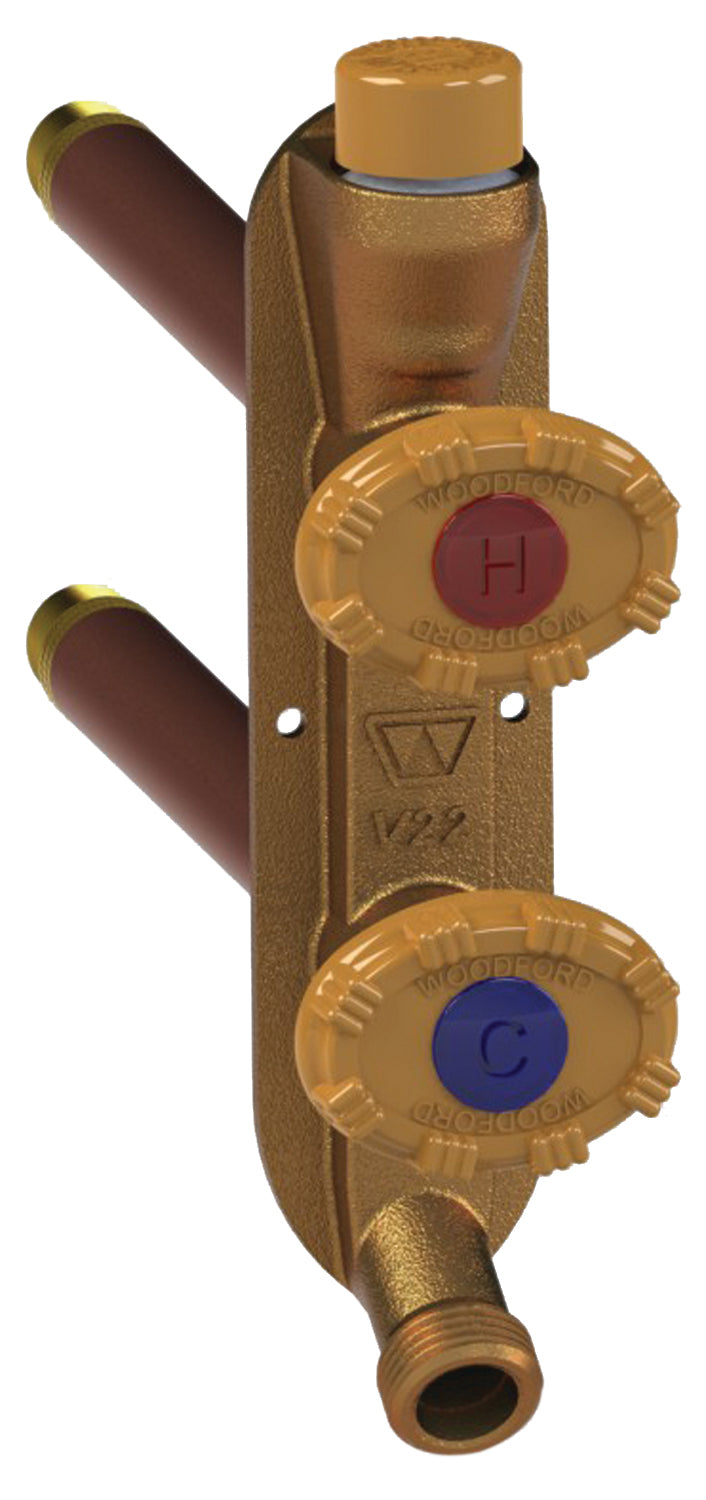

The Woodford V22CP-10-MH is a vertical-mount, freezeless wall faucet designed to provide year-round hot and cold water service regardless of outside temperature. Its separate hot and cold inlet tubes allow for manual temperature control, while the integral anti-siphon vacuum breaker and pressure relief valves ensure safety and prevent backflow.

• 10-inch wall thickness compatibility
• 1/2-inch MPT x 1/2-inch female sweat inlet
• 3/4-inch male hose thread outlet
• Integral anti-siphon vacuum breaker
• Patented pressure relief valves to prevent bursting
• Powder-coated die-cast aluminum handle

Weight	3.5 lb
Color	Rough Brass & Red Handle
Connection Size	3/4 in.
Height	3.00 in.
Horse Power	1/3
Length	18.25 in.
Material	Brass
Type	Supply Lines & Stops
Width	8.50 in.
Inventory Number	WOODV22CP10MH
MPN	V22CP-10-MH

• Specification Sheet
• Installation Sheet
• Troubleshooting
