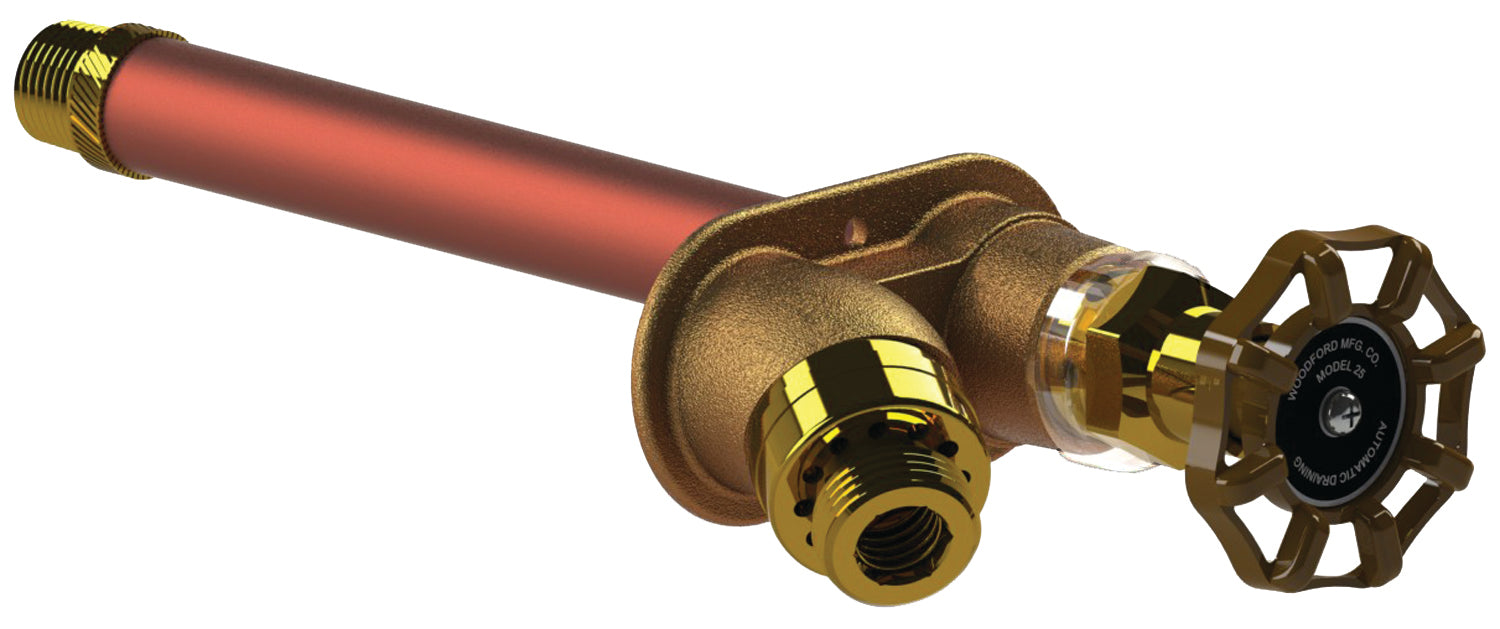

The Woodford 25CP-12 is a freezeless wall faucet designed for year-round residential irrigation purposes. It features a 1/2-inch CP inlet and is compatible with 12-inch wall thicknesses. The faucet includes an integral anti-siphon vacuum breaker and a stainless steel seat to prevent wire draw.

• 1/2-inch CP inlet
• Compatible with 12-inch wall thicknesses
• Integral anti-siphon vacuum breaker
• Stainless steel seat to prevent wire draw
• Powder-coated die-cast aluminum handle

Weight	2.38 lb
Color	White
Connection Size	3/4 in.
Height	3.00 in.
Horse Power	1/3
Length	18.00 in.
Material	Brass
Type	Supply Lines & Stops
Width	4.00 in.
Inventory Number	WOOD25CP12
MPN	25CP-12
