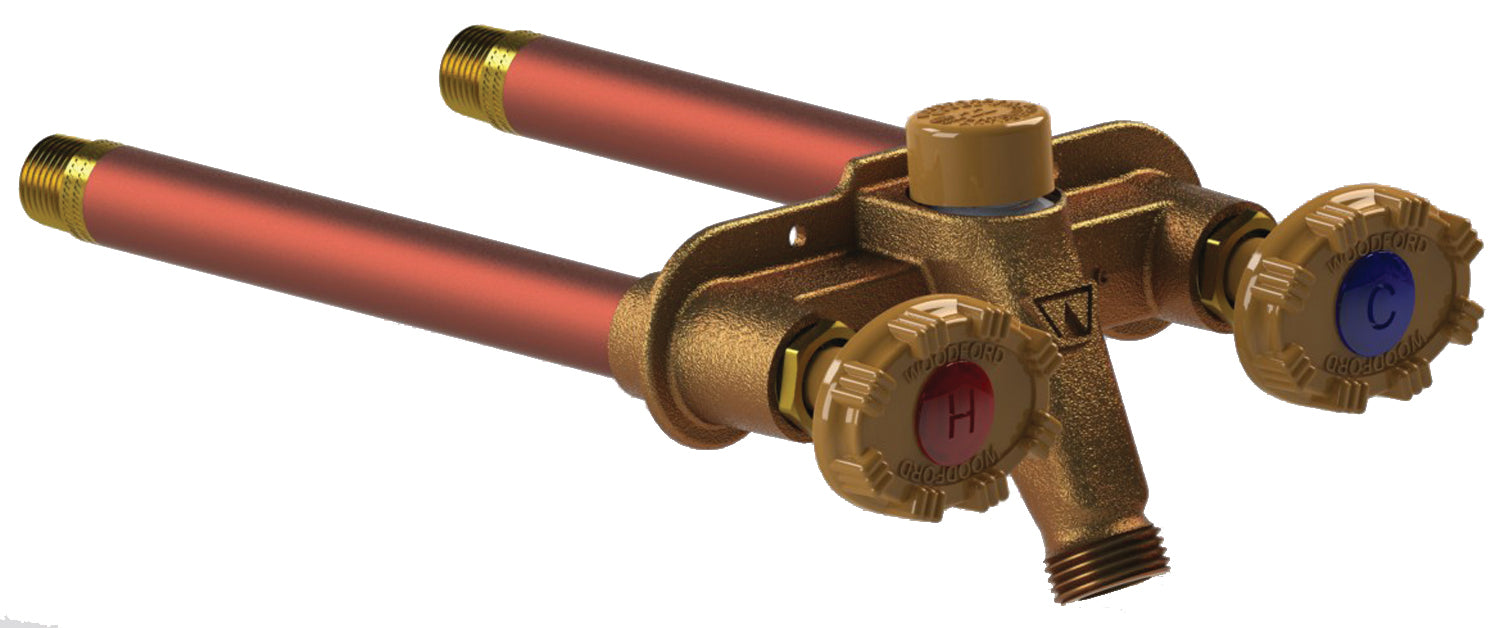

The Woodford 22PX-10-MH is a freezeless wall faucet designed for year-round hot and cold water service. It features a 1/2-inch PEX crimp inlet and is compatible with 10-inch wall thicknesses. The faucet includes patented pressure relief valves to prevent bursting under freezing conditions and an integral anti-siphon vacuum breaker to prevent backflow.

• 1/2-inch PEX crimp inlet
• Compatible with 10-inch wall thicknesses
• Patented pressure relief valves to prevent bursting
• Integral anti-siphon vacuum breaker
• Powder-coated die-cast aluminum handle

Weight	3.8 lb
Color	Rough Brass & Red Handle
Connection Size	1/2 in.
Height	3.00 in.
Horse Power	1/3
Length	18.00 in.
Material	Brass
Type	Supply Lines & Stops
Width	8.00 in.
Inventory Number	WOOD22PX10MH
MPN	22PX-10-MH
