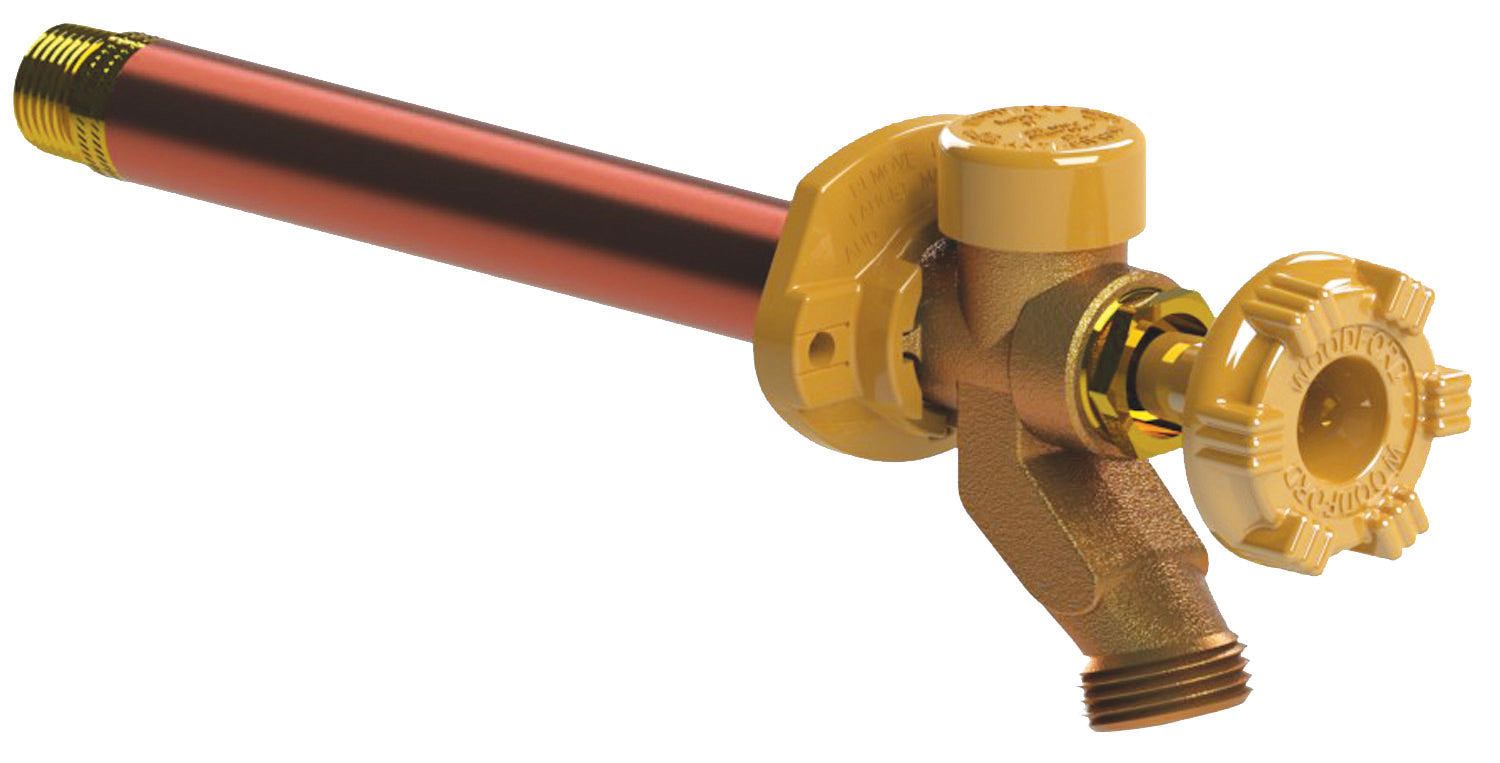

The Woodford 17PX-12-MH is engineered for year-round residential irrigation, offering robust protection against freezing temperatures. Its freezeless design ensures the faucet won't rupture when the valve is shut off and the hose is removed. The integral anti-siphon feature provides backflow protection up to 125 psi, eliminating the need for an add-on vacuum breaker.

• 12-inch wall thickness compatibility
• 1/2-inch PEX crimp inlet
• 3/4-inch male hose thread outlet
• Integral anti-siphon backflow protection up to 125 psi
• Stainless steel seat to eliminate wire draw

Weight	1.68 lb
Color	White
Connection Size	1/2 in.
Height	5.00 in.
Horse Power	1/3
Length	17.00 in.
Material	Brass
Type	Supply Lines & Stops
Width	4.00 in.
Inventory Number	WOOD17PX12MH
MPN	17PX-12-MH
