Woodford 17P-8-MH 8 in Freezeless Anti-Siphon Wall Faucet, 3/4 in MPT x 1/2 in FPT Inlet
Woodford 17P-8-MH 8 in Freezeless Anti-Siphon Wall Faucet, 3/4 in MPT x 1/2 in FPT Inlet
Special Order. Expect 4-6 weeks for delivery, subject to change
Project Pricing
Get Accurate Project Pricing for Your Plumbing Needs
Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.
Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
Couldn't load pickup availability

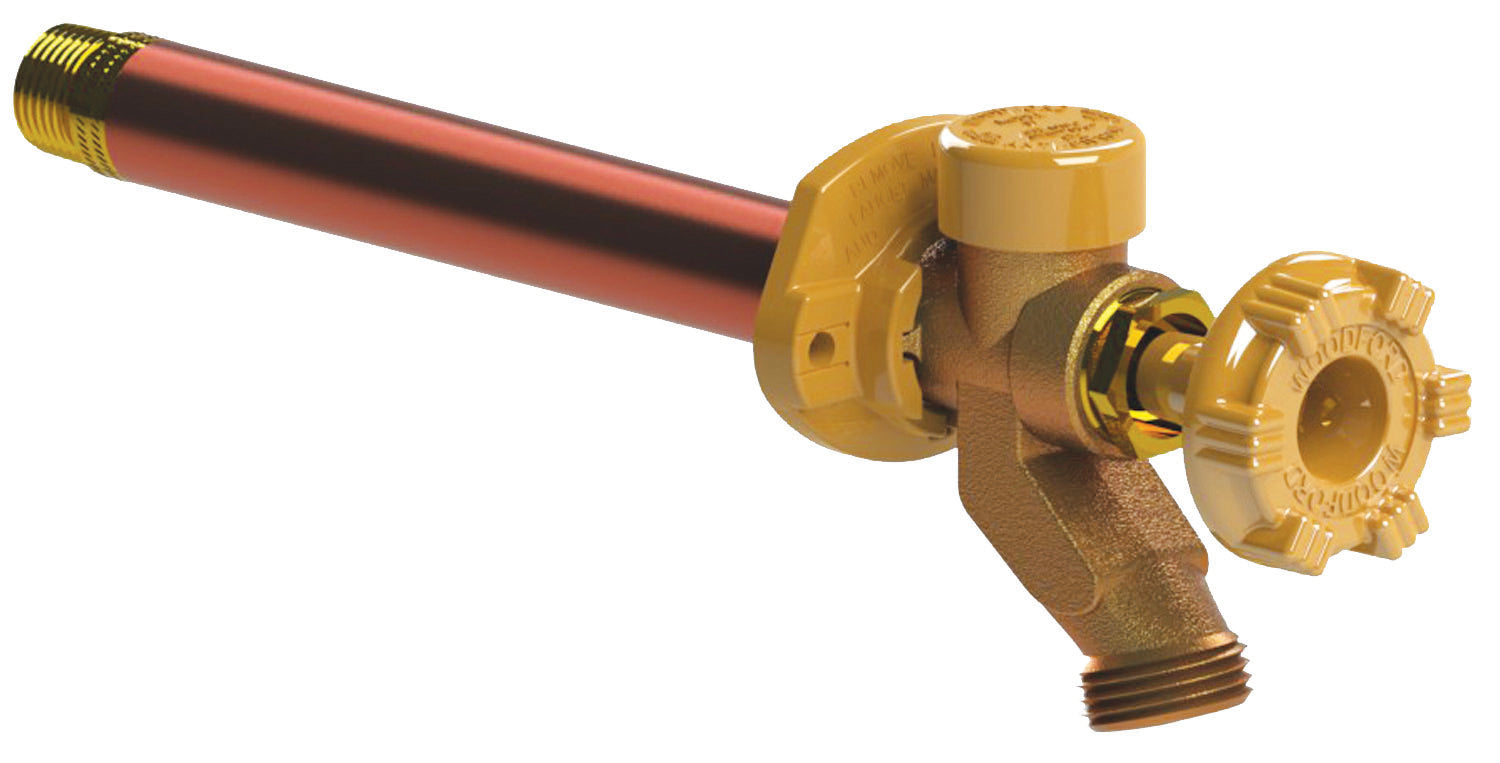

The Woodford 17P-8-MH Model 17 Freezeless Anti-Siphon Wall Faucet is engineered for reliable year-round residential irrigation and outdoor watering applications. Designed to perform in varying weather conditions, this freezeless wall faucet helps prevent rupture from freezing when the valve is shut off and the hose is removed. The integrated anti-siphon backflow protection device provides protection against backpressure up to 125 PSI, eliminating the need for an additional vacuum breaker while helping safeguard the potable water supply. This ASSE 1019 Type C listed faucet is intended for irrigation and outdoor watering applications and should not be subjected to more than 12 hours of continuous water pressure. :contentReference[oaicite:0]{index=0}
Featuring Woodford's P inlet configuration, the 17P-8-MH is equipped with a 1/2 inch female pipe thread (FPT) x 3/4 inch male pipe thread (MPT) inlet connection, making it ideal for a variety of residential plumbing installations. The faucet is designed for walls with an 8 inch thickness and provides an overall length of approximately 9-3/8 inches. The durable metal handle is constructed from powder-coated die-cast aluminum for dependable operation and corrosion resistance in outdoor environments. :contentReference[oaicite:1]{index=1}
Built with quality components for long-lasting performance, the Model 17 features a stainless steel valve seat that helps eliminate wire draw and extend service life. EPDM packing helps prevent leakage around the stem, while full-circle operating threads on the valve body and retainer promote smooth operation and secure engagement. Additional construction features include no-lead solder, a standard O-size seat washer for simplified maintenance, a 3/4 inch male hose thread outlet, and an adjustable polycarbonate wall flange that provides a clean finished appearance after installation. :contentReference[oaicite:2]{index=2}
The Woodford 17P-8-MH is certified to ASSE 1019 Type C standards and is CSA and cUPC approved. It is rated for a maximum working pressure of 125 PSI and a maximum operating temperature of 120 degrees Fahrenheit. For proper freeze protection, the faucet must be installed with a slight downward pitch toward the nozzle and any attached hose must be removed during freezing weather conditions. This combination of freezeless operation, integral anti-siphon protection, durable construction, and versatile 1/2 inch FPT x 3/4 inch MPT inlet connection makes the Woodford 17P-8-MH an excellent choice for residential outdoor water service applications. :contentReference[oaicite:3]{index=3}
| Weight | 1.5 lb |
|---|---|
| Color | Rough Brass & Red Handle |
| Connection Size | 1/2 in. |
| Height | 3.00 in. |
| Horse Power | 1/3 |
| Length | 14.00 in. |
| Material | Brass |
| Type | Supply Lines & Stops |
| Width | 4.00 in. |
| Inventory Number | WOOD17P8MH |
| MPN | 17P-8-MH |
