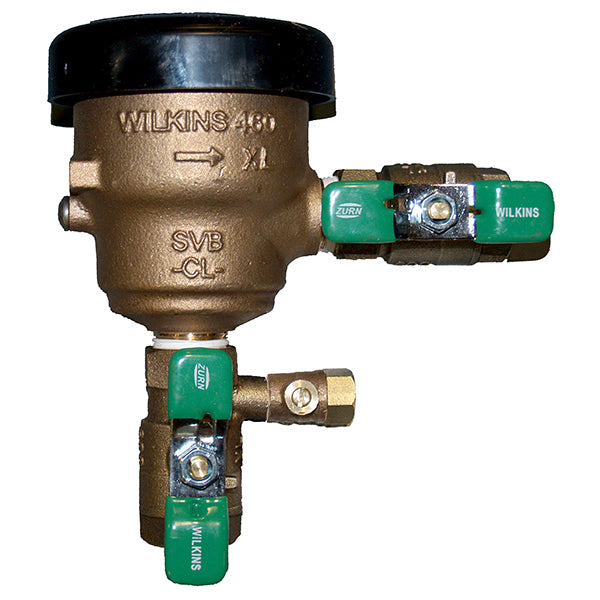

Ideal for use where Lead-Free* valves are required. Designed for installation on indoor and outdoor point of use applications to protect against backsiphonage of contaminated water into the water supply. During start-up and operation a separate diaphragm seals the air inlet from the water supply preventing spillage. The assembly is designed for use under constant pressure and provides protection where a potential health hazard exists.

• 3/4" Size
• Max working water pressure: 150 PSI
• Max working water temperature: 180F
• Hydrostatic test pressure: 300 PSI
• Threaded connections: ANSI B1.201
• Replaceable thermoplastic modular cartridge
• Spill resistant feature for indoor use
• Main valve body: cast bronze ASTM B 584
• FDA Approved Silicone and Buna Nitrile Elastomers
• FDA Approved Polypropylene and POM Acetal Polymers
• 300 Series Stainless Steel Springs

Weight	3.8 lb
Height	7.50 in.
Horse Power	1/3
Length	4.25 in.
Type	Vacuum Breakers
Width	4.25 in.
Inventory Number	ZUR34460XL
MPN	34-460XL
