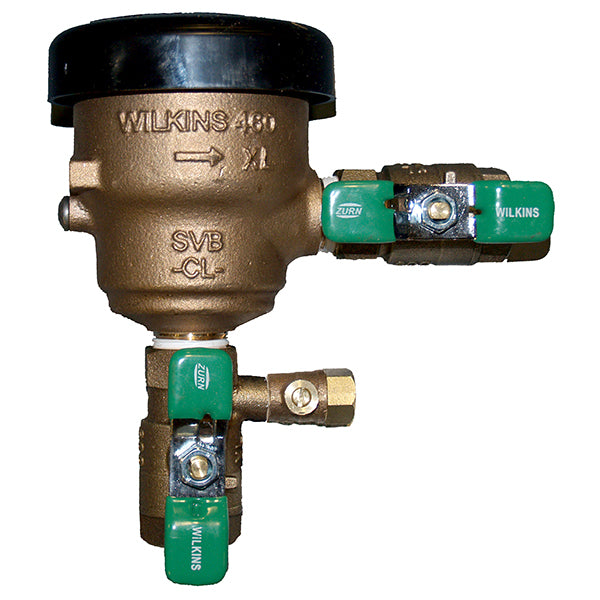

Ideal for use where Lead-Free* valves are required. Designed for installation on indoor and outdoor point of use applications to protect against backsiphonage of contaminated water into the water supply. During start-up and operation a separate diaphragm seals the air inlet from the water supply preventing spillage. The assembly is designed for use under constant pressure and provides protection where a potential health hazard exists.

• 1/2" Size
• Max working water pressure: 150 PSI
• Max working water temperature: 180F
• Hydrostatic test pressure: 300 PSI
• Replaceable thermoplastic modular cartridge
• Spill resistant feature for indoor use
• Main valve body: cast bronze ASTM B 584
• FDA Approved Silicone and Buna Nitrile Elastomers
• FDA Approved Polypropylene and POM Acetal Polymers
• 300 Series Stainless Steel Springs
• Spec Sheet

Weight	2.1 lb
Height	5.69 in.
Horse Power	1/3
Length	3.38 in.
Type	Vacuum Breakers
Width	3.38 in.
Inventory Number	ZUR12460XLBT
MPN	12-460XLBT

• https://www.zurn.com/media-library/web_documents/pdfs/specsheets/bf-460xl-pdf
