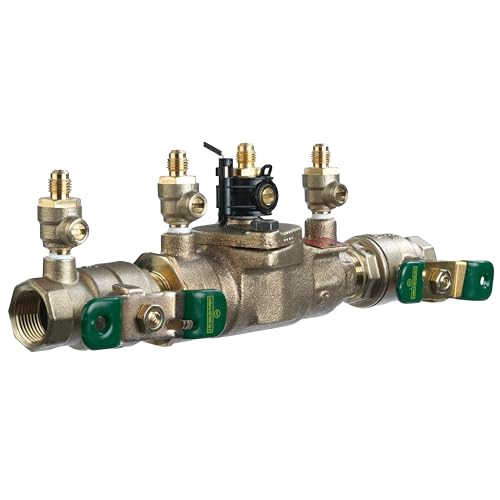

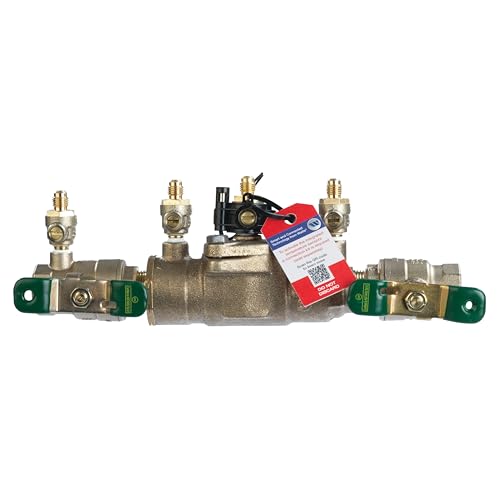

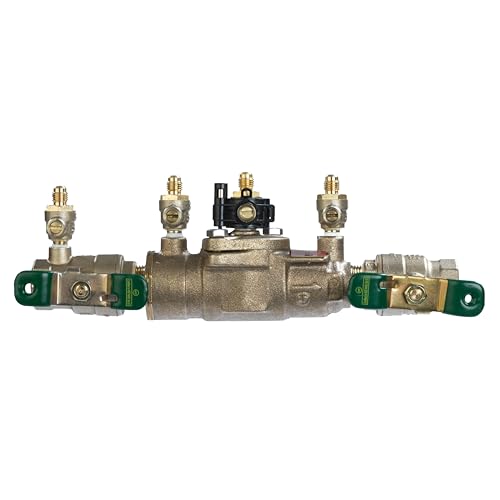

This 3/4 inch double Check Valve assembly backflow preventer helps prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a cast bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, replaceable check discs and seats, and captured springs. The double Check Valve includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for building management systems (BMS), irrigation management systems (IMS), and Wi-Fi networks.

• Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
• Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
• Cast bronze body construction
• Modular compact design
• Replaceable seats and seat discs
• Top entry

Weight	11.2 lb
Connection Size	3/4 in.
Height	6.00 in.
Horse Power	1/3
Length	11.17 in.
Sub Type	Double Check Valve Assemblies
Type	Dual Checks
Width	5.00 in.
Inventory Number	WATT062020
MPN	T062020
