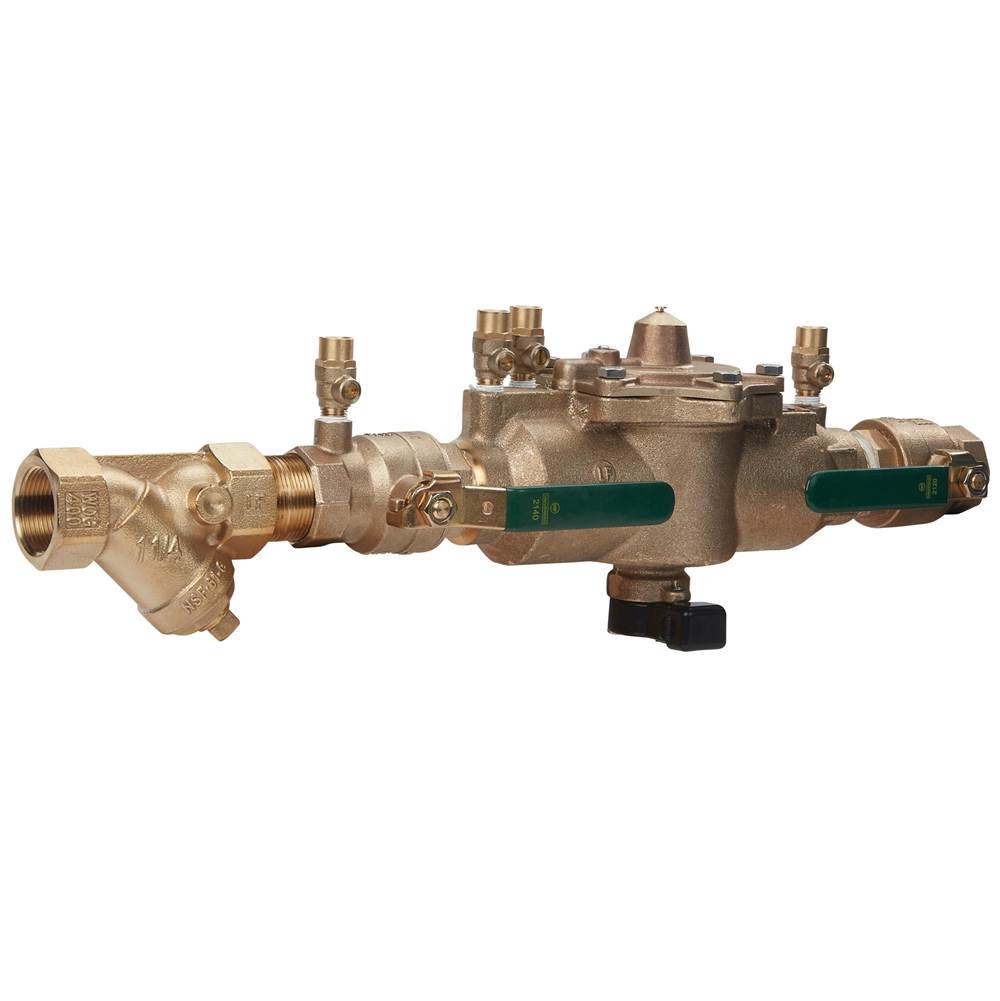

This 1 1/4 inch reduced pressure zone assembly backflow preventer helps prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body and strainer, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent Check Valve s, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements. This backflow assembly includes flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify the user of potential flooding. Add-on sensor connection kits are available for both BMS and cellular communications.

• Features flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Alert features available with add-on sensor connection kit
• Bronze body construction for durability
• NPT inlet and outlet connections
• Quarter turn full port resilient seated ball valve shutoffs
• Single access cover and modular check construction for the ease of maintenance
• Internal relief valve for reduced installation clearances
• Replaceable seats for an economical repair
• Test cocks are screwdriver slotted

Weight	4.3 lb
Connection Size	1-1/4 in.
Height	12.75 in.
Horse Power	1/3
Length	5.88 in.
Type	Reduced Pressure Zone (RPZ) Assemblies
Width	5.88 in.
Inventory Number	WAT88004039
MPN	88004039
