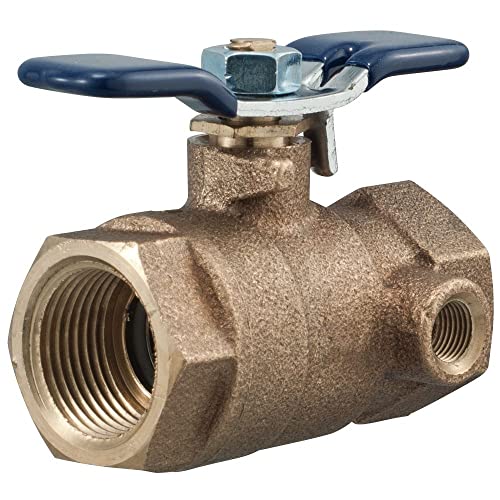

This 1 inch lead free full port tapped ball valve is designed for water service applications. It is ideal for throttling and balancing of nonabrasive fluids where minimum flow is 20 to 100 percent of the valve capacity. The full port design ensures low pressure drop. The valve features a PTFE stem packing seal, thrust washer, seat, and tapped outlets suitable for the installation of a pressure gauge or test cock. The maximum working pressure is 600 psi (41.3 bar) WOG, 125 psi (8.6 bar) WSP.

• Lead free construction
• Full port
• Tee handle
• Side tapped

Weight	0.8 lb
Connection Size	1 in.
Height	1.34 in.
Horse Power	1/3
Length	3.25 in.
Type	Ball Valves
Width	1.90 in.
Inventory Number	WAT781054LL
MPN	781054LL
