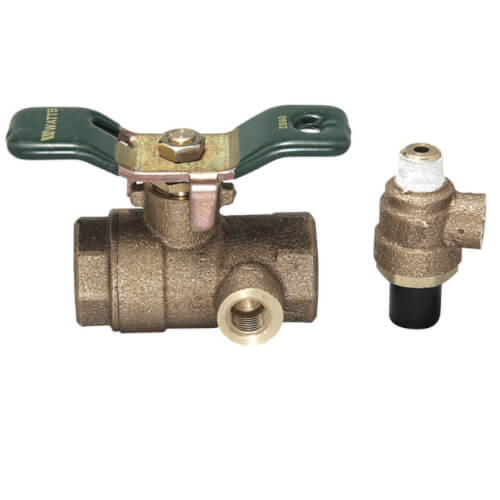

This 1 inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP.

• Bronze body construction with chrome-plated brass ball
• Full port for minimal pressure drop
• Excellent for throttling and balancing applications for non-abrasive liquids
• Two-piece construction

Weight	1.61 lb
Connection Size	1 in.
Height	1.50 in.
Horse Power	1/3
Length	2.81 in.
Type	Ball Valves
Width	9.00 in.
Inventory Number	WAT0792514
MPN	0792514
