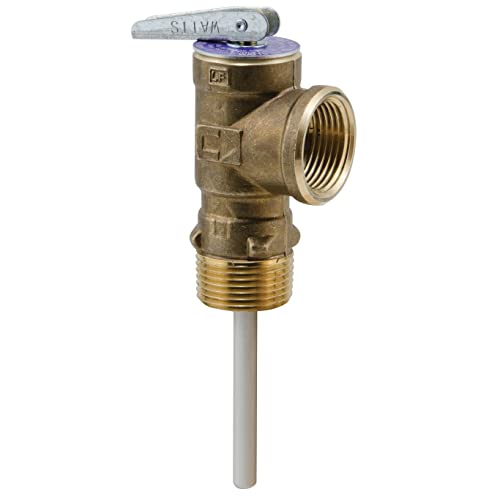

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU per hour. This two in one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, thermo-bonded coating thermostat and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).

• Protects against excessive temperature and pressure during emergency conditions
• ASME rated and CSA listed
• Stainless steel spring
• Lead free copper alloy body construction

Weight	1.0 lb
Connection Size	3/4 in.
Height	4.00 in.
Horse Power	1/3
Length	1.13 in.
Type	Check Valves
Width	1.75 in.
Inventory Number	WAT0121339
MPN	0121339
