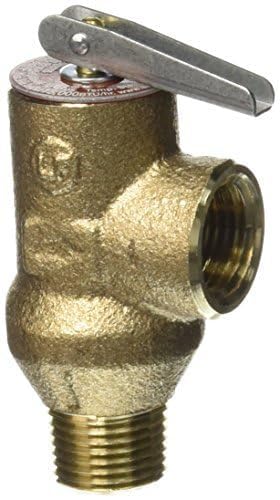

This 1/2 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU /hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper silicon alloy body construction, NPT male inlet and NPT female outlet connections, a unique extended thermostat with special thermo-bonded coating with 4 inch extension and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).

• Lead free copper silicon alloy body construction
• Protects against excessive temperature and pressure during emergency conditions
• Unique thermostat with special thermo-bonded
• Stainless steel spring

Weight	1.0 lb
Connection Size	1/2 in.
Height	4.00 in.
Horse Power	1/3
Length	0.50 in.
Type	Check Valves
Width	0.50 in.
Inventory Number	WAT0121325
MPN	0121325
