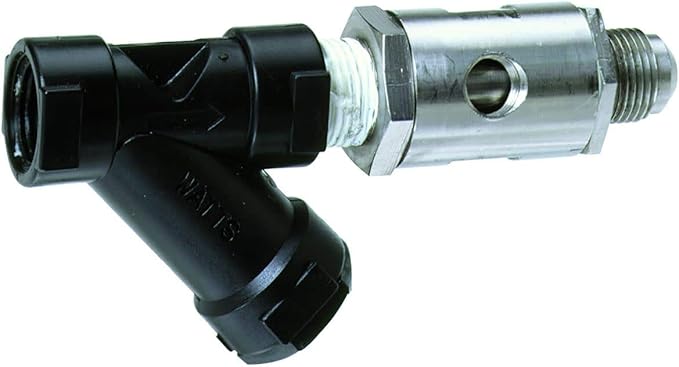

This 3/8 inch dual Check Valve backflow preventer with atmospheric port and strainer for carbonated beverage machines prevents the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to backpressure backflow. It consists of stainless steel body construction with internal rubber components and is designed for continuous or intermittent pressure applications. It has an atmospheric port that provides visual indication of failure of the second check and a wye pattern strainer. It is ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. The connections are female NPT inlet with SAE male flare outlet. Maximum working pressure is 150 psi (10 bar).

• Stainless steel for corrosion resistance
• Includes strainer
• Can be installed vertically or horizontally
• For carbonated beverage machines

Weight	2.5 lb
Connection Size	3/8 in.
Height	4.50 in.
Horse Power	1/3
Length	4.20 in.
Sub Type	Double Check Valve Assemblies
Type	Dual Checks
Width	2.50 in.
Inventory Number	WAT0061657
MPN	0061657
