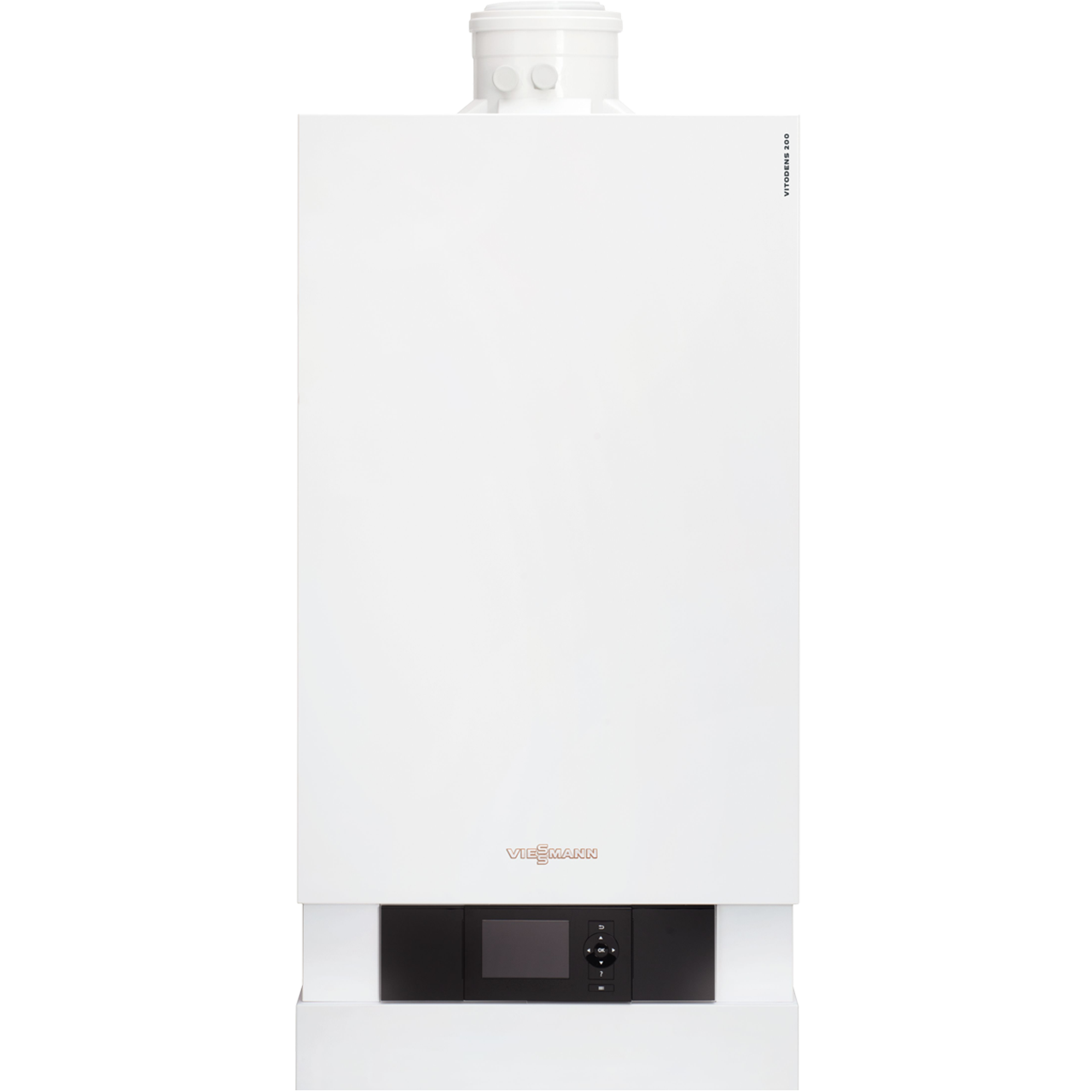

Viessmann Vitodens 200-W 399,000 BTU Gas Fired Wall Mounted Condensing Boiler - B2HA399
Viessmann Vitodens 200-W 399,000 BTU Gas Fired Wall Mounted Condensing Boiler - B2HA399
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Upgrade Your Home Heating with the Viessmann Vitodens 200-W 399,000 BTU Condensing Boiler
Bring high-efficiency heating and powerful performance to larger residential or light commercial systems with a compact wall-mounted design. The Viessmann Vitodens 200-W B2HA-399 (B2HA399) is a 399,000 BTU gas-fired condensing boiler designed to deliver reliable hydronic heating while using energy efficiently. Its stainless steel Inox-Radial heat exchanger, modulating MatriX cylinder burner, and intelligent Lambda Pro combustion management work together for efficient, clean operation. With flexible venting, outdoor reset controls, and the ability to cascade multiple boilers, it's a powerful heating solution built for demanding applications.
Key Features
High-Efficiency Condensing Performance
The Vitodens 200-W extracts additional heat from the combustion process through condensing technology, helping maximize fuel efficiency while delivering dependable hydronic heating.
Intelligent Combustion Control
The modulating MatriX cylinder burner and Lambda Pro combustion management automatically adjust combustion to changing gas qualities and operating conditions for consistent, efficient performance.
Compact Wall-Mounted Design
The wall-mounted cabinet provides up to 399,000 BTU of heating capacity without requiring a traditional floor-standing boiler footprint. Its compact design helps make better use of valuable mechanical room space.
Built for Larger Systems
The B2HA-399 can be used as a single high-output boiler or combined with additional units in a cascade system when greater heating capacity is needed. Outdoor reset control also helps match boiler operation to changing outdoor conditions.
Product Details
- 399,000 BTU maximum input delivers powerful heating for large residential and light commercial applications.
- 93.9% thermal efficiency helps reduce wasted fuel.
- 113-399 MBH input range helps match boiler output to changing heating demand.

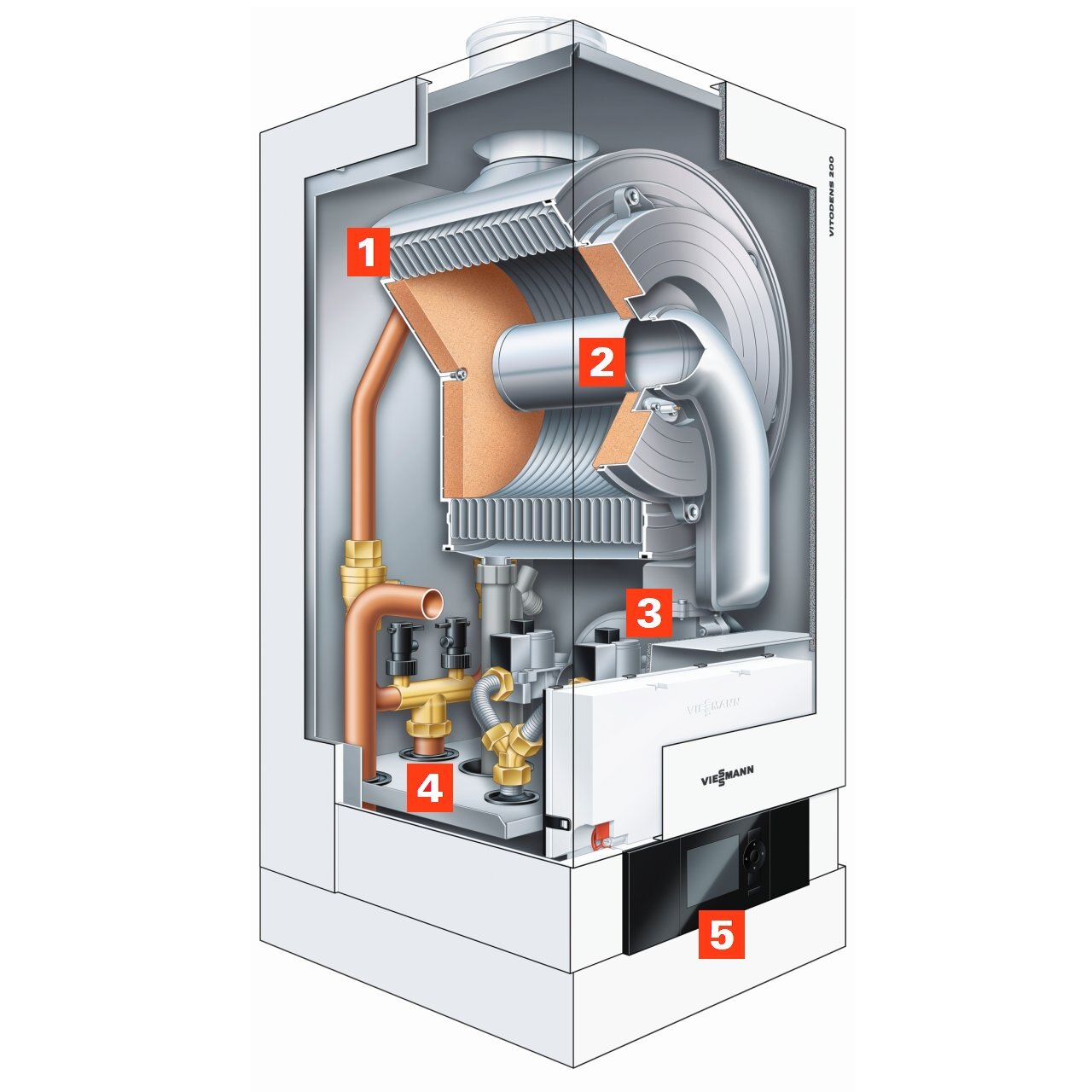

- Stainless steel Inox-Radial heat exchanger provides durable, efficient heat transfer.
- Modulating MatriX cylinder burner delivers clean, efficient combustion.
- Lambda Pro automatically adjusts combustion for changing gas quality.
- Vitotronic 200 control provides outdoor reset and system diagnostics.
- Flexible venting options support a variety of installation configurations.
- Up to eight boilers can be combined in a cascade system for larger heating loads.
- Limited lifetime warranty in residential applications.
Viessmann is a global leader in high-efficiency heating systems, known for durable engineering, advanced condensing technology, and long-lasting hydronic boiler solutions.
Additional Information
- Brand: Viessmann
- MPN: B2HA399
- Series: Vitodens 200-W B2HA-399
- Product Type: Wall-mounted gas-fired condensing boiler
- Fuel Type: Natural gas or liquid propane gas
- Heating Input: 113-399 MBH
- Net AHRI Rating: 323 MBH
- Thermal Efficiency: 93.9%
- Heat Exchanger: Stainless steel Inox-Radial
- Dimensions: 23-1/2" W x 27" D x 44-1/2" H
- Weight: 298 lbs.
- Heating Water Connections: 2" male NPT
- Gas Connection: 1" female NPT
- Electrical: 120V, 60 Hz
- Maximum Operating Pressure: 80 PSI
Vitodens 200-W FAQ
What size home is the Viessmann Vitodens 200-W B2HA-399 designed for?
The B2HA-399 is designed for large residential and light commercial heating applications requiring up to 399,000 BTU of input. The correct boiler size should be determined by a heating load calculation rather than square footage alone.
If you have any questions before purchasing, contact the Plumbing Deals via the live chat feature, email at contact@plumbingdeals.com, or give us a call at 888-682-5956!
How efficient is the Vitodens 200-W B2HA-399?
The B2HA-399 has a 93.9% thermal efficiency rating under ANSI Z21.13/CSA 4.9 conditions. Its condensing design recovers additional heat from the combustion process to improve fuel efficiency compared with conventional non-condensing boilers.
Can the B2HA-399 be used with an indirect water heater?
Yes, the Vitodens 200-W B2HA-399 can provide domestic hot water when paired with a compatible indirect storage tank. The boiler's 2" supply and return connections support integration into larger hydronic heating and domestic hot water systems.
Can multiple Vitodens 200-W boilers be installed together?
Yes, up to eight Vitodens 200-W B2HA boilers can be combined in a cascade system for applications requiring greater heating capacity. The boilers are staged to match changing system demand while providing additional redundancy.
What is the difference between the B2HA-399 and the smaller Vitodens 200-W models?
The B2HA-399 provides substantially more heating capacity than the smaller B2HA models, with a 399,000 BTU maximum input and 323 MBH Net AHRI rating. Its larger 2" heating connections and higher 80 PSI operating pressure also make it suited to larger heating systems.
| Weight | 298.0 lb |
|---|---|
| Collection | Vitodens 200-W |
| Fuel Type | Natural Gas |
| Height | 44.50 in. |
| Horse Power | 1/3 |
| Installation Type | Wall Mount |
| Length | 27.00 in. |
| Vent Type | Direct |
| Voltage | 120V |
| Width | 23.50 in. |
| Inventory Number | VIESB2HA399 |
| MPN | B2HA399 |
| BTU | 399,000 |
