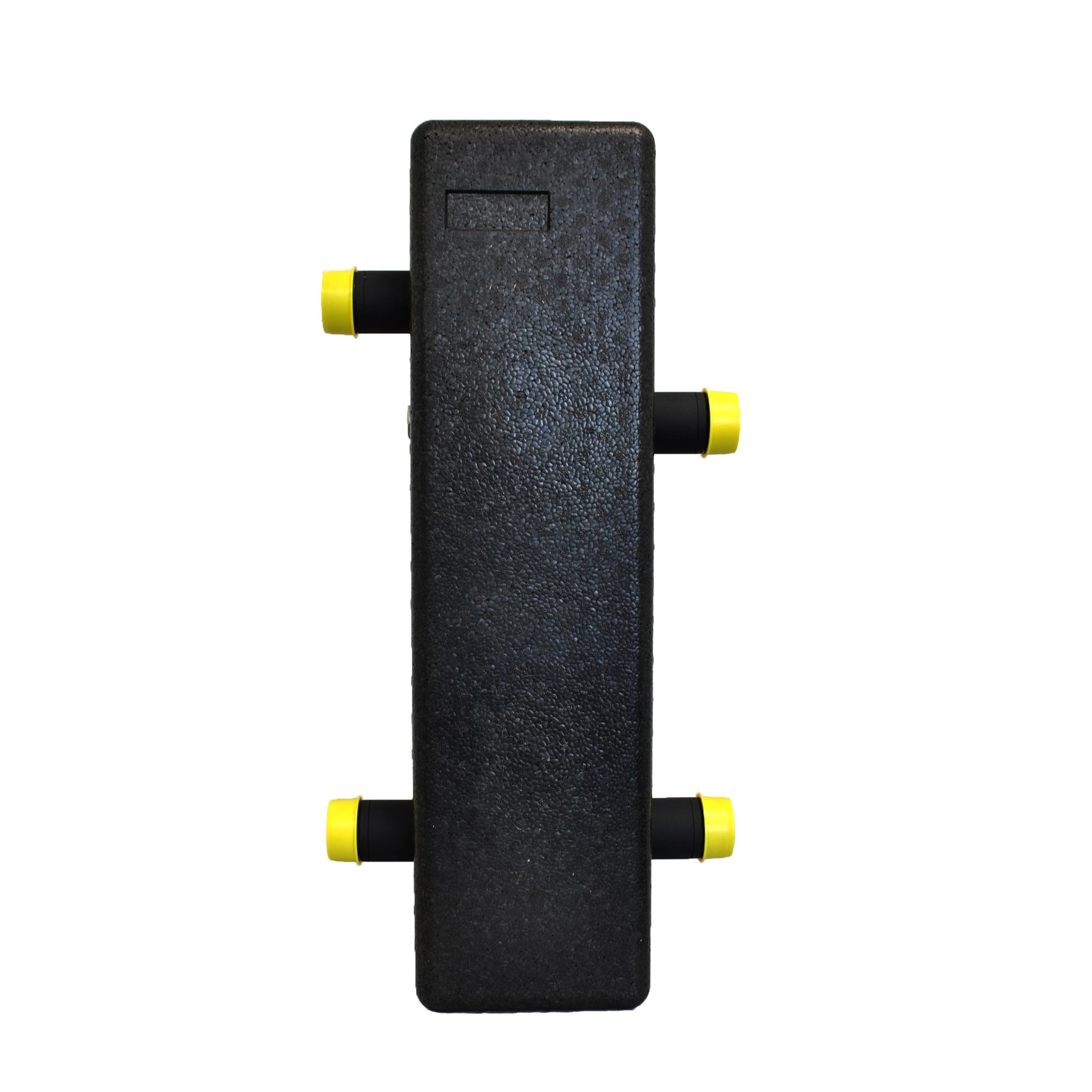

When used in conjunction with the Vitodens 100, or Vitodens 200, boilers, the low-loss header acts as a hydraulic break, decoupling boiler and system circuits from each other.

It is recommended to use the low-loss header in applications in which the total system flow rate exceeds the maximum boiler flow rate.

Viessmann strongly recommends the use of a low-loss header in cases where the system head and flow rates are unknown.

The temperature sensor connection located at the top of the low-loss header ensures low return temperatures to the Vitodens 200, boilers, at all times, increasing operational efficiency.

• The low-loss header helps eliminate air and debris from the heating system

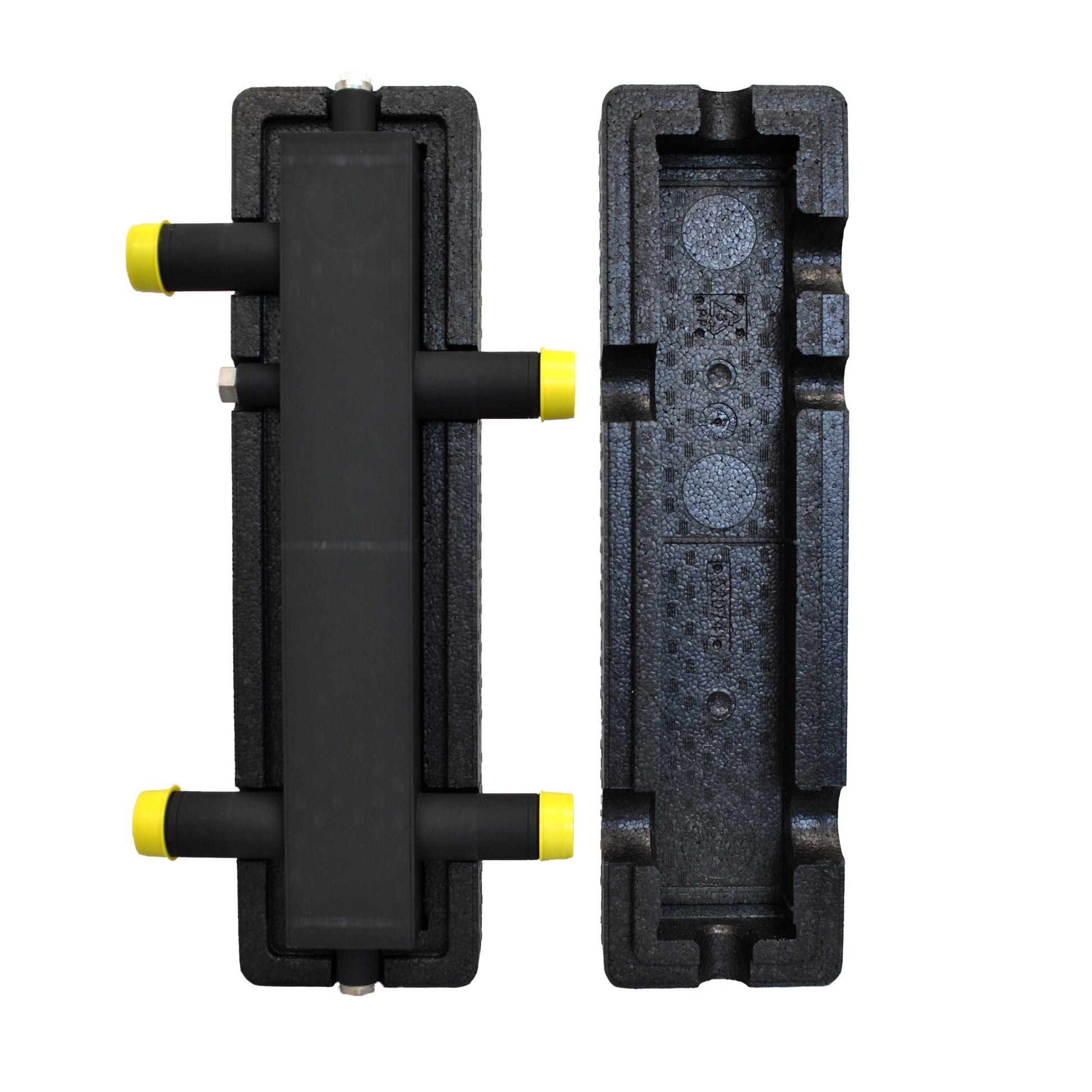

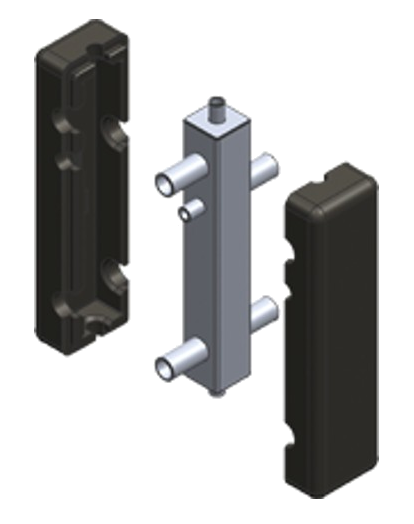

• Includes sensor well, drain plug, air bleed plug, and insulation

Weight	32.0 lb
Height	36.00 in.
Horse Power	1/3
Length	5.50 in.
Room	Utility
Width	12.75 in.
Inventory Number	VIES7498530
MPN	7498530

• Installation Instructions
