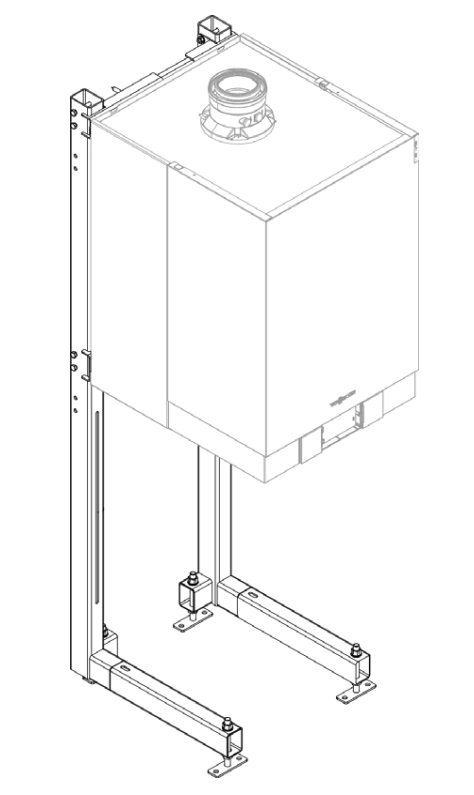

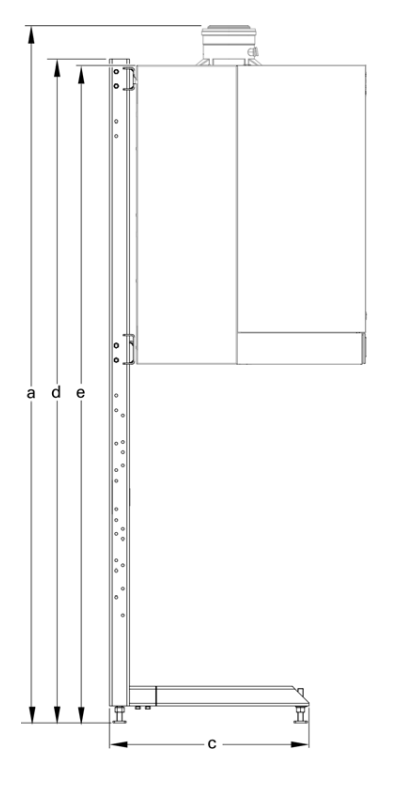

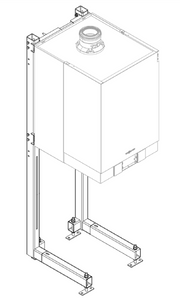

The boiler stand is used for free-standing installation of a single boiler within the mechanical room.When using the boiler stand, ensure that the stand is securely fastened to the floor.Recommended concrete expansion anchors are Hilti model KB-TZ 3/8 x 4 or equivalent.Overall dimensions are 78.5" H x 24.5" D x Variable WidthThe rack is field assembled and contains two legs, upper rack assembly, lower rack assembley, and mounting hardware.For use with: Vitodens 200-W B2HA/B2HB 160-530Submittal

Weight	114.64 lb
Collection	Vitodens 200
Height	78.50 in.
Horse Power	1/3
Length	24.50 in.
Width	24.00 in.
Inventory Number	VIES7658026
MPN	7658026
