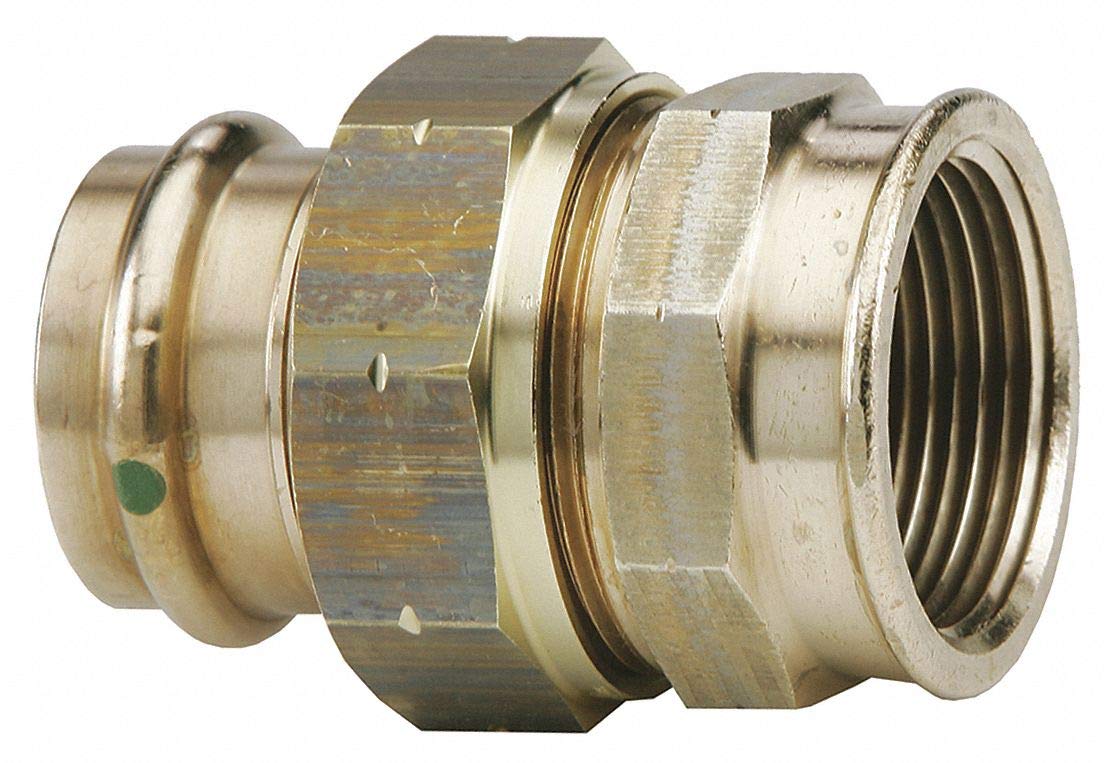

Create a strong, reliable, and watertight seal in seconds. Viega ProPress system allows joining of wet connections. Certified for use in potable water applications. Item: Union Tube Fitting Material: Bronze Fitting Connection Type: Press x Female Pipe Thread Tube Size: 2" x 2" Pipe Size - Pipe Fitting: 2" x 2" Max. Pressure: 200 psi Temp. Range: 0 Degrees to 250 Degrees F Standards: CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, 13D and 13R: Fire Sprinkler Applications, NSF/ANSI 61: Drinking Water System Components - Health Effects, NSF/ANSI 372: Drinking Water System Components - Lead Content, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 61, NSF 372, ULC/ORD 213

• 2" press x female thread union for serviceable transitions
• Low-lead construction ideal for potable systems
• Combines mechanical flexibility with corrosion resistance
• Threaded side connects easily to valves or fittings

Weight	2.903 lb
Collection	ProPress
Connection Size	2 in.
Finish	Bronze
Height	2.78 in.
Horse Power	1/3
Length	7.87 in.
Sub Type	Carbon Steel Fittings
Type	MegaPress Fittings
Width	10.34 in.
Inventory Number	VIE2FEUN
MPN	79725
