Create a strong, reliable, and watertight seal in seconds. Viega ProPress system allows joining of wet connections. Certified for use in potable water applications. Item: 90 Degree Elbow Drop Ear Tube Fitting Material: Bronze Fitting Connection Type: Press x Female Pipe Thread Tube Size: 1/2" x 1/2" Pipe Size - Pipe Fitting: 1/2" x 1/2" Max. Pressure: 200 psi Temp. Range: 0 Degrees to 250 Degrees F Standards: CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, 13D and 13R: Fire Sprinkler Applications, NSF/ANSI 61: Drinking Water System Components - Health Effects, NSF/ANSI 372: Drinking Water System Components - Lead Content, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 61, NSF 372, ULC/ORD 213

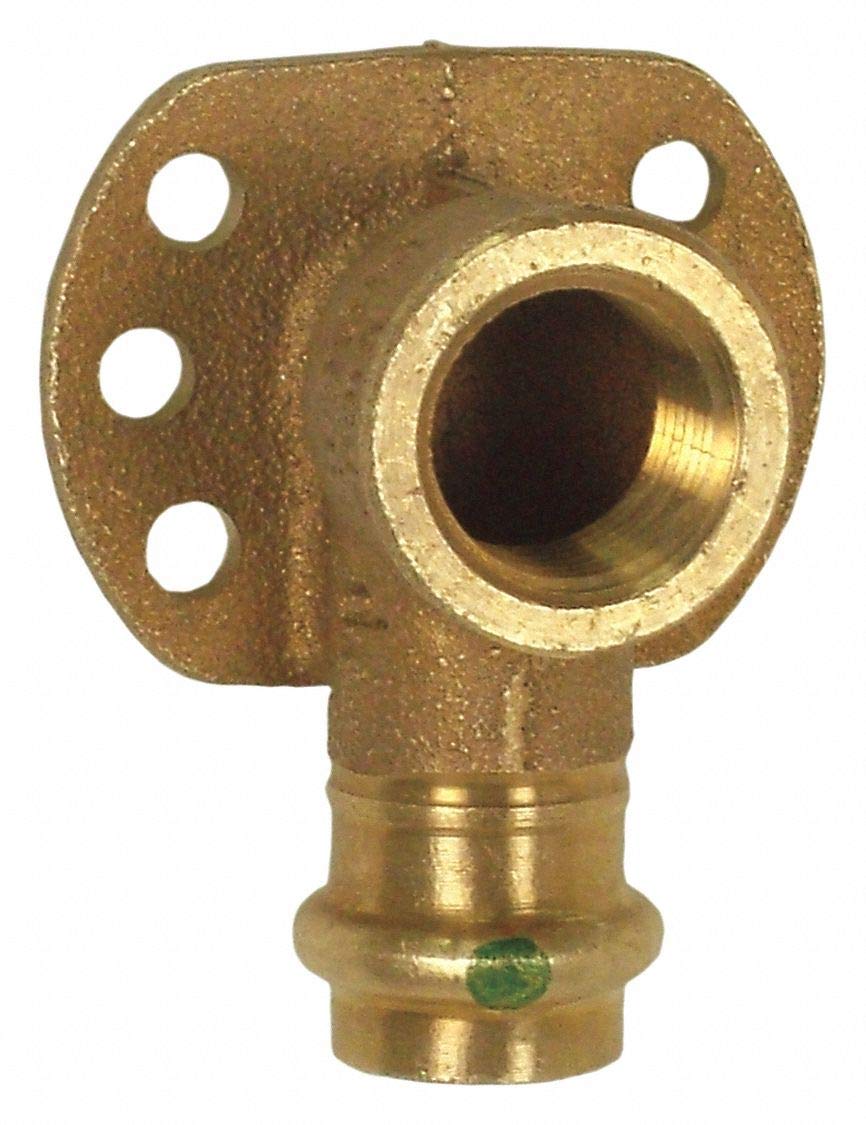

• Item: 90 Degree Elbow Drop Ear
• Tube Fitting Material: Bronze
• Fitting Connection Type: Press x Female Pipe Thread
• Tube Size: 1/2" x 1/2"
• Pipe Size - Pipe Fitting: 1/2" x 1/2"

Weight	1.302 lb
Collection	ProPress
Finish	Bronze
Height	1.77 in.
Horse Power	1/3
Length	5.91 in.
Material	Brass
Sub Type	Carbon Steel Fittings
Type	MegaPress Fittings
Width	10.34 in.
Inventory Number	VIE1290WING
MPN	79190
