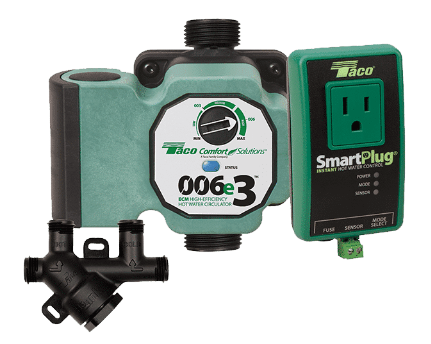

Taco Hot-LinkPlusreduces the time it takes for hot water comfort to reach showers and faucets. The Hot-LinkPlus features a smart circulator that learns household hot water usage patterns and makes hot water available at the same times the following week. If water usage changes the Hot-LinkPlus circulator adapts for you. It never needs programming! When no hot water usage is dectected there?s even an automatic vacation mode. The average family can save up to 12,000 gallons of water per year and it?s easy to retrofit to an existing plumbing system. Designed for plumbing systems that do not have a dedicated return line.

• The Hot-LinkPlus System includes a Taco circulator designed specifically for use with the Taco Hot-Link Valve. The circulator and valve are suitable for most residential homes with hot water supply lines up to 100 feet.

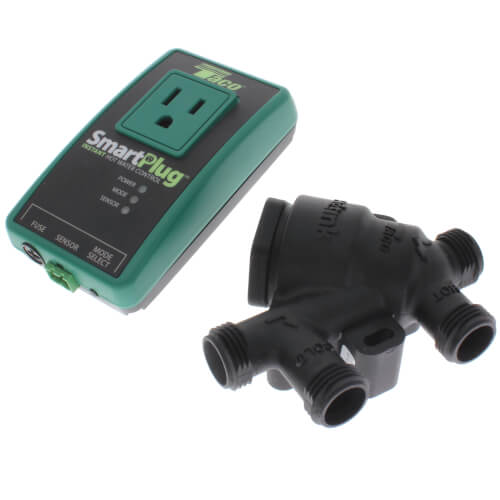

• The unique Hot-Link Valve is the key to the system. Made of durable high temperature polymer, it creates an easy-to install return loop through the cold line from the furthest fixture back to the water heater. An integral thermal sensor disc closes when hot water reaches the valve. An internal flow check prevents cold water from backing into the hot line. Stainless steel braided flex hoses complete the installation.
• Includes Hot Link Valve 1/2" NPT

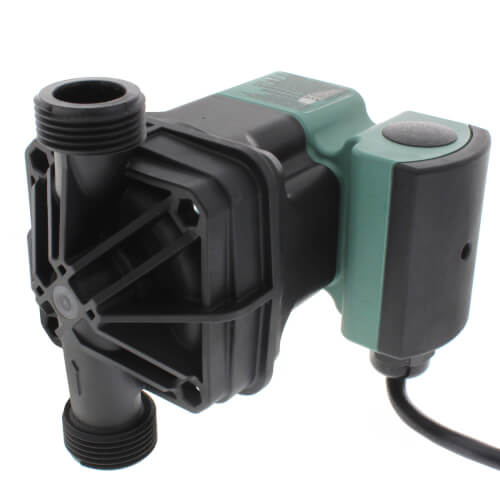

• Includes HLS-2 Hot Link Circulator
• Includes 2 Braided Flex Hoses
• Includes (2) 3/4" Half-Unions (Male & Female)
• Motor Voltage: 115V
• Max Shut-off Head: 13'
• Max Flow: 11 GPM
• Max Operating Pressure: 150 PSI
• Maximum Operating Temperature: 203 Degrees
• Composite casing designed for open loop potable water systems and closed hydronic systems
• Not suitable for chilled water
• For use with water or up to 50% water/glycol solution in closed hydronic systems
• Composite Impeller
