The sensor is wax-filled and the wax volume varies according to ambient temperature. The volume changes are transmitted to the valve stem via a liquid capillary system. The valve body has a return spring which closes the valve when the stem is under low pressure. When the force from the sensor and the return spring are balanced to the room temperature selected, the valve disc stops in that position to allow a certain amount of water or steam to flow through the valve. Temperature changes cause the valve disc to change position and thereby continuously modulate the flow so that the room temperature is maintained at the desired temperature. The unit is secured against damage from over pressure by a pressure absorbing spring.

• Temp. Range: 46 - 80F
• Hystersis: 0.9F
• Heat Transfer: 1.1F (Valve Housing Sensor)
• Dead Time: 0.8 Minutes
• Max. Differential Pressure: 20 psi
• Suggested Differential Pressure = 0.5 to 2.9 psi
• Max. Water Temp.: 250°F
• Max. Storage & Ambient Temp.: 122°F
• Max. Steam Pressure: 15 psi
• Max. Movement: 0.125

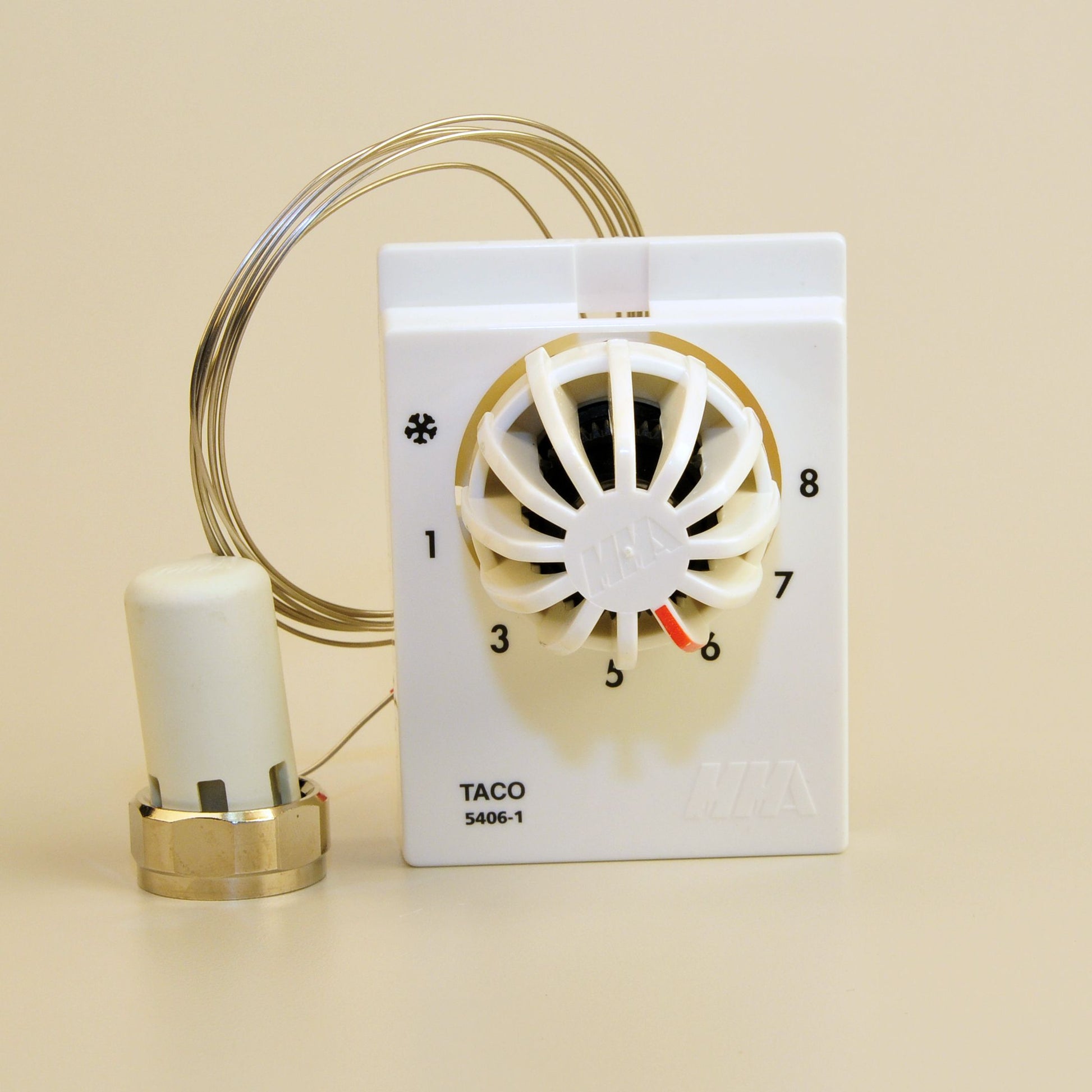

• Dial Settings:
• 0 = Off
• * = 46F Frost Protection
• 1 = 54F
• 3 = 61F
• 5 = 68F
• 6 = 72F
• 7 = 76F
• 8 = 80F
• Product Overview
• Heat-Gard Overview

Weight	4.0 lb
Height	3.50 in.
Horse Power	1/3
Length	1.90 in.
Room	Utility
Width	2.90 in.
Inventory Number	TAC5406
MPN	5406
