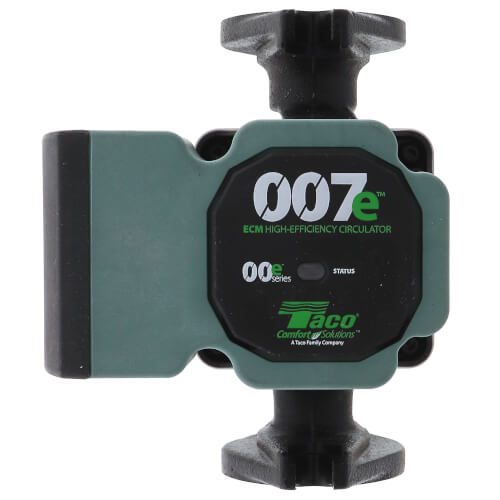

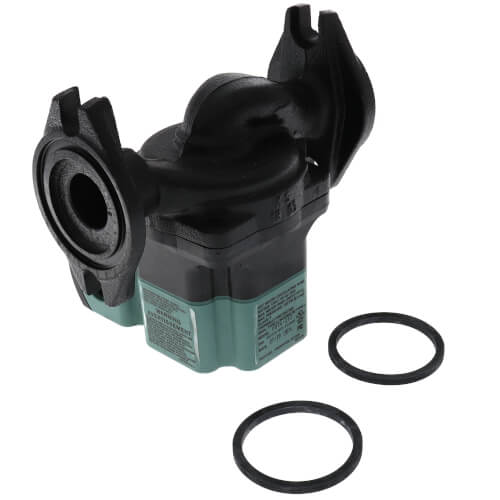

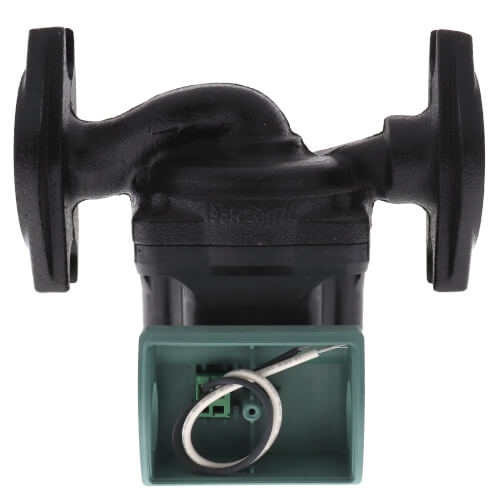

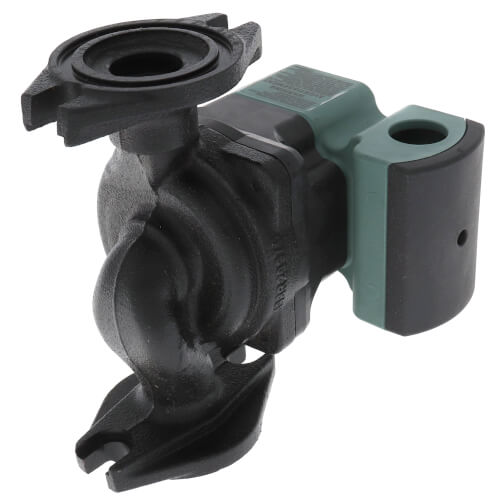

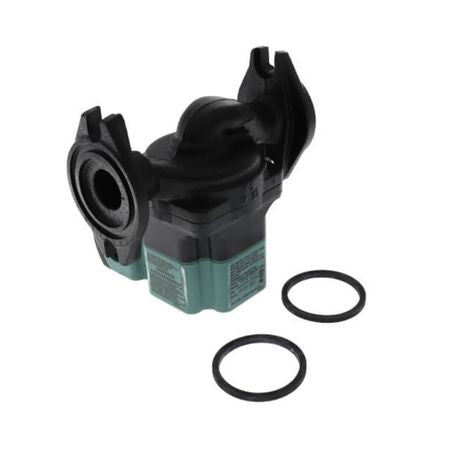

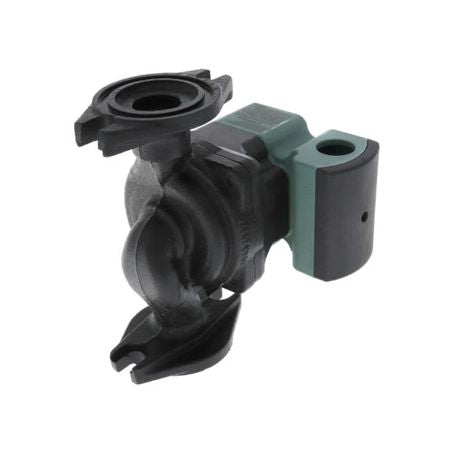

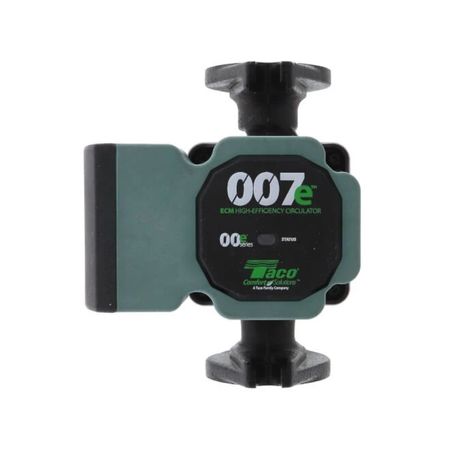

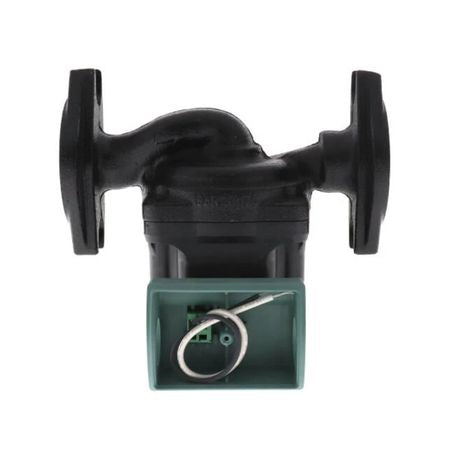

Taco 007E-2F2 EMC High Efficiency Circulator Pump
Taco 007E-2F2 EMC High Efficiency Circulator Pump
Available in stock (21).
Couldn't load pickup availability
High-Efficiency Circulation With the Taco 007e-2F2 ECM Circulator Pump
Upgrade a hydronic heating system with efficient, variable-speed circulation designed to use less electricity without sacrificing the performance of the proven Taco 007. The Taco 007e-2F2 (007e-2F2) is a high-efficiency wet rotor circulator with an ECM permanent magnet motor that automatically adjusts performance to system demand. Its cast iron construction, Integral Flow Check, SureStart technology, and whisper-quiet operation make it a dependable choice for closed-loop hydronic systems. With up to 85% less power consumption than comparable AC circulators, it's built to deliver efficient circulation with lower operating costs.
Key Features
High-Efficiency ECM Motor
The ECM permanent magnet motor uses up to 85% less electricity than equivalent AC permanent split capacitor circulators. Variable-speed operation helps match pump performance to system demand instead of running at one fixed speed.
Smart System Protection
SureStart automatically works to free a locked rotor and purge air from the pump, helping prevent common startup issues. BIO Barrier technology also helps protect the circulator from system contaminants.
Built-In Flow Check
The Integral Flow Check helps prevent unwanted gravity flow and reverse circulation when the pump isn't running. Having the check built into the circulator eliminates the need for a separate in-line flow check.
Quiet, Easy-to-Service Design
The compact wet rotor design operates quietly in residential heating systems, while the replaceable cartridge allows the pump's moving components to be serviced without replacing the entire circulator.
Product Details
- Uses up to 85% less electricity than comparable AC circulators
- Variable-speed ECM motor automatically adjusts to changing system demand
- ECM performance is comparable to the proven Taco 007 circulator
- SureStart automatically helps free locked rotors and purge air from the pump
- BIO Barrier helps protect the circulator from system contaminants
- Integral Flow Check helps prevent unwanted gravity flow and reverse circulation
- Whisper-quiet operation is well suited to residential heating systems
- Double-insulated design requires no ground wire
- Up to 16 GPM flow and 10 feet of head support a wide range of hydronic applications
- 3-year manufacturer warranty
For over 100 years, TACO has been innovating hydronic heating, cooling, and plumbing solutions, offering high-efficiency pumps, boiler accessories, and pipe fittings.
Additional Information
- Brand: Taco
- MPN: 007e-2F2
- Series: 007e ECM
- Product Type: Variable-speed ECM circulator pump
- Application: Closed-loop hydronic heating systems
- Material: Cast iron
- Motor Type: ECM permanent magnet
- Flow Range: 0-16 GPM
- Head Range: 0-10 ft.
- Electrical: 120V, 60 Hz, 1 Phase, 0.54A maximum
- Maximum Operating Power: 44W
- Motor Speed: 1,590-4,830 RPM
- Minimum Fluid Temperature: 36°F
- Maximum Fluid Temperature: 230°F
- Maximum Working Pressure: 125 PSI
Check out our Recirculation Pumps Guide to understand how these systems work, compare different types, and find the right solution for your application.
Taco 007e-2F2 FAQ
How does the Taco 007e's variable-speed operation work?
The Taco 007e adjusts its motor speed to provide the circulation needed by the hydronic system rather than operating at one fixed speed. This helps the pump use less electricity when full circulation capacity isn't required.
What does SureStart do on the Taco 007e?
SureStart automatically attempts to free a locked rotor and purge air from the pump when needed. This helps the circulator recover from common startup conditions that could otherwise prevent normal operation.
What does BIO Barrier do?
BIO Barrier helps protect the Taco 007e circulator from contaminants that can be present in hydronic heating systems. This added protection supports reliable operation in closed-loop systems.
How do I know if the Taco 007e-2F2 is the right size circulator?
The 007e-2F2 should be selected according to the system's required flow rate and total head loss rather than motor size alone. It provides up to 16 GPM and 10 feet of head, so the pump curve should be matched to the calculated resistance of the system.
If you have questions or need help choosing a circulator, then the Plumbing Deals team can help! Use the live chat feature, email at contact@plumbingdeals.com, or give us a call at 888-682-5956!
Does the Taco 007e-2F2 need a separate check valve?
No, the 007e-2F2 includes an Integral Flow Check that helps prevent unwanted gravity flow and reverse circulation. This built-in check eliminates the need for a separate in-line flow check in compatible applications.
| Weight | 6.0 lb |
|---|---|
| Height | 6.38 in. |
| Horse Power | 1/3 |
| Length | 6.00 in. |
| Room | Utility |
| Width | 5.00 in. |
| Inventory Number | TAC007E2 |
| MPN | 007E-2F2 |
