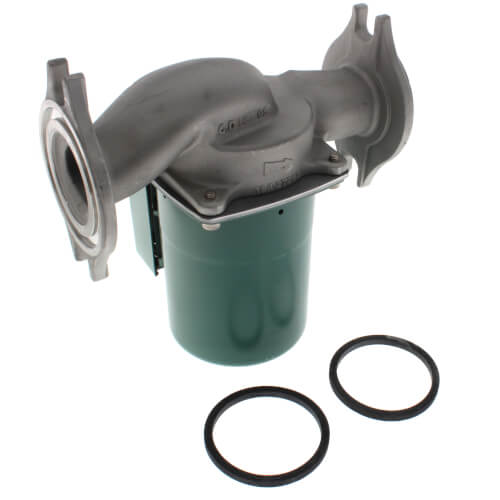

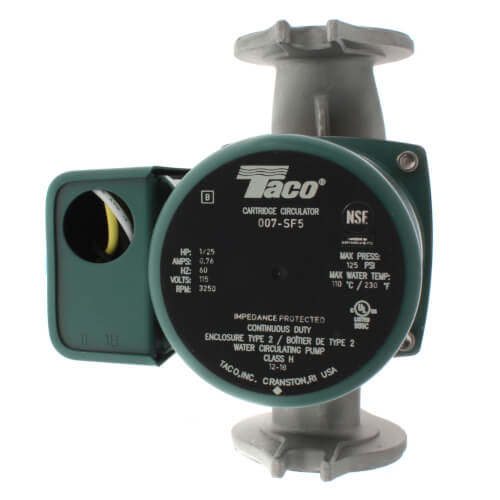

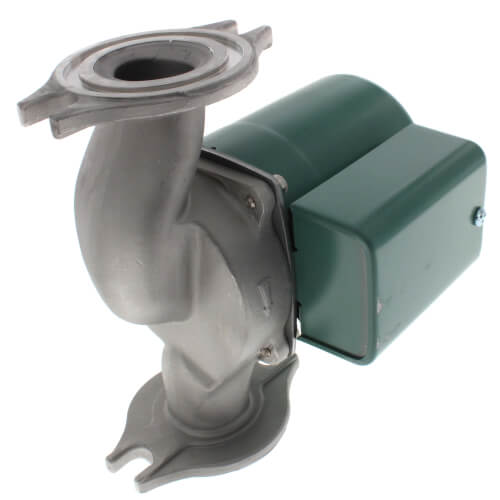

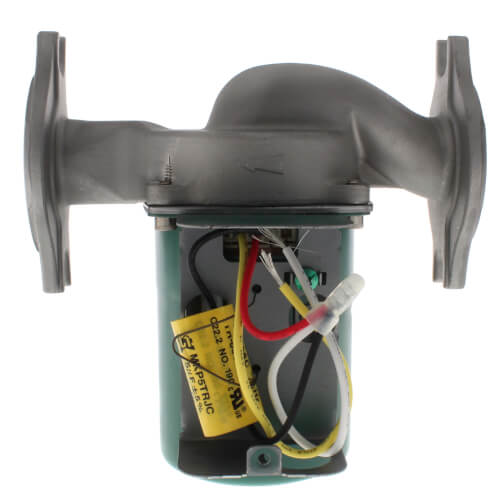

The Taco 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems. Stainless Steel construction with universal flanged connections. The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit. Ideal for a wide range of applications.

• Motor Voltage: 115V
• Max Flow: 23 GPM
• Max Head: 10'
• Max Operating Temp: 240 Degrees
• Max Operating Pressure: 125 PSI
• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2 Flanged
• High Capacity Output
• Quiet, Efficient Operation
• Direct Drive-Low Power Consumption
• Replaceable Cartridge Design
• Self lubricating and no mechanical seal means this pump is maintenance free
• Universal flange to flange dimensions
• Stainless Steel Construction

Weight	7.0 lb
Height	4.75 in.
Horse Power	1/3
Length	6.38 in.
Room	Utility
Voltage	115V
Width	6.38 in.
Inventory Number	TAC007SF5
MPN	007-SF5
