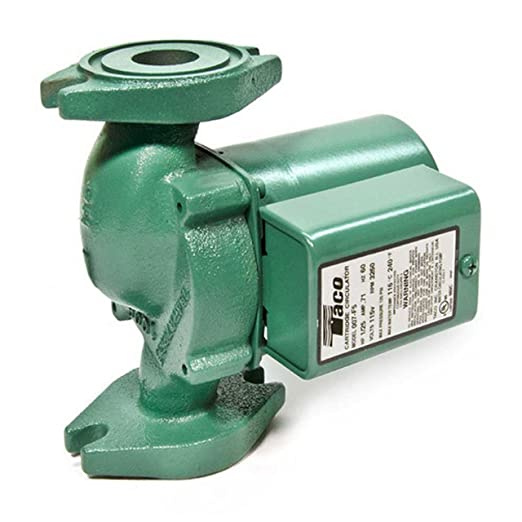

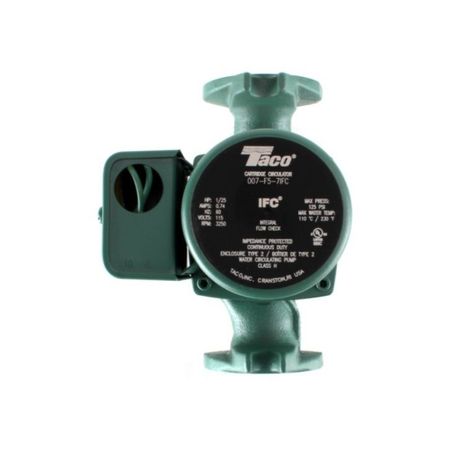

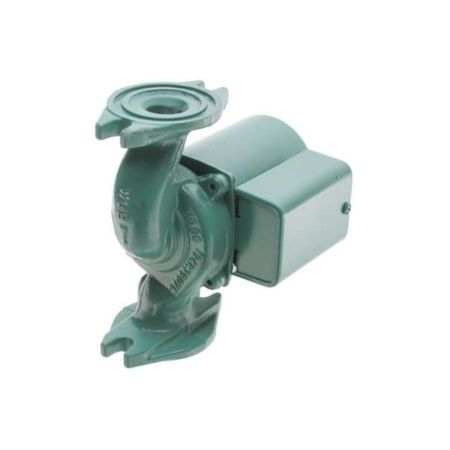

Taco 007-F5-7IFC Cast Iron Circulator with Integral Flow Check, 1/25 HP
Taco 007-F5-7IFC Cast Iron Circulator with Integral Flow Check, 1/25 HP
Available in stock (25).
Couldn't load pickup availability
Reliable Hydronic Circulation With the Taco 007-F5-7IFC Circulator Pump
Keep hydronic heating systems circulating efficiently with a proven pump designed for dependable, quiet performance. The Taco 007-F5-7IFC (007-F5-7IFC) is a 1/25 HP cast iron circulator with an Integral Flow Check that helps prevent unwanted gravity flow without requiring a separate check valve. Its replaceable cartridge makes field service straightforward, while the direct-drive, self-lubricating design provides efficient operation with minimal routine maintenance. It's a versatile choice for radiant heating, hydronic systems, hydro-air fan coils, and indirect water heaters.
Key Features
Built-In Flow Check
The Integral Flow Check helps prevent unwanted gravity flow and reverse circulation when the pump isn't running. Because it's built into the circulator, there's no need for a separate in-line check valve.
Efficient, Quiet Operation
The 1/25 HP direct-drive motor provides dependable circulation while using relatively little power. Double-insulated construction also helps keep operation quiet in residential heating systems.
Easy Field Service
The replaceable cartridge contains the pump's moving components, allowing the circulator to be serviced without replacing the entire assembly. Self-lubricating bearings also eliminate routine lubrication.
Versatile Hydronic Applications
The 007 is designed for a wide range of hydronic applications, including radiant heating, hydro-air fan coils, indirect water heaters, and zoned heating systems.
Product Details
- Integral Flow Check eliminates the need for a separate in-line check valve
- 1/25 HP motor delivers efficient circulation with low power consumption
- Up to 17 GPM flow supports a wide range of hydronic applications
- Up to 8.5 feet of head provides dependable circulation for lower-head systems
- Replaceable cartridge design makes field service easier and more economical
- Self-lubricating design eliminates routine lubrication
- No mechanical seal means fewer components to maintain
- Quiet operation makes it well suited to residential heating systems
- Cast iron construction provides durable performance in hydronic heating applications
- 3-year manufacturer warranty
For over 100 years, TACO has been innovating hydronic heating, cooling, and plumbing solutions, offering high-efficiency pumps, boiler accessories, and pipe fittings.
Additional Information
- Brand: Taco
- MPN: 007-F5-7IFC
- Series: 00 Series
- Product Type: Cast iron cartridge circulator with Integral Flow Check
- Application: Hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, and zoned heating systems
- Material: Cast iron
- Horsepower: 1/25 HP
- Flow Range: 0-17 GPM
- Head Range: 0-8.5 ft.
- Electrical: 115V, 60 Hz, 1 Phase, 0.71A
- Motor Speed: 3,250 RPM
- Minimum Fluid Temperature: 40°F
- Maximum Fluid Temperature: 230°F
- Maximum Working Pressure: 125 PSI
Check out our Recirculation Pumps Guide to understand how these systems work, compare different types, and find the right solution for your application.
Taco 007-F5-7IFC FAQ
What does the Integral Flow Check do on the Taco 007?
The Integral Flow Check prevents unwanted gravity flow and reverse circulation through the pump when it isn't operating. Since the check valve is built into the circulator casing, it eliminates the need for a separate in-line flow check and can reduce installation complexity and pressure loss.
How do I know if the Taco 007-F5-7IFC is the right size circulator?
The Taco 007 should be selected based on the system's required flow rate and total head loss, not horsepower alone. It provides up to 17 GPM and 8.5 feet of head, so the pump curve should be matched to the calculated resistance of the piping, fittings, heat emitters, and other components.
If you have questions or need help choosing a circulator, then the Plumbing Deals team can help! Use the live chat feature, email at contact@plumbingdeals.com, or give us a call at 888-682-5956!
Can the Taco 007-F5-7IFC be used for radiant floor heating?
Yes, the Taco 007-F5-7IFC is designed for hydronic and radiant heating applications. Its flow and head capabilities make it a common choice for circulating heated water through radiant loops and other hydronic heat emitters.
Why does the Taco 007 use a replaceable cartridge?
The replaceable cartridge allows the pump's moving components to be serviced without replacing the entire circulator. This can make future repairs faster and less expensive than replacing a complete pump assembly.
Can the Taco 007-F5-7IFC be used with an indirect water heater?
Yes, Taco lists indirect water heaters among the applications for the 007 circulator. The pump should still be selected based on the required flow and head for the specific indirect water heater and connecting piping.
| Weight | 6.2 lb |
|---|---|
| Height | 7.00 in. |
| Horse Power | 1/3 |
| Length | 5.00 in. |
| Room | Utility |
| Width | 4.00 in. |
| Inventory Number | TAC007F57IFC |
| MPN | 007-F5-7IFC |
