Upgrade to the TACO 006e3 ECM High-Efficiency Hot Water Circulation Pump

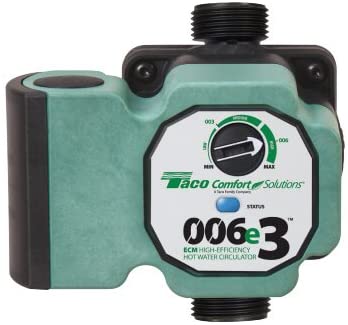

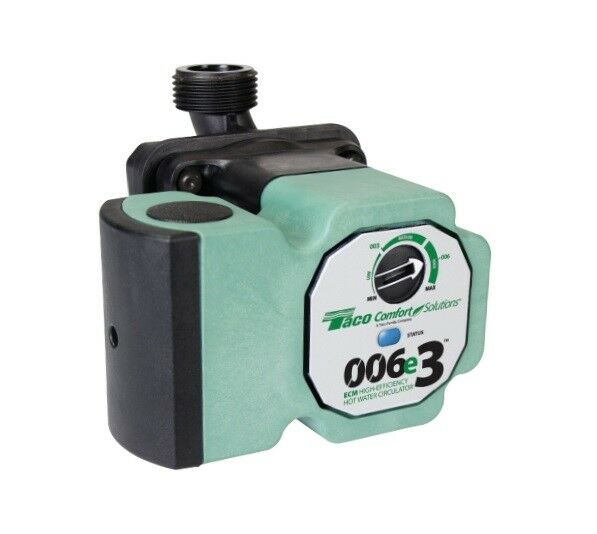

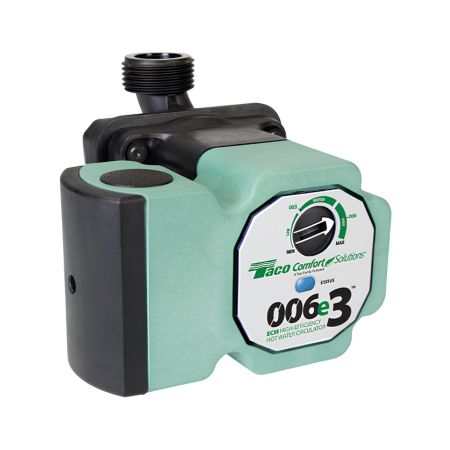

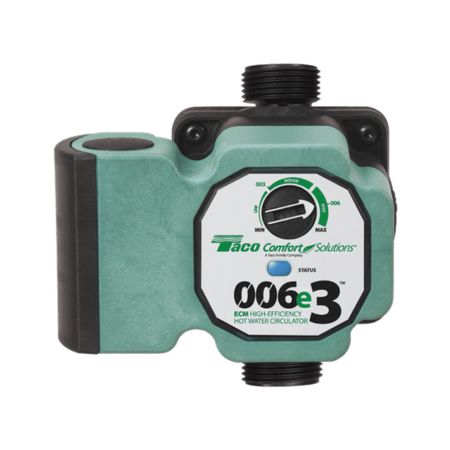

The TACO 006e3 ECM High-Efficiency Hot Water Circulator (006e3) is an infinitely variable fixed speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. It is perfect for hot water recirculation and hydronic heating applications. With 3 easy settings, the 006e3® ECM High-Efficiency Hot Water Circulator delivers performance, reliability and ease of installation that made the 00® famous.
Key Features
High-Efficiency ECM Motor
The permanent-magnet ECM motor delivers efficient, quiet circulation while using up to 85% less electricity than conventional circulators of comparable size. The motor is also thermally protected for dependable operation.
Adjustable Performance

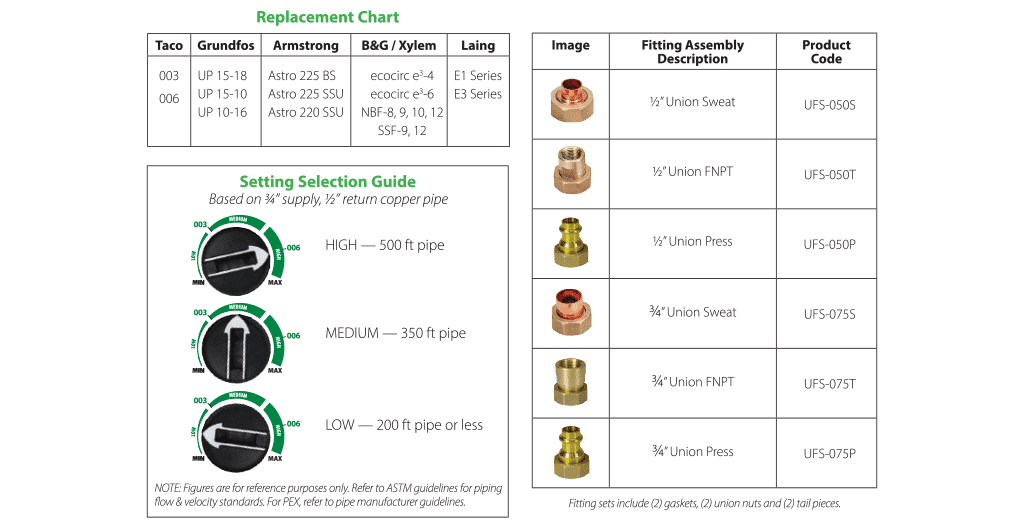

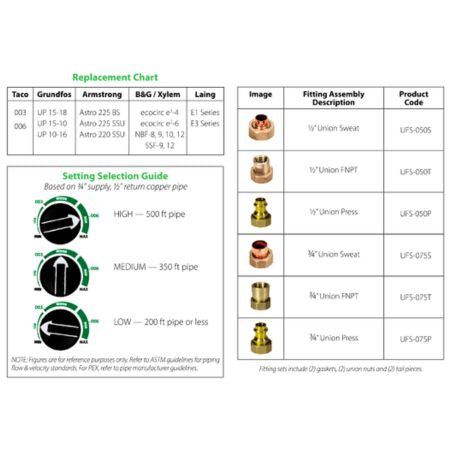

A simple dial provides Low, Medium, and High settings, with marked reference points for matching the performance of Taco 003 and 006 circulators. The variable fixed-speed range allows installers to fine-tune circulation to the system.
SureStart® Automatic Unblocking
SureStart® automatically helps purge air and clear pump blockages during startup, helping the circulator get back to normal operation without requiring manual intervention. The wet-rotor construction and compact composite design provide whisper-quiet operation while making the circulator easier to fit into tight mechanical spaces.
Versatile Hot Water Circulation

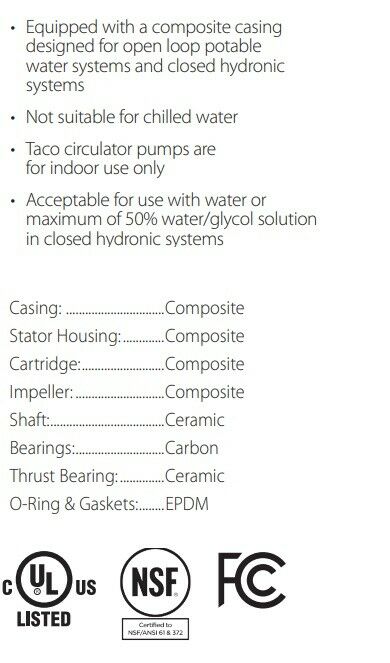

The 006e3 is designed for open-loop domestic hot water recirculation and closed hydronic systems. Its composite casing is suitable for open-loop potable water applications, while the pump can also operate with water or up to 50% water/glycol solution in closed hydronic systems.
Product Details
- High-efficiency ECM permanent-magnet motor
- Wet-rotor circulator design
- Easy installation
- Compact design for tight spaces
- Three speed settings: Low, Medium, High
- Infinitely variable fixed-speed settings between minimum and maximum
- Pre-marked 003 and 006 performance settings
- SureStart® automatic unblocking and air purging
- Whisper-quiet operation
- Three-color LED operating and diagnostic indicator
- Optional 006e3LC model with pre-wired line cord
- Fittings sold separately
- 3-Year Limited Warranty
Additional Information
- Brand: TACO
- MPN: 006e3
- Series: 00e®
- Material: Composite, Ceramic
- Max Flow: 11 GPM
- Max Shutoff Head: 13 ft.
- Max Operating Pressure: 150 PSI
- Voltage: 120V
- Frequency: 60 Hz
- Phase: Single Phase
- RPM: 1,590-4,830

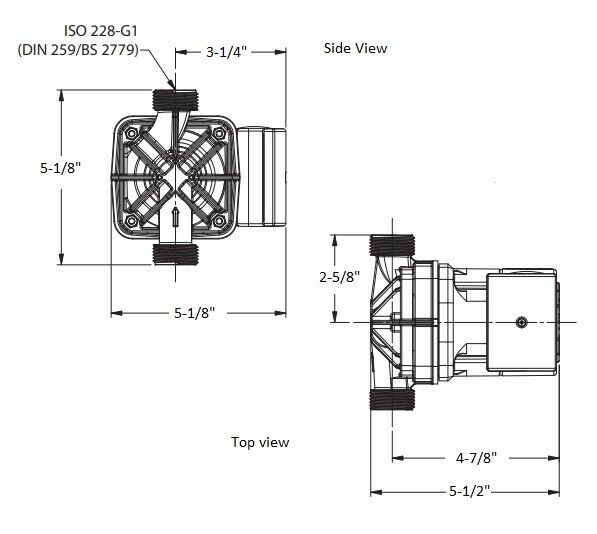

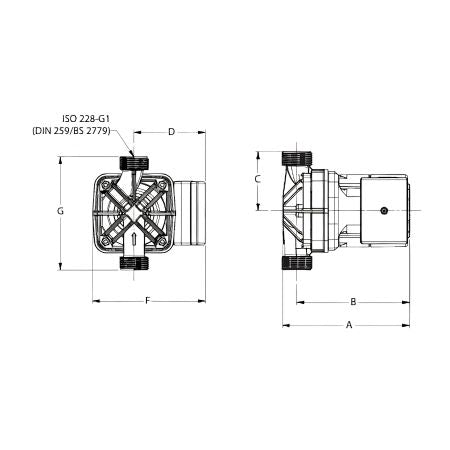

- Connection: ISO 228-G1 / 1" union
TACO 006e3 ECM High-Efficiency Hot Water Circulation Pump FAQ
What is the Taco 006e3 circulator pump used for?
The Taco 006e3 is designed for open-loop domestic hot water recirculation and closed hydronic systems. In domestic hot water applications, it helps circulate heated water through the system so hot water is available more efficiently at fixtures. It can also circulate water or up to a 50% water/glycol solution in compatible closed hydronic systems.
How does the ECM motor improve efficiency?
The electronically commutated permanent-magnet motor is designed to deliver the required circulation performance while using substantially less electricity than conventional circulators. Taco states that the 006e3's ECM motor can use up to 85% less electricity than conventional circulators of the same size.
How do you adjust the Taco 006e3 pump?
The built-in dial provides Low, Medium, and High settings, with additional variable fixed-speed settings between minimum and maximum. The dial also includes reference points corresponding to Taco 003 and 006 performance, making it easier to select an appropriate setting for the system.
Can the Taco 006e3 be used for domestic hot water recirculation?
Yes. The 006e3 is specifically designed for open-loop domestic hot water recirculation and is equipped with a composite casing intended for potable water applications. It can be used in systems with a dedicated return line and is also used in Taco's broader hot water recirculation solutions.
Is the Taco 006e3 difficult to install?
The compact design, simple adjustment dial, multiple connection options, and double-insulated construction are intended to make installation straightforward. However, the correct piping arrangement, pump orientation, fittings, and electrical connection depend on the application and should follow Taco's installation instructions and applicable local codes. If you have questions about compatibility, sizing, or installation, contact Plumbing Deals through the live chat feature, email at contact@plumbingdeals.com, or call at 888-682-5956!
| Weight | 5.5 lb |
|---|---|
| Height | 8.00 in. |
| Horse Power | 1/3 |
| Length | 8.00 in. |
| Room | Utility |
| Width | 8.00 in. |
| Inventory Number | TAC006E3 |
| MPN | 006e3 |
