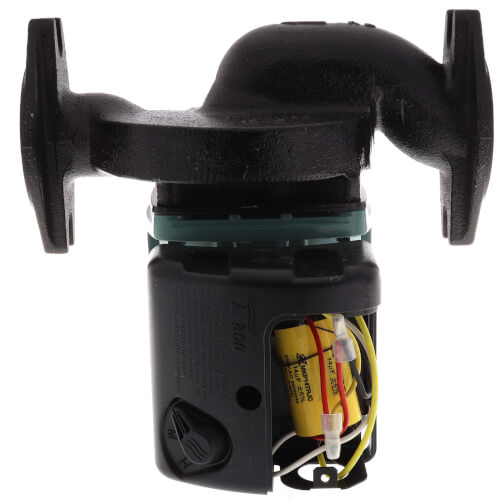

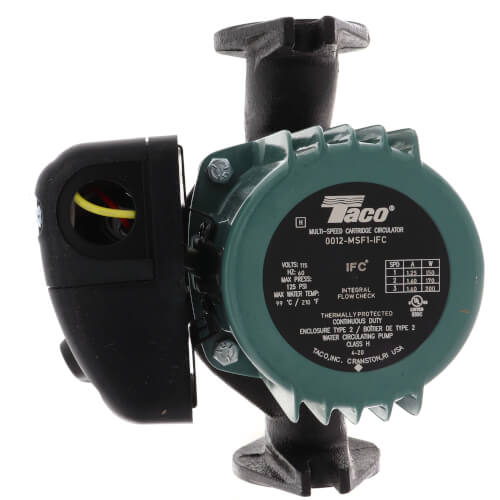

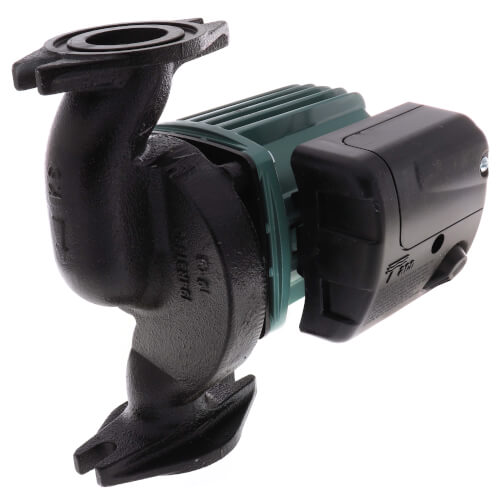

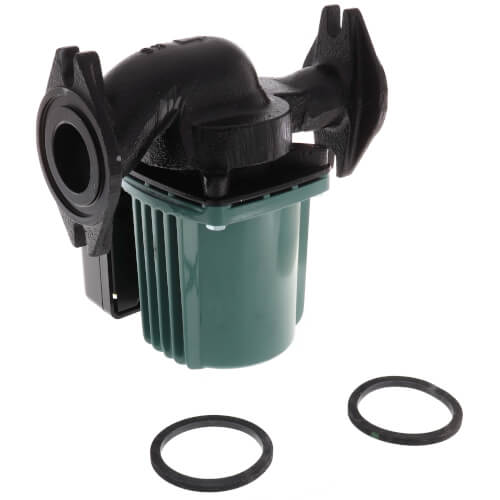

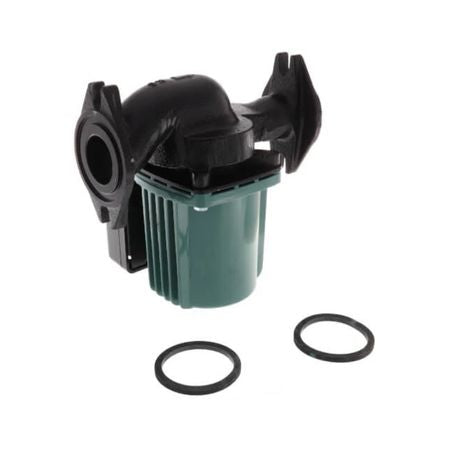

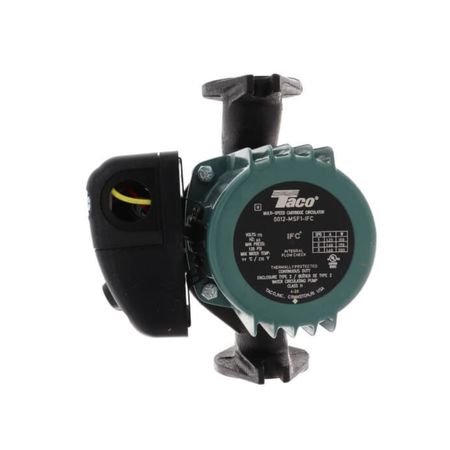

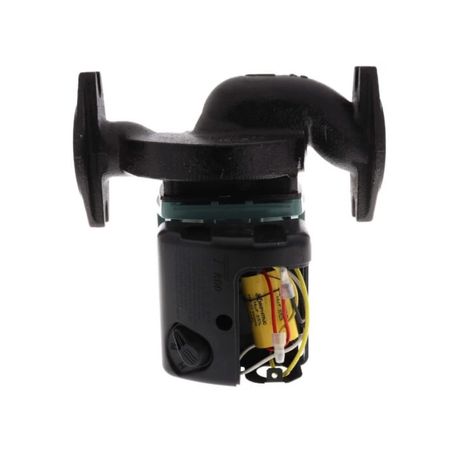

Taco 0012-MSF2-IFC 3 Speed Cast Iron Circulator Pump 115V 1/6HP
Taco 0012-MSF2-IFC 3 Speed Cast Iron Circulator Pump 115V 1/6HP
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
High-Flow Circulation for Large Hydronic Systems With the Taco 0012-MSF2-IFC
Move more water through high-demand hydronic systems with the TACO 0012-MSF2-IFC (0012-MSF2-IFC) 3-speed cast iron circulator. Designed for high-flow, low-head applications, this heavy-duty pump is a strong choice for large BTU boilers, primary boiler loops, and other closed-loop hydronic systems. Three speed settings let you fine-tune circulation to match system requirements, while the removable Integral Flow Check helps prevent unwanted gravity flow without requiring a separate check valve. The replaceable cartridge design also makes servicing easier without replacing the entire circulator.
Key Features
High-Flow Performance
The 0012 is built for systems that need substantial water movement without excessive head pressure. With up to 42 GPM of flow and 14 feet of head, it's well suited to large BTU boilers, primary loops, and other high-flow hydronic applications.
Three-Speed Control
Three operating speeds make it easier to match circulation to the actual needs of the system. Adjusting the pump helps fine-tune performance while avoiding unnecessary flow and energy use.
Built-In Flow Check
The removable Integral Flow Check helps prevent gravity and reverse flow when the circulator isn't operating. Because the check is built into the pump, there's no need to add a separate in-line flow check, which can simplify piping and reduce installation costs.
Service-Friendly Cartridge Design
The replaceable cartridge contains the circulator's moving components, allowing the pump to be serviced without replacing the entire unit. Its self-lubricating design and lack of a mechanical seal also help minimize routine maintenance.
Product Details
- High-flow low-head circulation
- Three-speed operation
- Up to 42 GPM flow
- Up to 14 ft of head
- Removable Integral Flow Check
- Replaceable cartridge
- Self-lubricating design
- No mechanical seal
- Heavy-duty cast iron construction
- 3-year limited warranty
For over 100 years, TACO has been innovating hydronic heating, cooling, and plumbing solutions, offering high-efficiency pumps, boiler accessories, and pipe fittings.
Additional Information
- Brand: TACO
- MPN: 0012-MSF2-IFC
- Product Type: 3-speed cast iron circulator
- Application: Closed-loop hydronic systems
- Horsepower: 1/8 HP
- Flow Range: 0-42 GPM
- Head Range: 0-14 ft
- Electrical: 115V 60 Hz 1 Phase
- Motor Speed: 3250 RPM
- Maximum Operating Pressure: 125 PSI
- Operating Temperature: 40-210°F
Check out our Recirculation Pumps Guide to understand how these systems work, compare different types, and find the right solution for your application.
Taco 0012-MSF2-IFC FAQ
How do I know if the Taco 0012 is the right size for my system?
The 0012 should be selected based on the system's required flow rate and total head loss rather than boiler size alone. Compare the system design point to the pump curve to make sure the circulator can deliver the required GPM at the required head without over-pumping.
What does the Integral Flow Check do?
The Integral Flow Check prevents unwanted gravity or reverse flow when the circulator isn't running. It eliminates the need for a separate in-line check valve and can simplify the piping arrangement.
Can the cast iron TACO 0012 be used for potable water?
No, the cast iron 0012-MSF2-IFC is intended for closed-loop hydronic applications. Taco offers stainless steel versions for open systems and potable water applications, making material selection important when choosing between models.
What is the advantage of the replaceable cartridge?
The cartridge contains the circulator's moving components, so the pump can be serviced without replacing the entire circulator body. This can reduce maintenance time and replacement costs over the life of the system.
Is the Taco 0012 a good choice for a primary boiler loop?
Yes, the 0012 from TACO is specifically designed for applications such as primary boiler loops where high flow and relatively low head are required. Its three-speed operation also provides flexibility when fine-tuning circulation to the boiler system.
| Weight | 14.0 lb |
|---|---|
| Height | 8.50 in. |
| Horse Power | 1/3 |
| Length | 9.00 in. |
| Room | Utility |
| Voltage | 115V |
| Width | 5.50 in. |
| Inventory Number | TAC0012MSF2IFC |
| MPN | 0012-MSF2-IFC |
