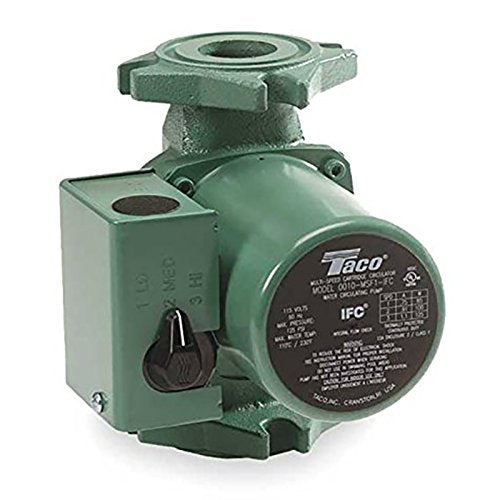

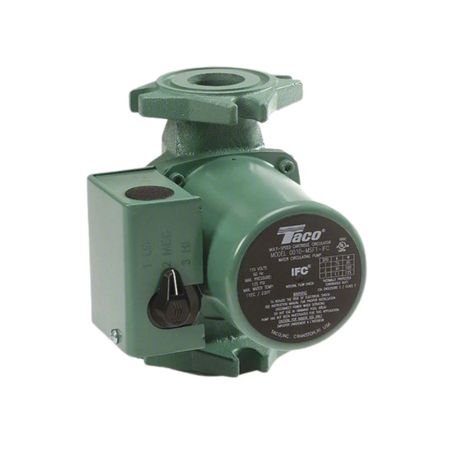

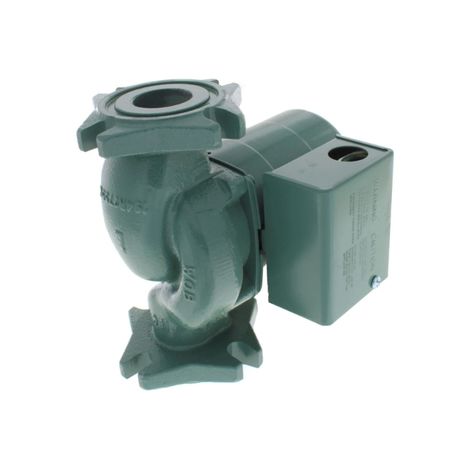

Fine-Tune Your Hydronic System With the Taco 0010-MSF2-IFC 3-Speed Circulator

Get flexible, reliable circulation for hydronic heating systems with a pump designed to handle a wide range of applications. The Taco 0010-MSF2-IFC (0010-MSF2-IFC) is a 1/20 HP cast iron circulator with three speed settings, allowing installers to fine-tune flow to match system requirements. Its removable Integral Flow Check helps prevent unwanted gravity flow while eliminating the need for a separate in-line check valve. With a replaceable cartridge, self-lubricating design, and universal four-bolt flange, it's a dependable service pump for residential and light commercial systems.

Key Features

Three-Speed Flexibility

Choose from three speed settings to fine-tune circulation for the system instead of being locked into a single flow rate. This makes the pump especially useful when replacing an existing circulator or adjusting system performance.

Built-In Flow Control

The removable Integral Flow Check helps prevent gravity flow and reverse circulation while eliminating the need for a separate in-line check valve. It also helps reduce installation costs and pressure loss.

Easy Service and Maintenance

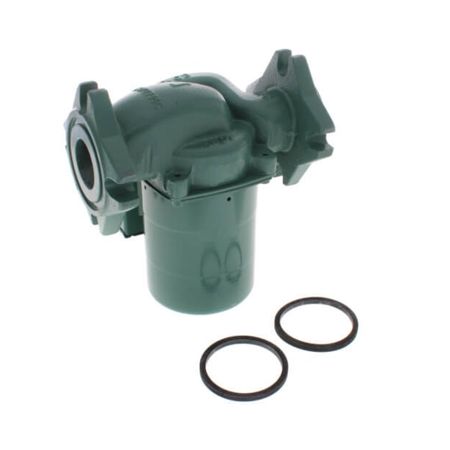

The replaceable cartridge contains the pump's moving components, making field service straightforward without replacing the entire circulator. A self-lubricating design and lack of a mechanical seal also reduce routine maintenance.

Universal Replacement Design

The 0010's four-bolt universal flange makes it a versatile replacement option for many existing circulators. Its broad application range covers hydronic heating, radiant systems, hydro-air fan coils, indirect water heaters, and more.

Product Details

• 3-speed switch lets installers fine-tune circulation to system requirements
• Integral Flow Check helps prevent gravity flow and reverse circulation
• Universal four-bolt flange simplifies compatible circulator replacements
• Up to 31 GPM flow handles a wide range of residential and light commercial applications
• Up to 11 ft. of head provides dependable circulation for medium-head systems
• Replaceable cartridge design makes field service faster and easier
• Self-lubricating design eliminates routine lubrication
• No mechanical seal means fewer components to maintain
• Heavy-duty cast iron construction provides durable performance
• 3-year manufacturer warranty

For over 100 years, TACO has been innovating hydronic heating, cooling, and plumbing solutions, offering high-efficiency pumps, boiler accessories, and pipe fittings.

Additional Information

• Brand: Taco
• MPN: 0010-MSF2-IFC
• Series: 00 Series
• Product Type: 3-speed cast iron circulator pump
• Application: Hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, and domestic water systems
• Material: Cast iron
• Horsepower: 1/20 HP
• Maximum Flow: 31 GPM
• Maximum Head: 11 ft.
• Connection Type: Flanged
• Connection Sizes: 3/4", 1", 1-1/4", and 1-1/2"
• Electrical: 115V, 60 Hz, 1 Phase
• Maximum Working Pressure: 125 PSI

Check out our Recirculation Pumps Guide to understand how these systems work, compare different types, and find the right solution for your application.

Taco 0010-MSF2-IFC FAQ

What is the Taco 0010-MSF2-IFC used for?

The Taco 0010-MSF2-IFC is a versatile circulator designed for hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, and other circulating water applications. Its three-speed motor makes it particularly useful when flow needs to be adjusted to match the requirements of an existing or new system.

How does the Integral Flow Check work on the Taco 0010?

The Integral Flow Check prevents unwanted gravity flow and reverse circulation through the pump when it isn't running. Because the check valve is built into the circulator, it can eliminate the need for a separate in-line flow check and reduce pressure loss through the system.

How do I know if the Taco 0010 is the right size circulator?

The Taco 0010 should be selected based on the system's required flow rate and total head loss rather than horsepower alone. Its performance reaches up to 31 GPM and 11 feet of head, so the pump curve should be matched to the actual piping, fittings, heat exchangers, and other resistance in the system.

If you have questions or need help choosing a circulator, then the Plumbing Deals team can help! Use the live chat feature, email at contact@plumbingdeals.com, or give us a call at 888-682-5956!

Does the Taco 0010-MSF2-IFC require regular maintenance?

The Taco 0010 is designed for maintenance-friendly operation with self-lubricating components and no mechanical seal. If service is eventually required, its replaceable cartridge allows the moving components to be replaced without replacing the entire circulator.

Can the Taco 0010-MSF2-IFC be used for domestic water recirculation?

Yes, Taco lists domestic water systems and domestic hot water recirculation among the applications for its 00 Series IFC circulators. Because this model has a cast iron casing, the specific water chemistry and application should be confirmed before using it in a potable water system.

Weight	10.0 lb
Height	6.90 in.
Horse Power	1/3
Length	7.20 in.
Room	Utility
Width	6.10 in.
Inventory Number	TAC0010MSF2IFC
MPN	0010-MSF2-IFC
