Reliable High-Flow Circulation for Hydronic Systems With the Taco 0010-F3 — 1 pack

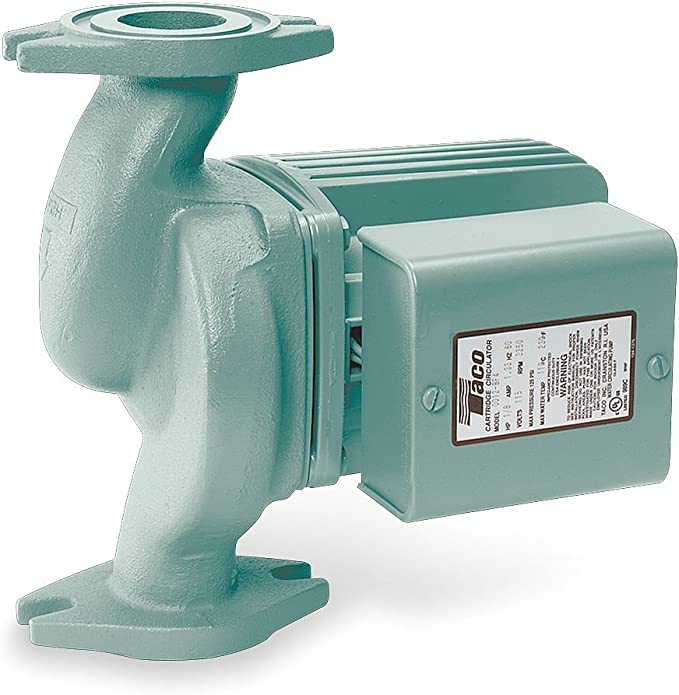

Built for large residential and light commercial systems, the Taco 0010-F3 (0010-F3) is a dependable 1/8 HP cast iron circulator designed for medium-flow, medium-head applications. Its compact direct-drive design provides up to 30 GPM of circulation and 11.5 feet of head, making it a versatile choice for hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, and other circulating water applications. The replaceable cartridge contains all of the pump's moving parts, so the circulator can be serviced without replacing the entire unit. With quiet operation, low power consumption, and universal flange-to-flange dimensions, the 0010-F3 is a practical long-term choice for both new installations and compatible replacements.
Key Features
High-Flow Circulation
The 0010-F3 is designed for applications that need more circulation capacity than smaller residential pumps can provide. With up to 30 GPM of flow and 11.5 feet of head, it's well suited to larger hydronic heating systems, radiant applications, and primary-secondary loops.
Field-Serviceable Cartridge
The replaceable cartridge contains all of the circulator's moving components, allowing the pump to be serviced instead of replacing the complete circulator. This design can simplify maintenance and help extend the useful life of the pump.
Quiet Direct-Drive Operation
The compact direct-drive motor provides dependable circulation while keeping power consumption low. Self-lubricating components and the absence of a mechanical seal help minimize routine maintenance while supporting quiet, reliable operation.
Flexible System Applications
The 0010-F3 can handle a broad range of residential and light commercial circulating applications, including hydronic and radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and compatible hot water systems. Its universal flange-to-flange dimensions also make it a practical replacement option for compatible existing installations.
Product Details
- 1/8 HP permanent split capacitor motor
- Up to 30 GPM flow
- Up to 11.5 ft of head
- 115V single-phase electrical
- 1.1A maximum current
- 3250 RPM motor speed
- Cast iron construction
- Flanged connections
- Universal flange-to-flange dimensions
- Replaceable field-serviceable cartridge
- Self-lubricating operation
- No mechanical seal
- Quiet direct-drive design
- Low power consumption
- Indoor use
- 3-year manufacturer warranty
For over 100 years, TACO has been innovating hydronic heating, cooling, and plumbing solutions, offering high-efficiency pumps, boiler accessories, and pipe fittings.
Additional Information
- Brand: Taco
- MPN: 0010-F3
- Multipack: 1 pack
- Product Type: Cast iron circulator pump
- Application: Residential and light commercial water circulation
- Horsepower: 1/8 HP
- Flow Range: 0-30 GPM
- Head Range: 0-11.5 ft
- Electrical: 115V 60 Hz 1 Phase
- Amperage: 1.1A
- Motor Speed: 3250 RPM
- Maximum Working Pressure: 125 PSI
- Fluid Temperature: 40-230°F
- Connections: 3/4 1 1-1/4 and 1-1/2 in flanged
- Construction: Cast iron casing stainless steel cartridge ceramic shaft and non-metallic impeller
Check out our Recirculation Pumps Guide to understand how these systems work, compare different types, and find the right solution for your application.
Taco 0010-F3 FAQ
What is the Taco 0010-F3 used for?
The Taco 0010-F3 is a medium-flow, medium-head circulator for residential and light commercial water circulation. Common applications include hydronic and radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and other compatible circulating water systems.
How do I know if the Taco 0010-F3 is the right size for my system?
Pump selection should be based on the system's required flow rate and total head loss rather than horsepower alone. The 0010-F3 provides up to 30 GPM and 11.5 feet of head, so compare those performance requirements with the system curve before choosing it. If the system needs significantly more head or less flow, another Taco circulator may be a better match.
What is the benefit of the Taco 0010-F3's replaceable cartridge?
The replaceable cartridge contains the circulator's moving parts, allowing those components to be serviced without replacing the entire pump body. For contractors and homeowners maintaining an existing hydronic system, that can make future repairs more straightforward and reduce replacement costs.
Can the Taco 0010-F3 be used for potable water?
The cast iron 0010-F3 isn't the preferred Taco model for open-loop freshwater applications. Taco's stainless steel 0010 models are designed for open-loop freshwater systems, while the cast iron version is generally selected for closed-loop hydronic applications where the system fluid is compatible with cast iron.
How can I tell if this Taco circulator will replace my existing pump?
Don't rely on connection size alone when choosing a replacement. Compare the existing pump's flow and head requirements, flange configuration, electrical specifications, operating temperature, and application to the 0010-F3.
If you have questions or need assistance sizing your pump, then the Plumbing Deals team can help! Use the live chat feature, email at contact@plumbingdeals.com, or give us a call at 888-682-5956!
| Weight | 10.0 lb |
|---|---|
| Height | 7.00 in. |
| Length | 6.00 in. |
| Room | Utility |
| Width | 8.00 in. |
| Inventory Number | TAC0010F3 |
| MPN | 0010-F3 |
