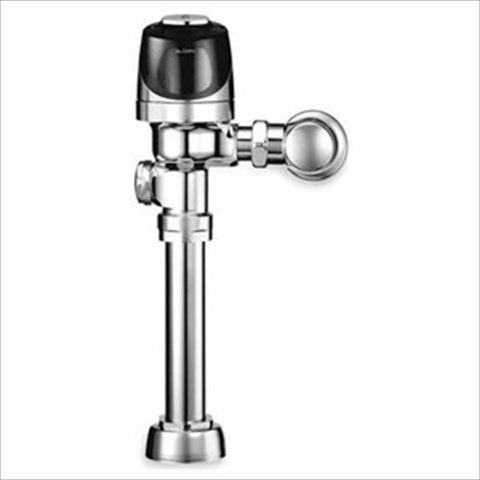

• ADA-compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Adjustable tailpiece to accommodate different height requirements
• High copper, low zinc brass castings for dezincification resistance
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037.
• Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
• Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance
• Low Battery Flashing LED
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flex Tube Diaphragm designed for improved life and reduced maintenance
• Engineered Metal Cover with replaceable Lens Window
• Four (4) Size AA batteries included
• Courtesy Flush Override Button
• 3?4 I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
• PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• Flush Volume: 1.0 gpf
• Battery Life: 6 years
• Valve: Diaphragm
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2"
• Spud Coupling: 3/4"
• Supply Pipe: 3/4"
• Product Specifications

Weight	8.0 lb
Height	in.
Length	in.
Type	Flush Valves
Width	in.
Inventory Number	SLOG281861
MPN	3250401
