CODE NUMBER

3080853

DESCRIPTION

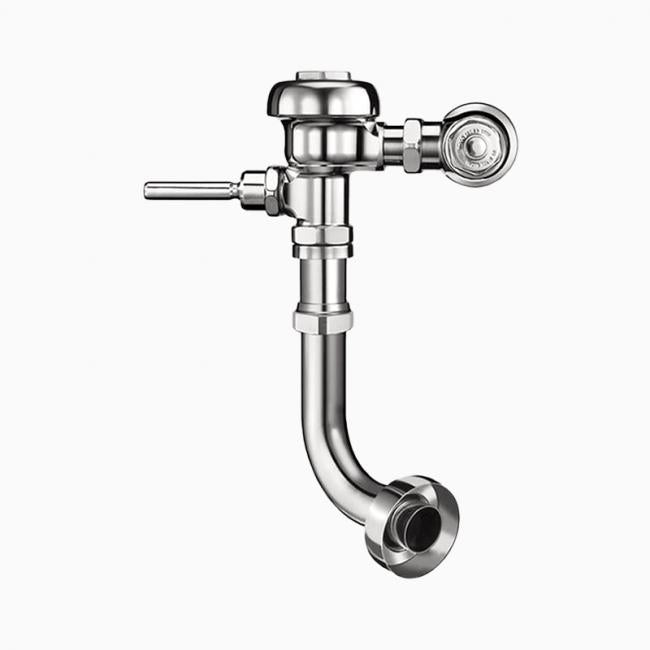

3.5 gpf, Polished Chrome Finish, Fixture Connection Rear Spud, Single Flush, Regal Exposed Manual Water Closet Flushometer.

DETAILS

• Flush Volume: 3.5 gpf (13.2 Lpf)

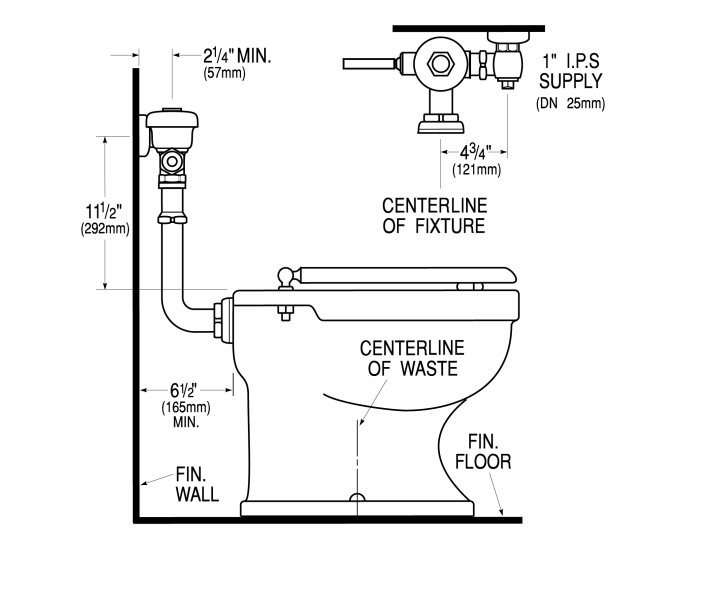

Finish: Polished Chrome (CP) Valve: Diaphragm Valve Body Material: Semi-red Brass Fixture Type: Water Closet Fixture Connection: Rear Spud Rough-In Dimension: 11 ½" (292mm) Spud Coupling: 1 ½" (38mm) Supply Pipe: 1" (25mm)

FEATURES

• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• 1” I.P.S. Screwdriver Bak-Chek Angle Stop
• Control Stop Plug
• Sweat Solder Adapter with Cover Tube
• Cast Wall Flange with Set Screw
• Vacuum Breaker Flush Connection
• Spud Coupling and Spud Flange for 11?2” Back Spud
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
• Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance

Weight	7.66 lb
Collection	Regal
Height	in.
Horse Power	1/3
Length	in.
Type	Parts & Accessories
Width	in.
Inventory Number	SLO120XL
MPN	3080853
