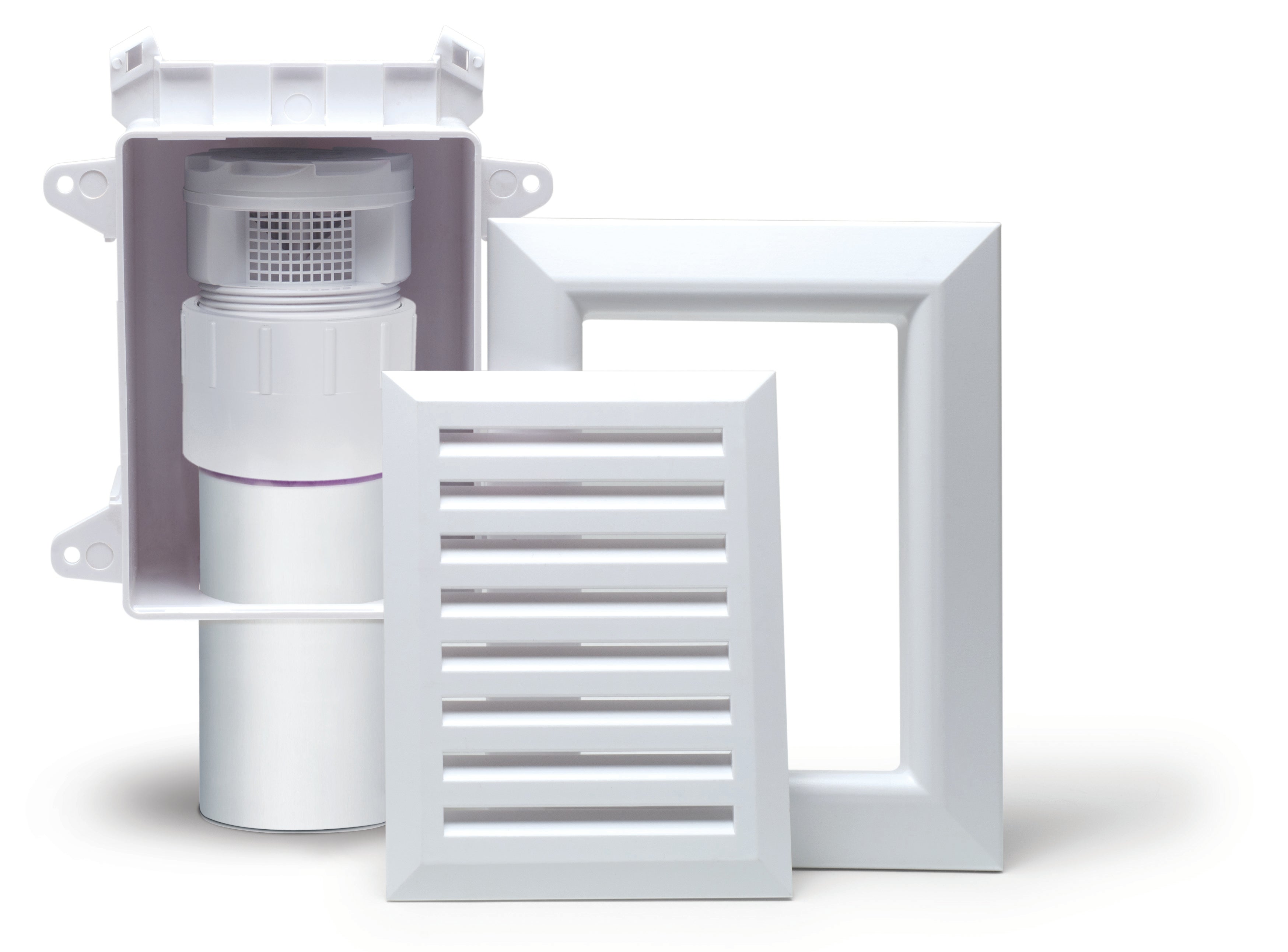

Sioux Chief 696 series TurboVent air admittance valves with access box shall be installed as vent terminal for secondary venting within the plumbing system. Valve shall connect to DWV system via Sch. 40 adapter which complies with ASTM D2665 (PVC) or D2661 (ABS), and be made accessible after finish wall is installed. Valve shall incorporate an actuating device which spins upon activation to keep the elastomeric sealing surface clean and free of debris. During drainage, actuating device shall raise a designed distance under negative line pressure to allow optimal air flow into the DWV system
Install upright/vertically, in accessible locations only
Seal threads with PTFE tape - Do Not use pipe dope
DWV Connection adapter included
Internal actuating device spins with each activation, keeping the seal free of dust and debris
Valve opens during drainage, and seals tight - up to 13 PSIG of back-pressure

Weight	0.88 lb
Certifications	ASSE 1050, ASSE 1051
Collection	TurboVent
Connection Size	2 in.
Height	7.25 in.
Inlet Size	2 in.
Length	5.75 in.
Material	PVC
Type	Air Admittance Valves
Width	2.38 in.
Inventory Number	SIO69612P
MPN	696-12P

• Spec Sheet
