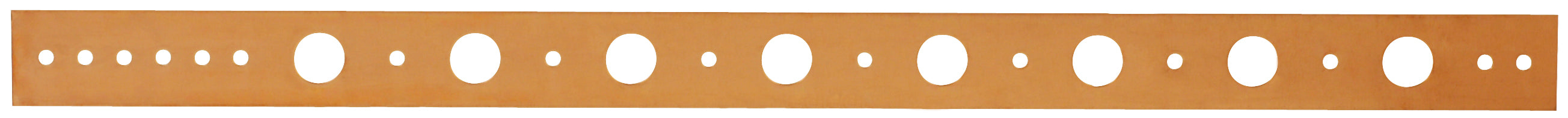

Sioux Chief's copper plated stub out bracket shall be used where necessary to support 1/2, 3/4 or 1 in nominal copper stub outs for water supply lines. Holes for positioning copper tube shall be located on 2 in or 4 in center lines depending on model number. Bracket shall be produced from cold-roll steel, copper plated and include aprotective water based clear coat finish to minimize surface rust when arriving at jobsite. Depending on model number, bracket may feature extruded holes, providing a wider soldering surface. Bracket may also feature rolled edges to provide additional strength.
If soldering, Heat the tube, not the bracket
Galvanized models for use with PipeEye or other metal stud insulators.
25 lb. Load rating

Weight	0.35 lb
Certifications	IAPMO PS 42
Height	1.25 in.
Length	20.00 in.
Material	Metal
Type	Parts & Accessories
Width	0.10 in.
Inventory Number	SIO521118
MPN	521-118
