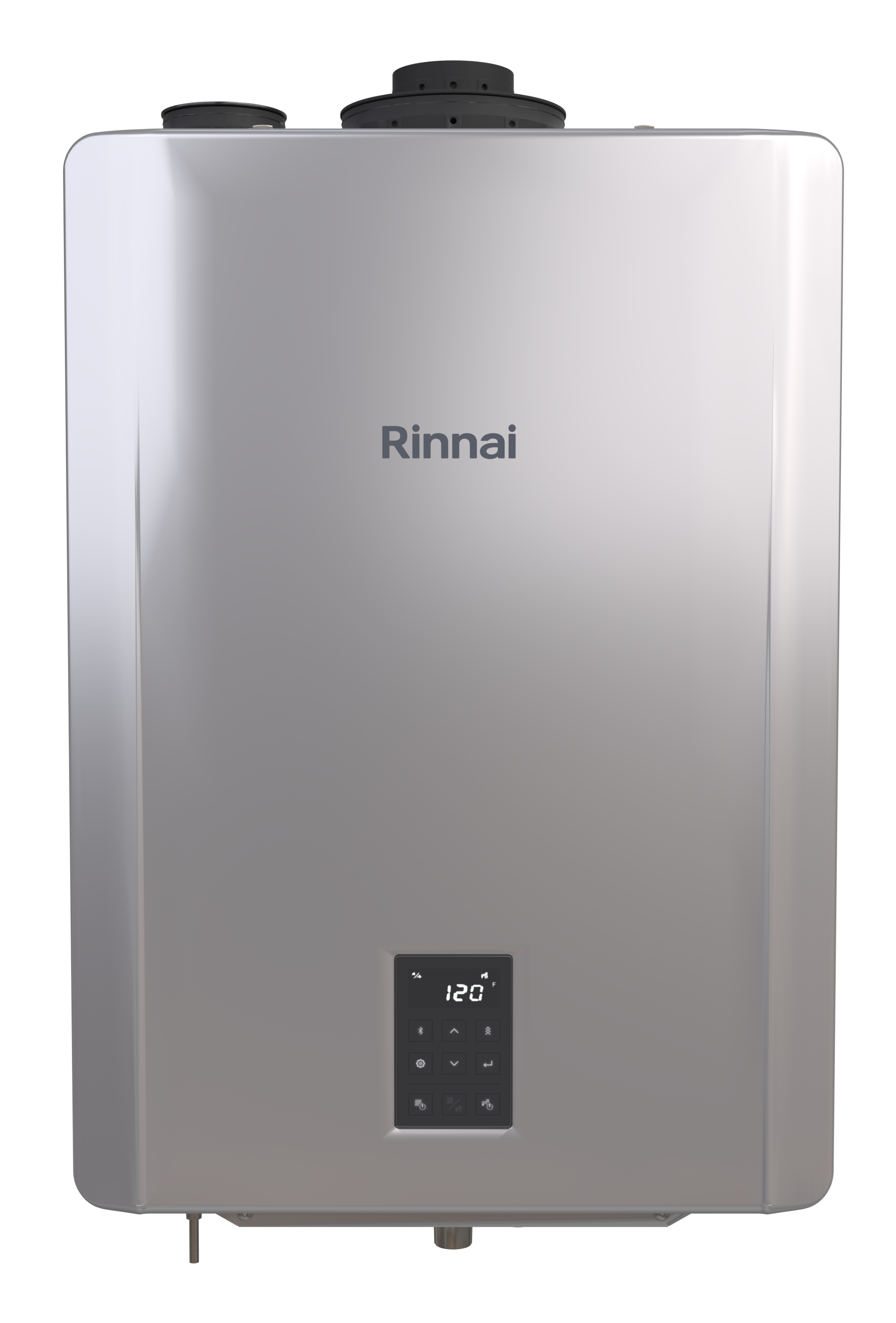

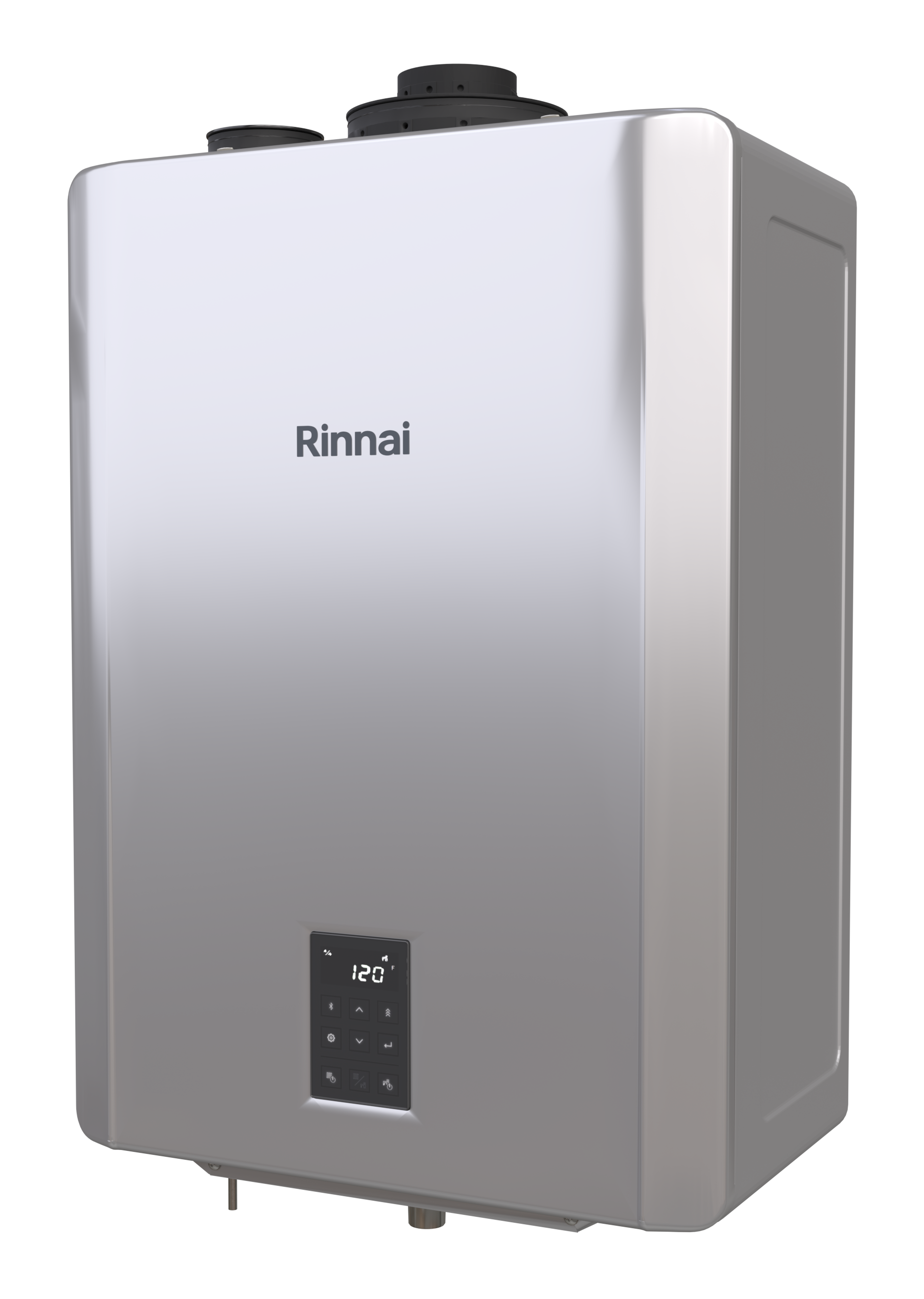

I-SERIES Plus line of Combi Condensing Gas Boilers offers unmatched value and performance with an expanded product line that features Smart Sense Adaptive Gas Valve technology. Combi Boiler CH 90k / DHW 160k, NG

Features and Benefits

• Smart Sense Gas Adaptive Technology
• Smart Connect - WIFI Remote Access and Bluetooth with Rinnai Central App
• 7 Heating Reset Curves
• High Altitude Approved up to 10,100 ft.
• Advanced Controls with Quick Set-Up Screen
• Improved Front Panel Display

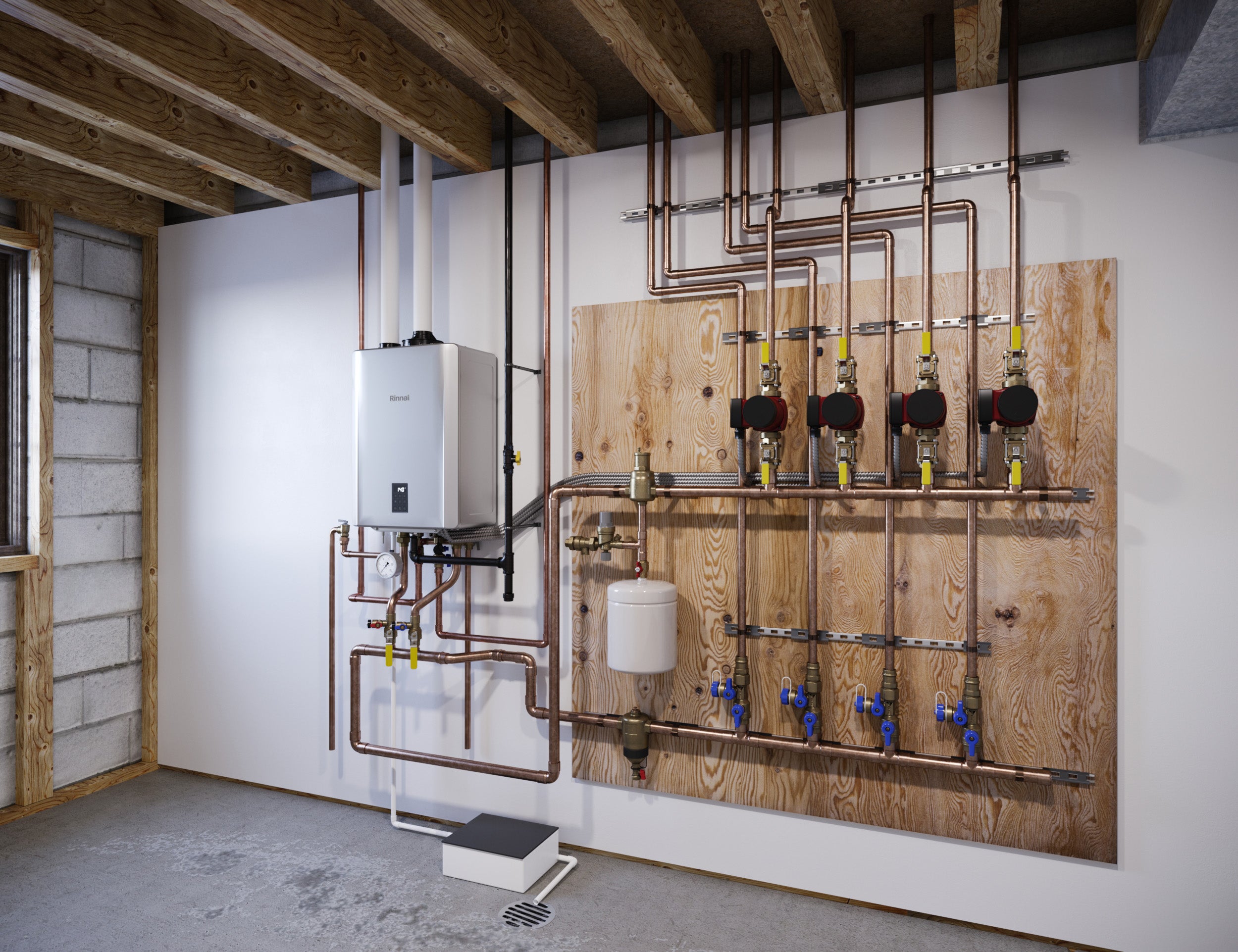

• 4 Built-in Zones
• Simultaneous Space Htg and DHW
• Smart Sense Gas Adaptive Technology
• Call 833-805-0435 for factory direct installation assistance in your area

Product Specifications

• MAX BTU Capacity: 90000
• Fuel Type: Natural Gas or Liquid Propane
• Voltage: AC 120 Volts, 60 Hz
• Ignition Type: Direct Electronic Ignition
• Venting Type: Concentric, Twin Pipe, Room Air
• Flow Rate (GPM): 0.26 to 7.9
• Temperature Range: 98-140
• Storage Capacity: 0.75 Gallons / (2.8 L)
• Gas Connection: 3/4" MNPT
• Water Connection: 3/4" MNPT
• Condensate Connection: 1/2" NPT
• Recirculation Capable: Yes
• Wifi Capable: Yes

Weight	68.3 lb
Collection	I Series Plus C
Height	30.11 in.
Horse Power	1/3
Length	11.50 in.
Type	Water Heater Combination Boilers
Width	18.50 in.
Inventory Number	RINIP090160C
MPN	IP090160C

• User Manual
• Installation Instructions
• Conversion Manual
