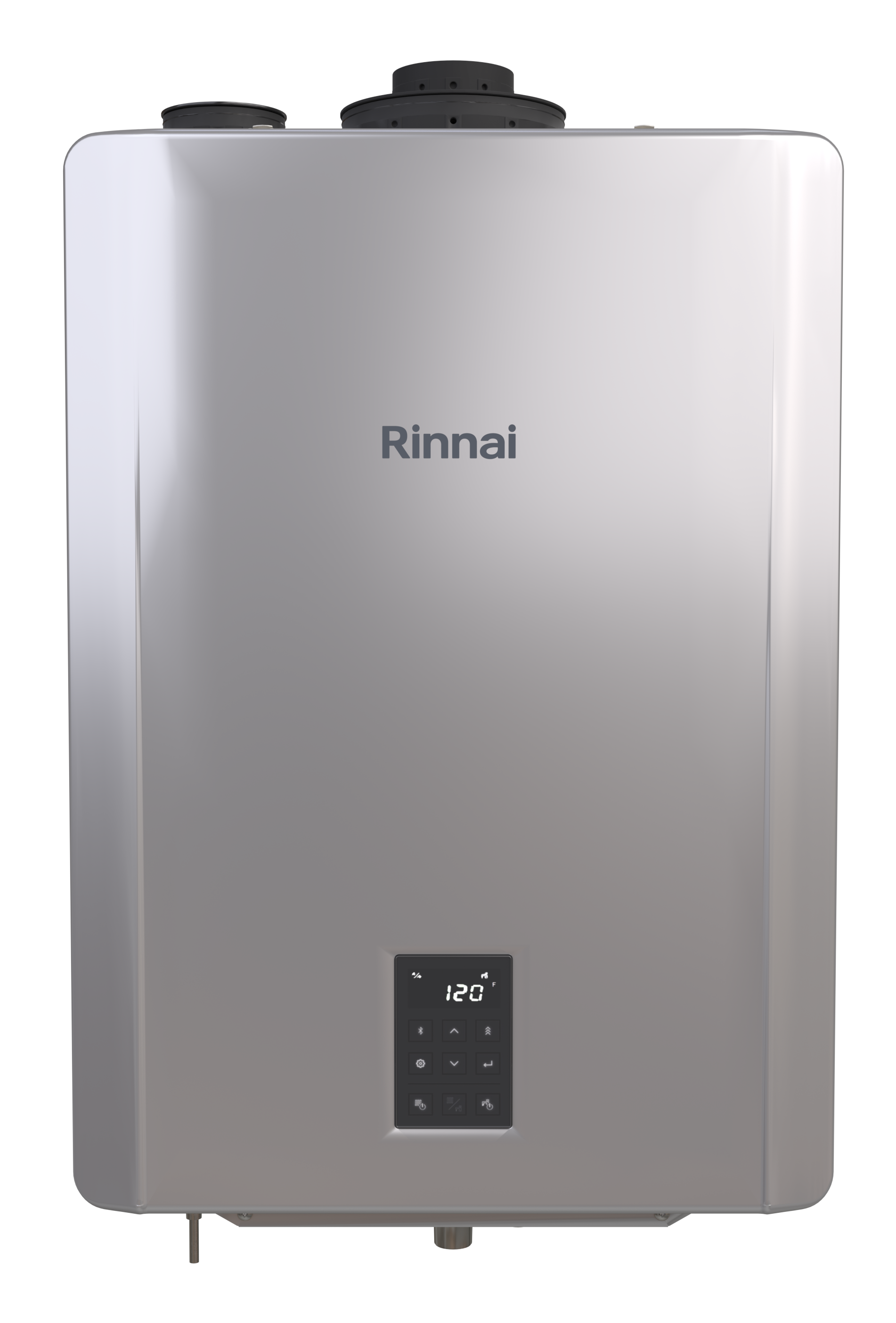

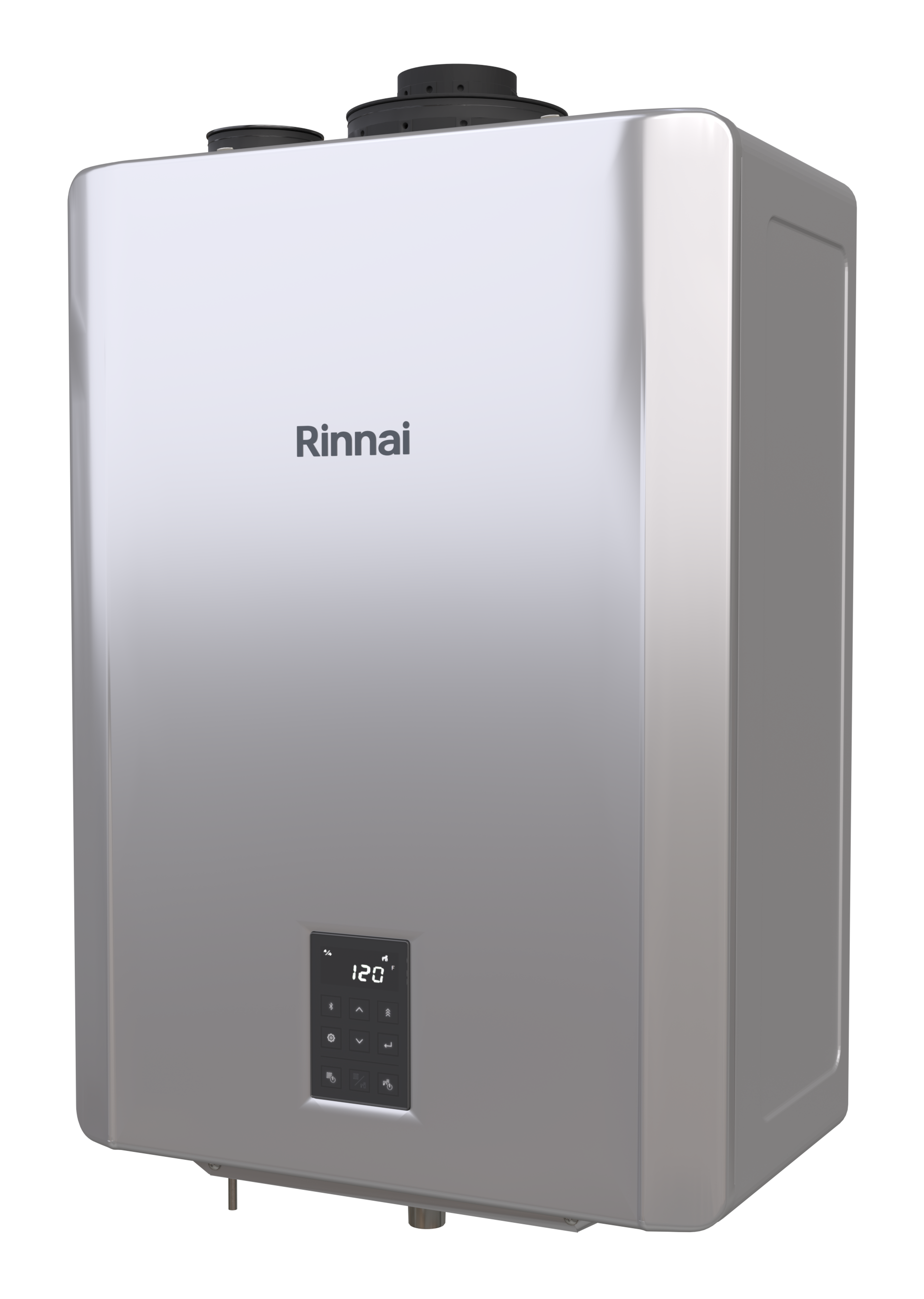

I-SERIES Plus line of Solo Condensing Gas Boilers offers unmatched value and performance with an expanded product line that features Smart Sense Adaptive Gas Valve technology. Solo Boiler CH 150k, NG

Features and Benefits

• Smart Sense Gas Adaptive Technology
• Smart Connect - WIFI Remote Access and Bluetooth with Rinnai Central App
• 7 Heating Reset Curves
• High Altitude Approved up to 10,100 ft.
• Advanced Controls with Quick Set-Up Screen
• Improved Front Panel Display
• 4 Built-in Zones
• Space Heating
• Common Venting up to 8 Units
• Smart Sense Gas Adaptive Technology
• Call 833-805-0435 for factory direct installation assistance in your area

Product Specifications

• MAX BTU Capacity: 150000
• Fuel Type: Natural Gas or Liquid Propane
• Voltage: AC 120 Volts, 60 Hz
• Ignition Type: Direct Electronic Ignition
• Venting Type: Concentric, Twin Pipe, Room Air
• Storage Capacity: 0.88 Gallons / (3.3 L)
• Gas Connection: 3/4" MNPT
• Condensate Connection: 1/2" NPT
• Recirculation Capable: No
• Wifi Capable: Yes

Weight	82.7 lb
Collection	I Series Plus
Height	30.11 in.
Horse Power	1/3
Length	11.50 in.
Width	18.50 in.
Inventory Number	RINIP150S
MPN	IP150S
