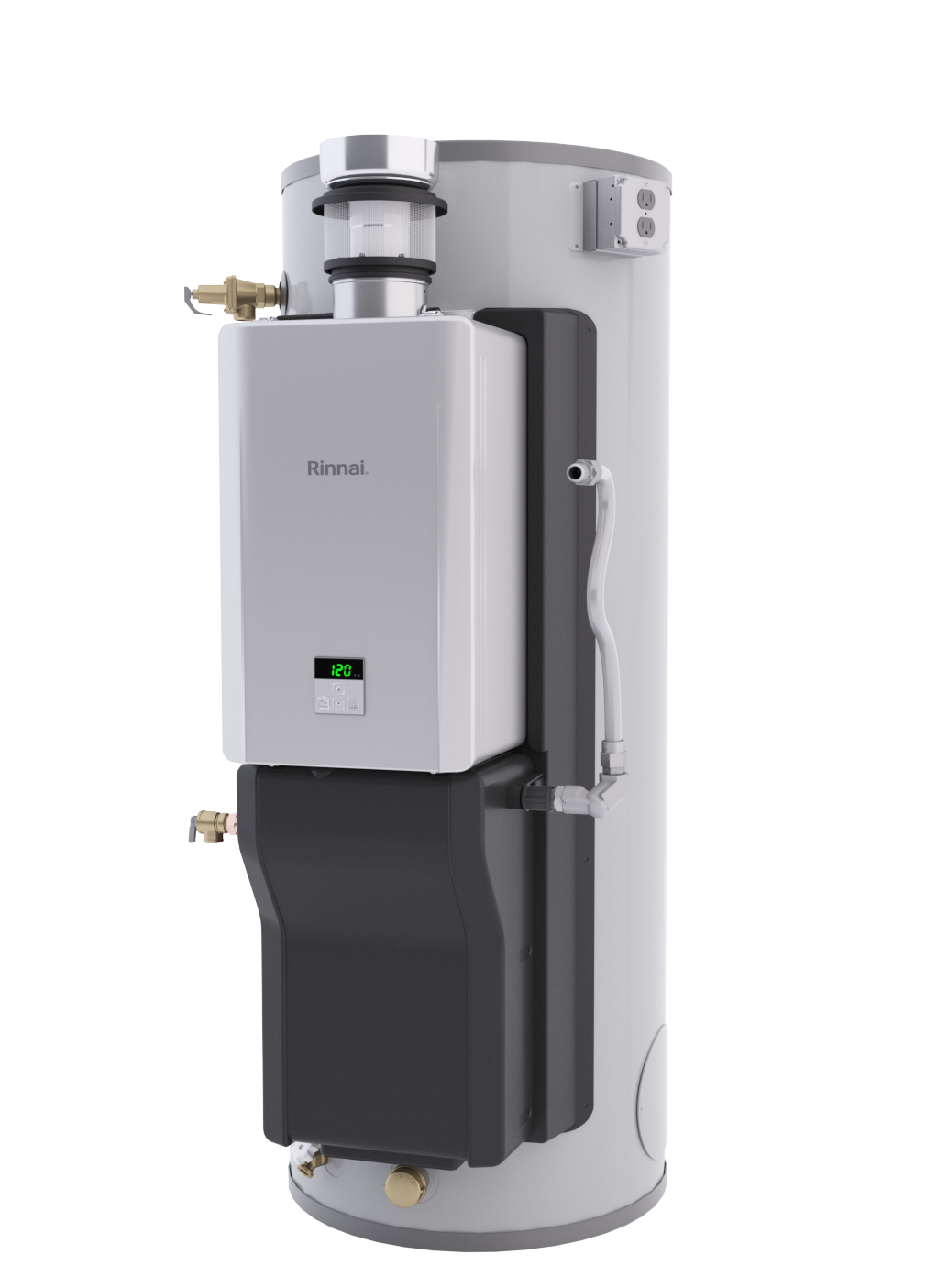

With more than 2X the warranty of most traditional tanks, and new features that simplify installation and boost performance, the new Demand Duo R-Series Commercial Hybrid Water Heating System is a better cost-effective alternative to standard efficiency tanks delivering unsurpassed performance that easily installs in apartments, hotels, restaurants and more! NO Thermal Stress, Extended Service Life, Integrated Pump Control, 100% Tank Capacity, 100-200 lbs. lighter than most tanks, and $250 estimated Installation savings provide unmatched performance and low cost of ownership.

Features and Benefits

• Hybrid Design uses 80 gallon tank and 199,000 BTU tankless unit to provide First Hour Delivery up to 249 gallons @ 100F
• Longer warranty - up to 2X longer than traditional tanks
• Optimized performance delivers abundant hot water even during peak hours
• Vent into 6" B Vent exhaust connector
• Tank-tankless design produces no thermal stress on tank, for longer life and reduced risk of downtime or leaks
• Reduce cost of ownership with low cost component repair vs replace entire traditional system
• Lighter weight for easier handling
• DuoSmart Digital Controller for temperature precision and recirculation control - no aquastat required
• Gas Swivel Flex Line rotates 360 allowing 36"-long, 180 radius to connect to gas supply line
• Call 833-805-0435 for factory direct installation assistance in your area

Product Specifications

• MAX BTU Capacity: 199,000
• Fuel Type: Natural Gas
• Voltage: AC 120 Volts, 60 Hz
• Ignition Type: Direct Electronic Ignition
• Venting Type: B-Vent
• Energy Efficiency: 80.0%
• Gas Connection: 3/4" MNPT
• Water Connection: 1-1/2" MNPT
• Recirculation Capable: Yes
• Wi-Fi Capable: Yes

Weight	450.0 lb
Collection	Demand Duo R Series
Height	65.25 in.
Horse Power	1/3
Length	35.60 in.
Room	Utility
Width	24.10 in.
Inventory Number	RINCHS19980RECIN
MPN	CHS19980RECIN

• Installation and Operation Manual
• Specification Sheet
• Performance Data
• Conversion Manual
• Rebate Flyer
