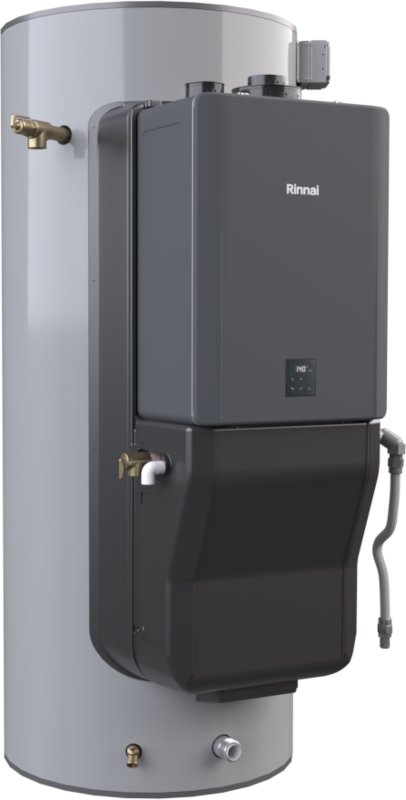

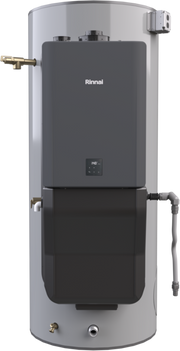

Rinnai CHS HCX Series 199,000 BTU Indoor Natural Gas Hybrid Water System with 119 Gallon Tank - CHS199100HCXIN
Rinnai CHS HCX Series 199,000 BTU Indoor Natural Gas Hybrid Water System with 119 Gallon Tank - CHS199100HCXIN
Hurry up, only 1 item left in stock..
Project Pricing
Get Accurate Project Pricing for Your Plumbing Needs
Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.
Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
Couldn't load pickup availability
High-Demand Commercial Hot Water with the Rinnai Demand Duo CHS H-Series
The Rinnai Demand Duo H-Series (CHS199100HCXIN) is a commercial hybrid water heating system that provides continuous, high-volume hot water. By combining a 119-gallon storage tank with a high-efficiency condensing tankless unit, it provides first-hour delivery, stable temperatures under peak load, and improved energy efficiency. With a total input capacity up to 199,000 BTU and advanced hybrid controls, the CHS system is designed to reduce recovery lag, minimize downtime, and maintain consistent output.
Key Features
Dual High-Efficiency Tankless System with Condensing Performance
Integrates two SENSEI CX199i condensing tankless water heaters into a pre-assembled rack system, delivering high-capacity commercial hot water output with up to ~10.8 GPM at a 70°F rise.
Built-In Cascade Control for Load Balancing & Redundancy
Intelligent system controls automatically stage and balance operation between both units, improving efficiency under partial loads while providing built-in redundancy to maintain hot water supply during service or maintenance.
Space-Saving Wall-Mounted Commercial Design
Low-profile aluminum rack construction allows for wall mounting, freeing valuable mechanical room floor space and simplifying installation in tight retrofit or equipment replacement scenarios.
Simplified Commercial Installation & Utility Connections
Standardized 1” water connections and 1-1/2” gas manifold design streamline tie-ins, reducing install complexity for contractors working in restaurant, hospitality, and light commercial applications.
For decades, Rinnai has been a trusted leader in high-efficiency water heating solutions. Their advanced tankless and heating systems are designed to deliver consistent hot water comfort while improving energy efficiency.
Product Details
- Commercial hybrid water heating system (tank + tankless combination)
- 119-gallon integrated storage tank
- Up to 199,000 BTU heating capacity
- Condensing tankless heating technology
- Designed for high-demand commercial applications
- Suitable for restaurants, hotels, gyms, and multi-unit buildings
- Built-in recirculation capability for improved hot water delivery times
- Indoor installation configuration
- Designed to reduce recovery time vs traditional tank systems
- Engineered for continuous commercial hot water demand
Additional Information
Brand: Rinnai
Model (MPN): CHS199100HCXIN
Series: Demand Duo H-Series (CHS HCX)
Storage Capacity: 119 Gallons
Recirculation: Yes
Warranty: 6 Years on Tank / 5 Years on Parts
Rinnai CHS199100HCXIN FAQ
What is the Rinnai CHS199100HCXIN used for?
The Demand Duo H-Series is designed for commercial hot water applications such as restaurants, hotels, gyms, and multi-unit buildings that require continuous high-volume hot water.
How does the CHS hybrid water heater system work?
The Rinnai CHS199100HCXIN combines a 119-gallon storage tank with a condensing tankless unit, allowing stored hot water for immediate use while the tankless system provides continuous recovery during demand.
Is the Rinnai Demand Duo H-Series system better than a traditional commercial water heater?
In many applications, yes. The hybrid design reduces recovery delays and helps maintain stable hot water delivery during peak usage compared to tank-only systems.
What size facilities is this system suitable for?
It's typically used in medium to large commercial environments where multiple fixtures may operate simultaneously and consistent hot water availability is required.
Does the Rinnai CHS system improve energy efficiency?
Yes, the condensing tankless component improves overall thermal efficiency by recovering more heat from combustion gases compared to traditional storage-only systems.
| Weight | 450.0 lb |
|---|---|
| Certifications | Energy Star, AHRI, ANSI Z21.10.3, CSA 4.3 |
| Collection | CHS-HCX Series |
| Connection Size | 1-1/2 in. |
| Connection Type | Threaded |
| Fuel Type | Natural Gas |
| Height | 69.60 in. |
| Horse Power | 1/3 |
| Inlet Size | 1-1/2 in. |
| Installation Type | Free Standing |
| Length | 40.20 in. |
| Room | Utility |
| Vent Type | Atmospheric |
| Voltage | 120 V / 60 Hz |
| Width | 24.10 in. |
| Inventory Number | RINCHS199100HCXIN |
| MPN | CHS199100HCXIN |
| BTU | 199,000 |
