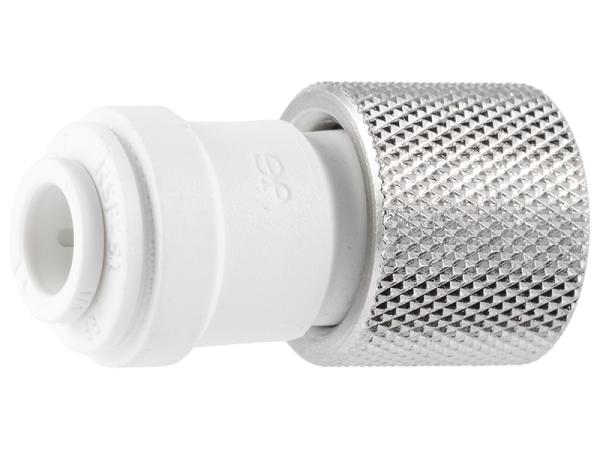

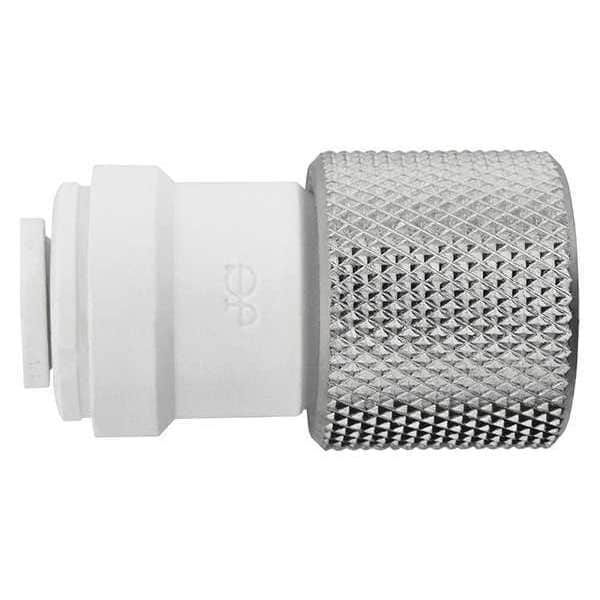

This fitting is used for connecting to 9/16-24 UNEF (3/8 compression) male threads. JG Push-fit technology makes connecting tubing quick and easy. Fittings are manufactured in white polypropylene with food grade EPDM O-ring. These fittings have been developed to satisfy the filtered pure water market and wide range of applications.

• For use with plastic or copper OD sized tubing
• Polypropylene body, EPDM O-ring
• Quick and easy connection/disconnection
• Lead free materials
• For use with 9/16-24UNEF (3/8 compression) threads
• Food Quality, suitable for potable liquids and pure water
• NSF51 and NSF61 listed
• Max. 150 psi at 70 degrees F
• Max. 60 psi at 140 degrees F

Weight	0.3 lb
Collection	John Guest
Connection Type	Threaded
Finish	White
Height	1.34 in.
Length	0.71 in.
Type	PVC Fittings
Width	0.71 in.
Inventory Number	JOHNPP6008U9W
MPN	PP6008U9W-US
