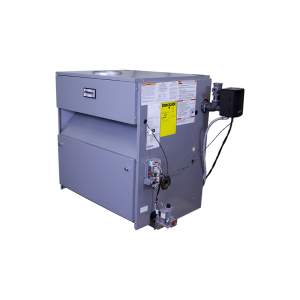

The 15C is available in two sizes from 262 MBH to 299 MBH and is designed for chimney-vent applications. With an efficiency of 84.0% AFUE, the latest design features a Hydrolevel FuelSmart control that monitors water temperature and delays burner start until residual heat has been transferred to the system for maximum efficiency. An integral Draft Hood and Automatic Vent Damper reduces the overall height and footprint of the boiler making it ideal for low clearance/space limited installations.

• 84% AFUE Efficiency: Energy saving features include the electronic ignition system and motorized vent damper to reduce heating costs.
• Exceptional Heat Exchanger Design: Features a dependable cast iron heat exchanger with cast iron push nipple connections. The sections and push nipples expand at the same rate when heated. By using similar materials instead of less expensive gaskets, the boiler maintains a water tight seal.
• Hydrolevel Operating Control: Adjusts the water temperature based on your heating system demand which further reduces your heating costs.
• Built-in low water cut-off (LWCO) to protect the boiler from potentially dangerous low water conditions.
• Integral Draft Diverter: Features factory installed integrated draft hood diverter which reduces the risk of improper draft hood installation and unsafe CO levels.
• Low profile diverter: Reduces installation height by up to 30" compared to models with an external draft diverter hood.
• Warranty: 10 Year Limited Heat Exchanger
• Water Return/Supply: 1 1/4" NPT
• Gas Inlet: 1/2" NPT
• 120 Volts AC, 60 hertz, 1 phase, less than 12 amps (15 amp circuit recommended)
• Options: Heat Pump, LP Conversion Kit
• 262,000 BTU Input
• 12.7 Gallon Capacity
• 7" Flue Diameter
• 7 Burners
• 60 Gallon Expansion Tank Recommended
• Product Brochure
• Installation and Operating Manual
• Parts List

Weight	552.0 lb
Height	36.38 in.
Horse Power	1/3
Length	26.50 in.
Width	27.50 in.
Inventory Number	PEN15C8D
MPN	15C-8D
