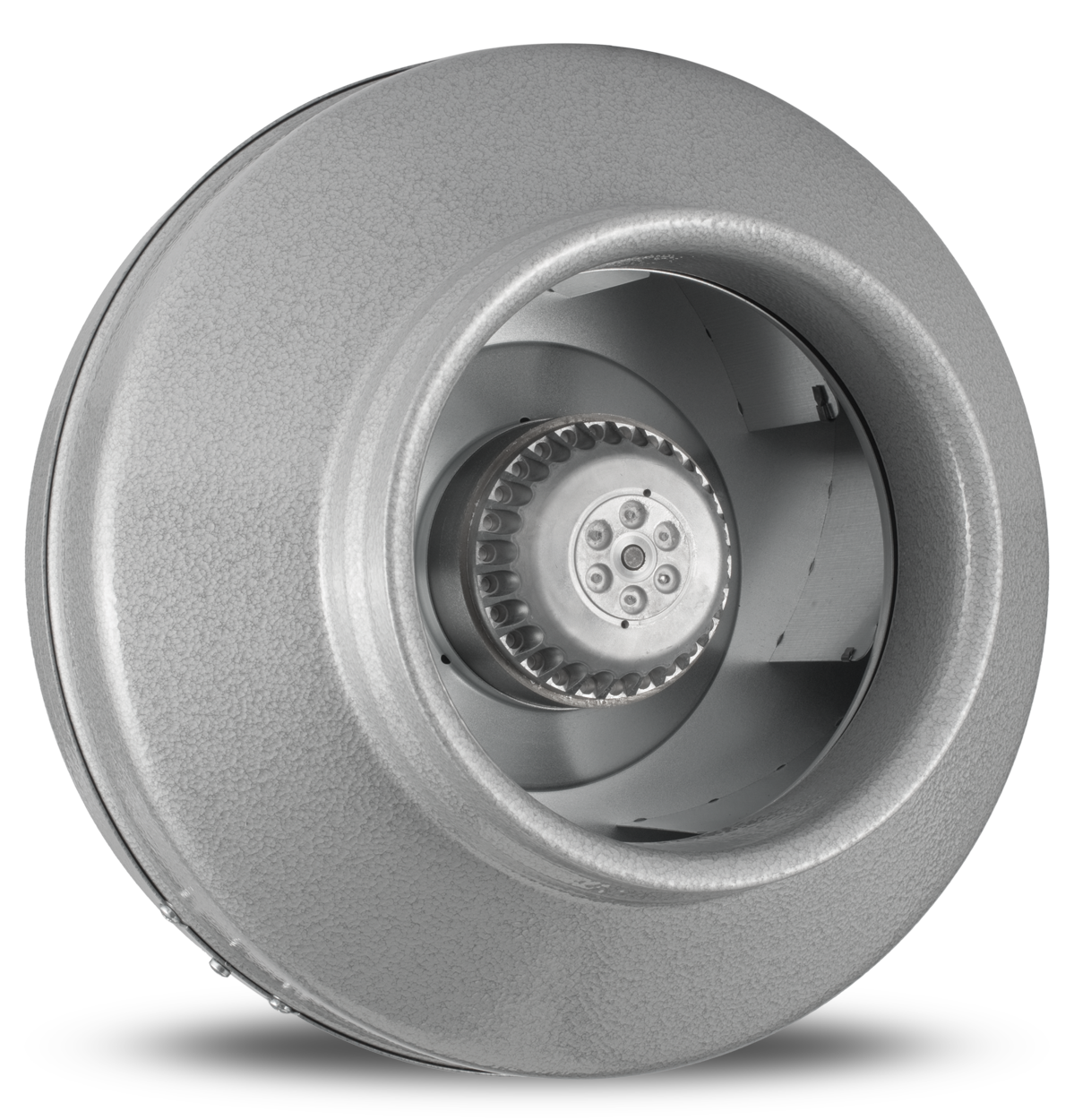

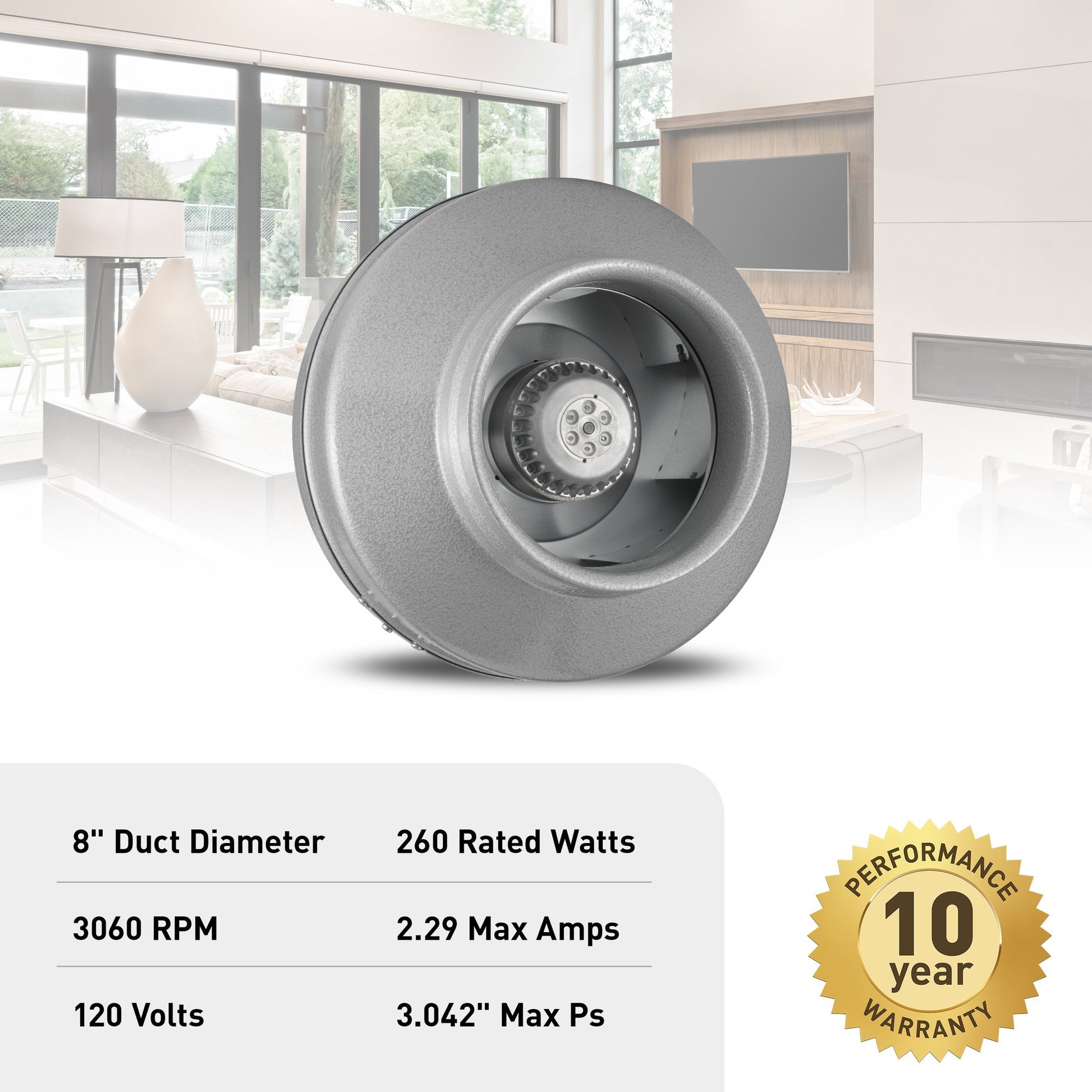

Panasonic Atmosphere Vortex VTX800 Centrifugal In-Line Duct Fan

The Panasonic Atmosphere Vortex VTX800 is a high-performance centrifugal inline duct fan designed to deliver strong, consistent airflow in systems with moderate to high static pressure. With airflow up to 681 CFM at 0.2 static pressure, this fan is well-suited for larger residential and light commercial ventilation applications.

Featuring a centrifugal impeller, the VTX800 is engineered to maintain airflow through restrictive ductwork, making it ideal for long duct runs and more complex ventilation layouts. Its inline design allows for flexible installation in ceilings, walls, or duct systems.

High Static Pressure Performance

The centrifugal design provides reliable airflow in higher-resistance duct systems, helping maintain consistent ventilation performance across longer or more demanding runs.

High-Capacity Airflow Output

Rated at 681 CFM at 0.2 static pressure, the VTX800 delivers strong airflow for mid-to-large spaces and systems requiring higher air movement.

Durable Construction

Built for long-term operation, the fan features a rugged housing designed to support continuous use in residential and light commercial environments.

Quiet and Efficient Operation

The motor is engineered to provide efficient airflow while minimizing vibration and noise, making it suitable for use in occupied spaces.

Flexible Installation

The inline configuration supports installation in ceilings, walls, or within duct systems, making it ideal for both retrofit and new construction applications.

Ideal Applications

• Long duct run ventilation systems
• Basements, attics, and crawl spaces
• Bathroom and kitchen exhaust systems
• Whole-home ventilation applications
• Inline booster for high-resistance ductwork

Weight	12.5 lb
CFM	681
Collection	Atmosphere Vortex
Height	13.00 in.
Horse Power	1/3
Length	15.00 in.
Room	Bathroom
Type	Bathroom Fans
Width	15.00 in.
Inventory Number	PANVTX800
MPN	VTX800

• Sell Sheet
• Submittal Sheet
• Installation Manual
