The Oatey Freestanding Tub Drain Kit removes the guesswork and complexity from installing a freestanding/island center or offset tub. Simply connect the drain to the DWV system from above the floor at rough-in -- only a 4 in. subfloor hole is needed. The compact, universally compatible drain works with brass or Schedule 40 tailpieces and easily connects to any plumbing configuration. Included in the kit are a pre-installed, tool-free quarter-turn leak test plug and an easy-to-grab protective cap to prevent drain tile-over. Oatey products have earned the trust of plumbing professionals for over 100 years.

• Drain kit for freestanding/island center and offset tubs
• Compact size offers design flexibility, as the drain fits into 8 in. joists in addition to 10 in. and 12 in. joists, requiring only a 4 in. opening
• Made of PVC and compatible with brass or Schedule 40 tailpieces
• Solvent welds directly to a 1-1/2 in. or 2 in. Schedule 40 drain pipe using the included adapter and Oatey cement and cleaner (sold separately)
• Once the connection has been made between the DWV system, drain body and subfloor, the tub can be dropped in with no additional steps required
• Includes 304 stainless steel asymmetrical flange
• Pre-installed, tool-free 1/4-turn test plug allows for testing up to 40 ft. of head

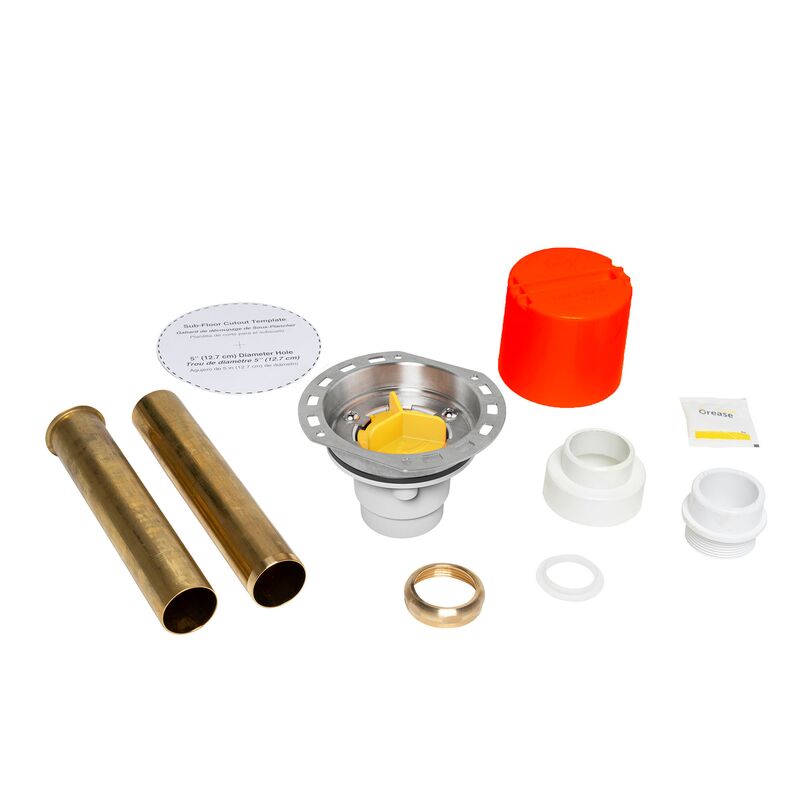

• Kit includes: Freestanding tub drain body, quarter-turn test plug, protective cap, 1-1/2 in. x 8 in. flanged brass tailpiece, 1-1/2 in. x 8 in. threaded brass tailpiece, slip joint nut, flanged tailpiece washer, 1-1/2 in. PVC Sch. 40 threaded tailpiece adapter, 1-1/2 in. x 2 in. PVC Sch. 40 adapter, cutout template and lubricant
• Eliminates stub out method and need for access below the floor, reducing time for and simplifying rough-in installation between P-trap and tub
• Easy-to-grab, high visibility protective cap keeps tile from being installed over the open drain and can be easily removed with or without tongue-and-groove pliers and a screwdriver
• Everything needed for quick, easy freestanding tub drain install

Weight	2.25 lb
Height	in.
Horse Power	1/3
Length	in.
Room	Bathroom
Sub Type	Drains
Type	Bathtub Parts & Accessories
Width	in.
Inventory Number	CHEMFTD5135
MPN	FTD5135
